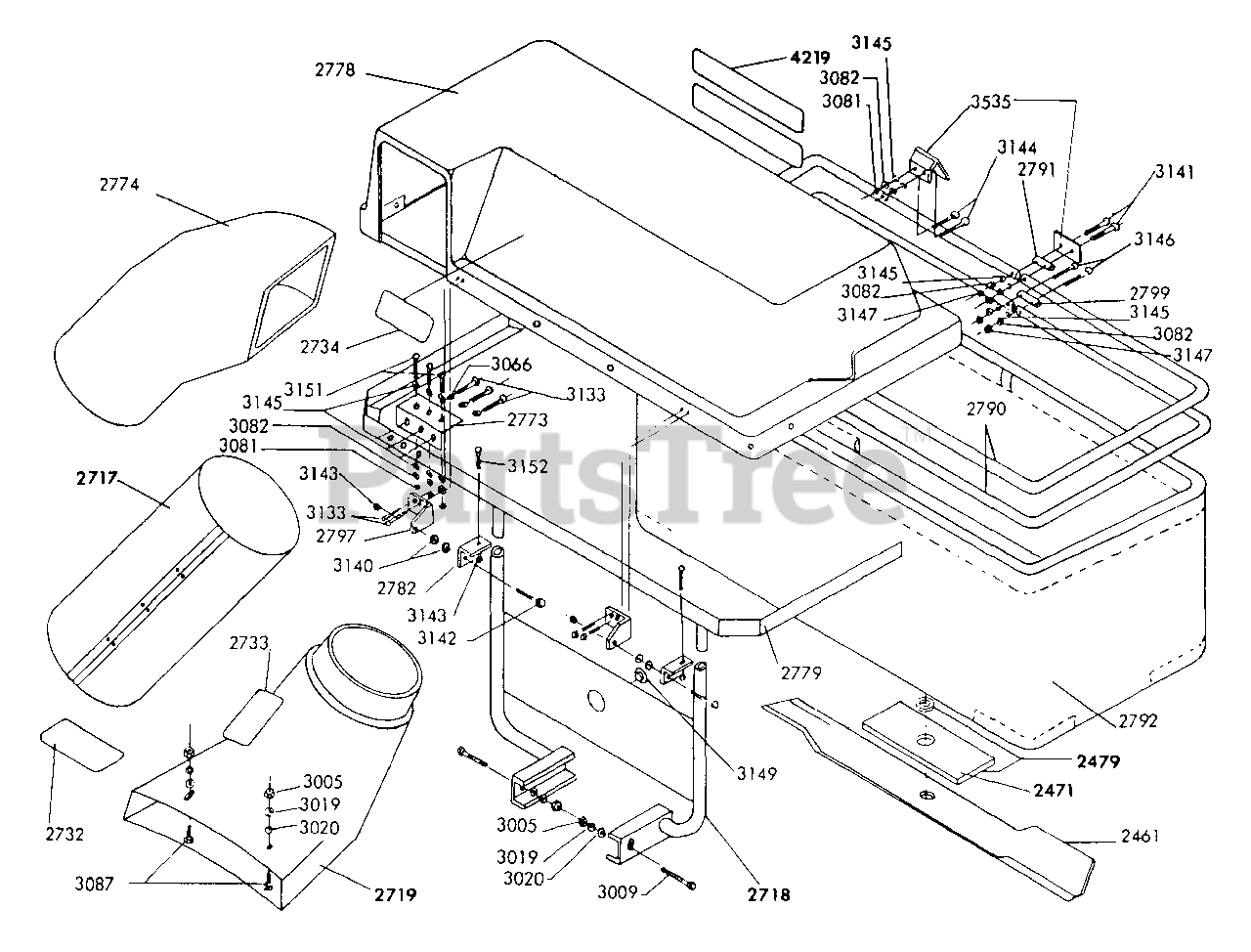

ZTR 426 - Dixon Zero-Turn Mower (1984) GRASS CATCHER ASSEMBLY 30" Parts Diagram

Zero-Turn Mower

GRASS CATCHER ASSEMBLY 30" Parts Diagram

  • Title
2461

2461

BLD 30HI LIFT GRS CAT

$

$

Not available

2471

2471

BLADE ADAPTER PLATE

$

$

Not available

2479

2479

BLADE ADAPTOR KIT

$

$

Not available

2717

2717

DISCHARGE TUBE ASSY

$

$

Not available

2718

Dixon 2718

G.C. MOUNT WELDMENT

$

$

Not available

2719

2719

DISCHARGE ADAP ASSY

$

$

Not available

2732

2732

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

2733

2733

G.C.WARNING DECAL

$

$

Not available

2734

2734

G.C.STABILITY DECAL

$

$

Not available

2773

2773

UPPER ADAPTOR HINGE

$

$

Not available

2774

2774

UPPER DISCHARGE ADAP

$

$

Not available

2778

2778

$

$

Not available

2779

2779

$

$

Not available

2782

2782

HINGE SECTION

$

$

Not available

2790

2790

$

$

Not available

2791

2791

BAG SUPPORT CONN-TOP

$

$

Not available

2792

Dixon 2792

ASSY, GEAR SPUR & BEVEL

$

$

Not available

2797

2797

TOP HINGE

$

$

Not available

2799

2799

BAG TUBE CONN-BOTTOM

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3081

3081

HEX NUT 6-32

$

$

Not available

3082

3082

LOCKWASHER #6

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3133

3133

R/B 3133 8 X 1/2 SM SCREW

$

$

Not available

3140

3140

1/4`ID DISC SPRING

$

$

Not available

3141

3141

6-32X1-3/4 FHS

$

$

Not available

3142

3142

1/4-28X3/4 HHB GR5

$

$

Not available

3143

3143

1/4`HEX LOCK NUT

$

$

Not available

3144

3144

#6-32X3/4 FHS

$

$

Not available

3145

3145

WASHER .170 I.D.

$

$

Not available

3146

Dixon 3146

SCREW, #6-32X1-1/4 RH

$

$

Not available

3147

Dixon 3147

NUT, #6-32 UNC ACORN

$

$

Not available

3149

Dixon 3149

1-1/2`PLAS.BUTT.PLUG

$

$

Not available

3151

3151

R/B 3373 #6-32UNCX1/2`RD HEAD

$

$

Not available

3152

3152

1/4-28X3/4 PAN HD SC

$

$

Not available

3535

3535

LATCH-G.C.

$

$

Not available

4219

4219

R/B 4219 NAME DECAL

$

$

Not available
