ZTR 428 - Dixon Zero-Turn Mower (1990) ENGINE ASSEMBLY Parts Diagram

Zero-Turn Mower

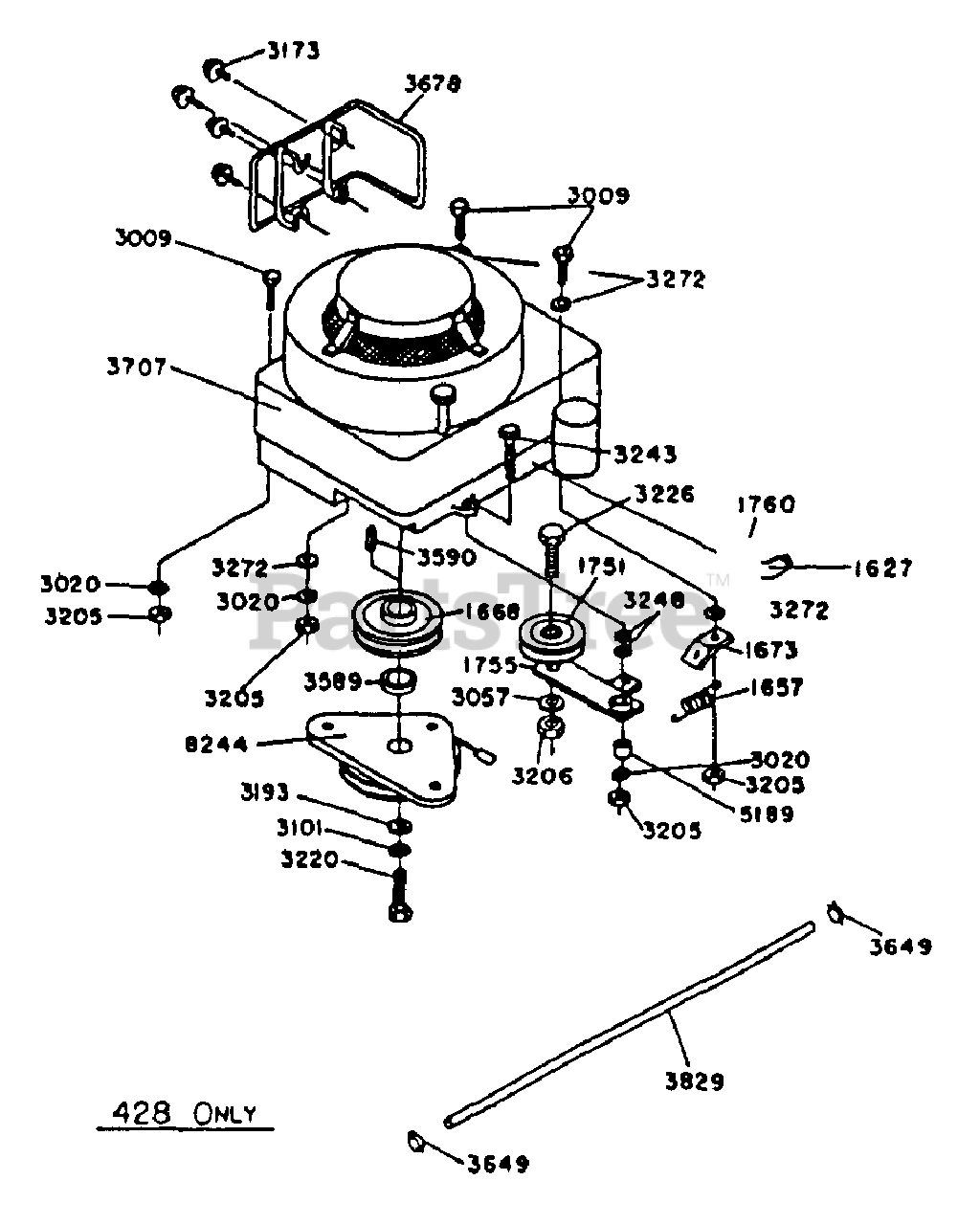

ENGINE ASSEMBLY Parts Diagram

  • Title
1627

1627

R/B 12237 3/8 GALV PIPE ELL

$

$

Not available

1657

1657

SPRING

$

$

Not available

1668

1668

PULLEY DRIVE

$

$

Not available

1673

1673

SPRING MOUNT

$

$

Not available

1751

1751

PLASTIC IDLER 3`FLAT(R/B 10294

$

$

Not available

1755

1755

IDLER WELDMENT

$

$

Not available

1760

1760

R/B 12237 3/8X1-5/8 GALV NIPP

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3101

3101

7/16 HELICAL L-WASH

$

$

Not available

3173

3173

SCREW, TAP #10-16 X 1/2

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3243

3243

5/16-18X3-1/4 HHB GR5

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3272

3272

5/16 INT TOOTH LW

$

$

Not available

3589

Dixon 3589

CLUTCH SPACER

$

$

Not available

3590

Dixon 3590

KEY 1/4 SQ X 1/2

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3678

3678

MUFFLER GUARD

$

$

Not available

3707

Dixon 3707

Gear, Spur, 15T.

$

$

Not available

3829

3829

1/4 X 33

$

$

Not available

5189

5189

BUSHING

$

$

Not available

8244

8244

CLUTCH KIT

$

$

Not available
