ZTR 429 - Dixon Zero-Turn Mower (1991) MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

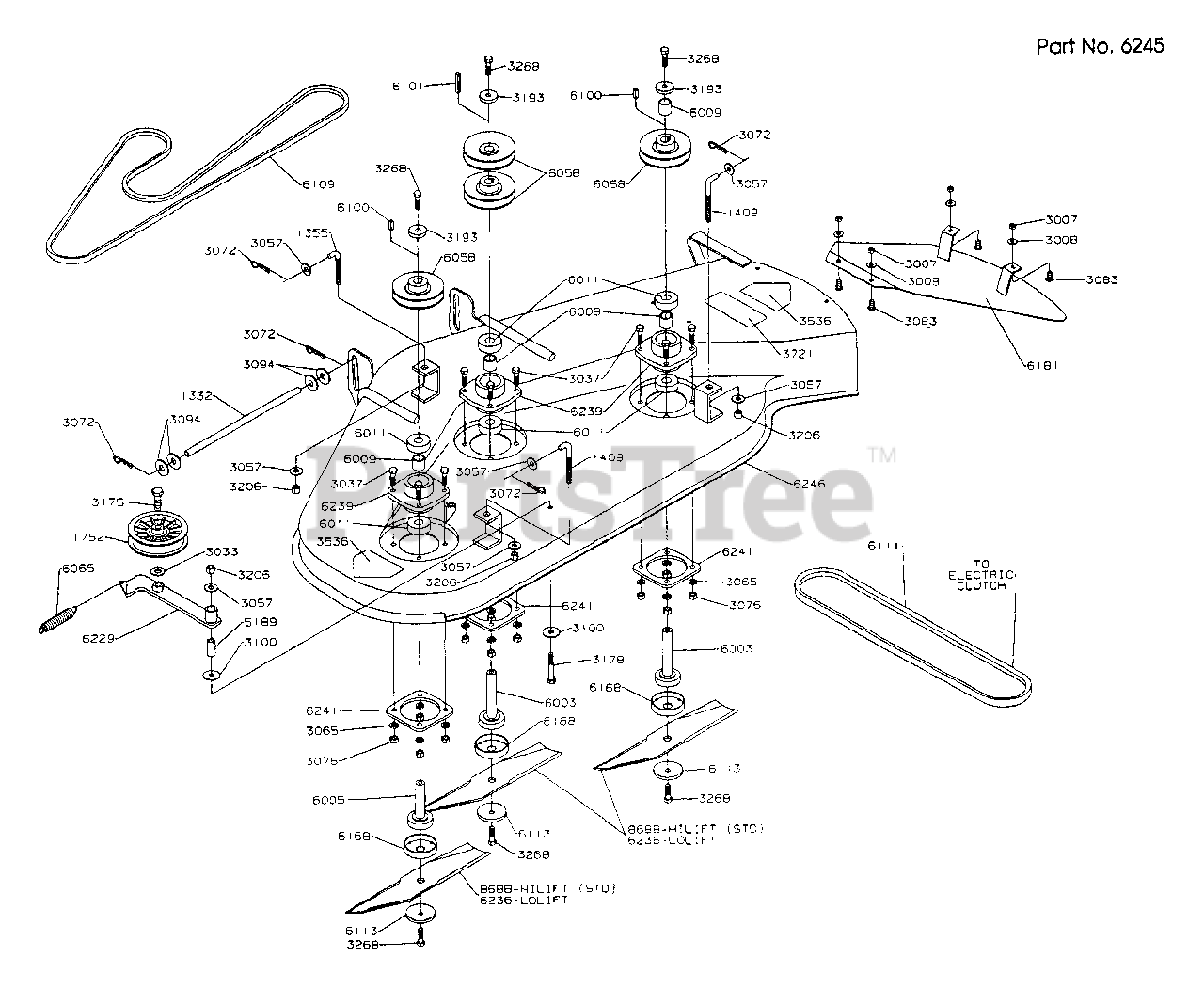

MOWER DECK ASSEMBLY Parts Diagram

  • Title

1332

1332

PLATED SHAFT - 12.50

$

$

Not available

1355

1355

L ROD 3-1/8"

$

$

Not available

1409

1409

L ROD 3-7/8

$

$

Not available

1752

1752

R/B 1687 PLASTIC IDLER 4`FLAT

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3037

3037

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3072

3072

$

$

Not available

3076

Dixon 3076

3/8-24 UNF HEX NUT

$

$

Not available

3083

3083

1/4-20UNCX1/2RDHDSCR

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3175

3175

$

$

Not available

3178

3178

3/8-16X2 1/2 HHBG5

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3268

3268

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

5189

5189

BUSHING

$

$

Not available

6003

6003

SHAFT-TAPPED (LONG)

$

$

Not available

6005

6005

NLA SHAFT WLDT (3.97)

$

$

Not available

6009

6009

HUB SPACER

$

$

Not available

6011

6011

DECK BEARING

$

$

Not available

6058

6058

V PULLEY

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6109

6109

V-BELT SERPENTINE

$

$

Not available

6111

6111

V-BELT DECK DRIVE

$

$

Not available

6113

6113

BLADE WASHER

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6181

6181

R/B 6181 DEFLECTOR WLDT

$

$

Not available

6229

6229

SERP. IDLER WLDT

$

$

Not available

6236

6236

MOWER BLADE 42 STD

$

$

Not available

6239

6239

DECK HUB MACHINED

$

$

Not available

6241

6241

DECK FLANGE

$

$

Not available

6245

6245

R/B 10517 MOWER DECK ASM 42`

$

$

Not available

6246

6246

MOWER DECK WELDMENT

$

$

Not available

8688

8688

HI-LIFT BLADE-42`

$

$

Not available
