ZTR 4421 - Dixon Zero-Turn Mower (1997) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

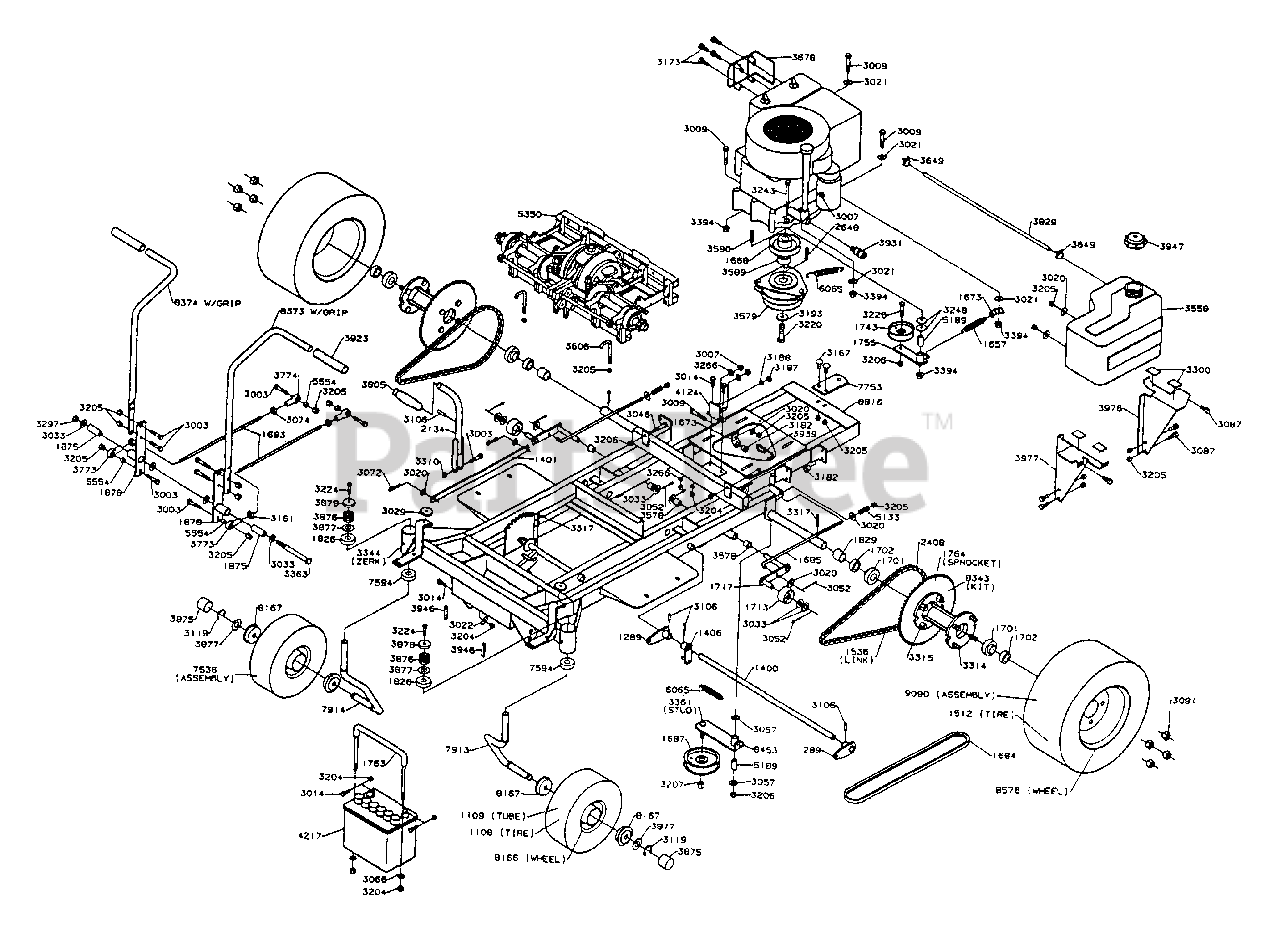

CHASSIS ASSEMBLY Parts Diagram

  • Title

1108

1108

TIRE 4.10/3.50X4 RIB

$

$

Not available

1109

1109

TUBE 4.10/3.50X4

$

$

Not available

1289

1289

LIFT ARM DRILLED

$

$

Not available

1400

1400

REAR LIFT SHAFT(PLATED)

$

$

Not available

1401

1401

TIE BAR

$

$

Not available

1406

1406

LIFT ARM DRILLED

$

$

Not available

1512

1512

REAR TIRE

$

$

Not available

1536

1536

#40 RC CONN LINK

$

$

Not available

1657

1657

SPRING

$

$

Not available

1668

1668

PULLEY DRIVE

$

$

Not available

1673

1673

SPRING MOUNT

$

$

Not available

1684

Dixon 1684

BELT

$

$

Not available

1685

1685

L-ROD

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1693

1693

CONTROL ROD

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1702

1702

LOCK COLLAR - ECC

$

$

Not available

1713

1713

IDLER PULLEY

$

$

Not available

1717

1717

ARM WELDMENT DRILLED

$

$

Not available

1743

1743

1743-IDLER FLAT 3`

$

$

Not available

1755

1755

IDLER WELDMENT

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

1764

1764

WHEEL HUB SPRKT-60T

$

$

Not available

1826

1826

CASTER BUSHING

$

$

Not available

1829

1829

AXLE SPACER

$

$

Not available

1875

1875

BUSHING

$

$

Not available

1878

1878

LOWER CONTROL-MACH

$

$

Not available

2134

2134

LIFT HANDLE WLDT

$

$

Not available

2408

2408

DR. CHAIN ASSY#40-92

$

$

Not available

2648

2648

KEY - 1/4 X .88

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3029

3029

FRONT GROMMET

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3046

3046

3/8-16UNCX2 HH BLT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3119

3119

RET.RING TRU ARC W75

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3173

3173

SCREW, TAP #10-16 X 1/2

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3187

3187

NUT, HEX #10-32

$

$

Not available

3188

Dixon 3188

LOCKWASHER #10 EST TOOTH

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$3.49

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3243

3243

5/16-18X3-1/4 HHB GR5

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3314

3314

1/2-20 LUGBOLT G5

$

$

Not available

3315

3315

1/2-20 HEX NUT W/NY

$

$

Not available

3317

3317

HAMMERLOCK COTTER

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3363

3363

1/2-13X5-1/2 HHBGR5

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3558

3558

2 GAL TANK W/CAP

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3579

3579

ELECTRIC CLUTCH

$

$

Not available

3589

Dixon 3589

CLUTCH SPACER

$

$

Not available

3590

Dixon 3590

KEY 1/4 SQ X 1/2

$

$

Not available

3606

3606

J-BOLT

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3678

3678

MUFFLER GUARD

$

$

Not available

3773

Dixon 3773

LH ROD END

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3805

3805

R/B 3805 HANDLE GRIP

$

$

Not available

3829

3829

1/4 X 33

$

$

Not available

3875

Dixon 3875

HUB COVER

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3877

Dixon 3877

WASHER .78X1.5X.06

$

$

Not available

3878

3878

$

$

Not available

3923

3923

HAND GRIP

$

$

Not available

3931

3931

$

$

Not available

3939

3939

CLUTCH ANCHOR

$

$

Not available

3946

3946

CLIP - 2.06

$

$

Not available

3947

3947

FUEL CAP

$

$

Not available

3976

Dixon 3976

TANK MOUNT-LONG

$

$

Not available

3977

3977

TANK MOUNT-SHORT

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

5133

5133

R/B 5133 CRADLE SPRING

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5350

5350

TRANSAXLE ASM 42

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

7536

7536

R/B 10040 WHEEL & TIRE ASM

$

$

Not available

7594

7594

THRUST BEARING SR810-57LS

$

$

Not available

7753

7753

HITCH

$

$

Not available

7913

7913

CASTER AXLE WLDT LH

$

$

Not available

7914

7914

CASTER AXLE WLDT RH

$

$

Not available

8166

8166

R/B 10140 CASTER RIM

$

$

Not available

8167

8167

CASTER WHEEL BEARING

$

$

Not available

8343

8343

R/B 8343 WHEEL HUB ASSEMBLY

$

$

Not available

8373

8373

LH CONTROL LEVER ASM

$

$

Not available

8374

8374

RH CONTROL LEVER ASM

$

$

Not available

8453

8453

IDLER ARM ASM

$

$

Not available

8576

8576

REAR WHEEL (42` 50`)

$

$

Not available

8816

8816

FRAME ASSEMBLY

$

$

Not available

9090

9090

$

$

Not available
