ZTR 501 - Dixon Zero-Turn Mower (1987) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

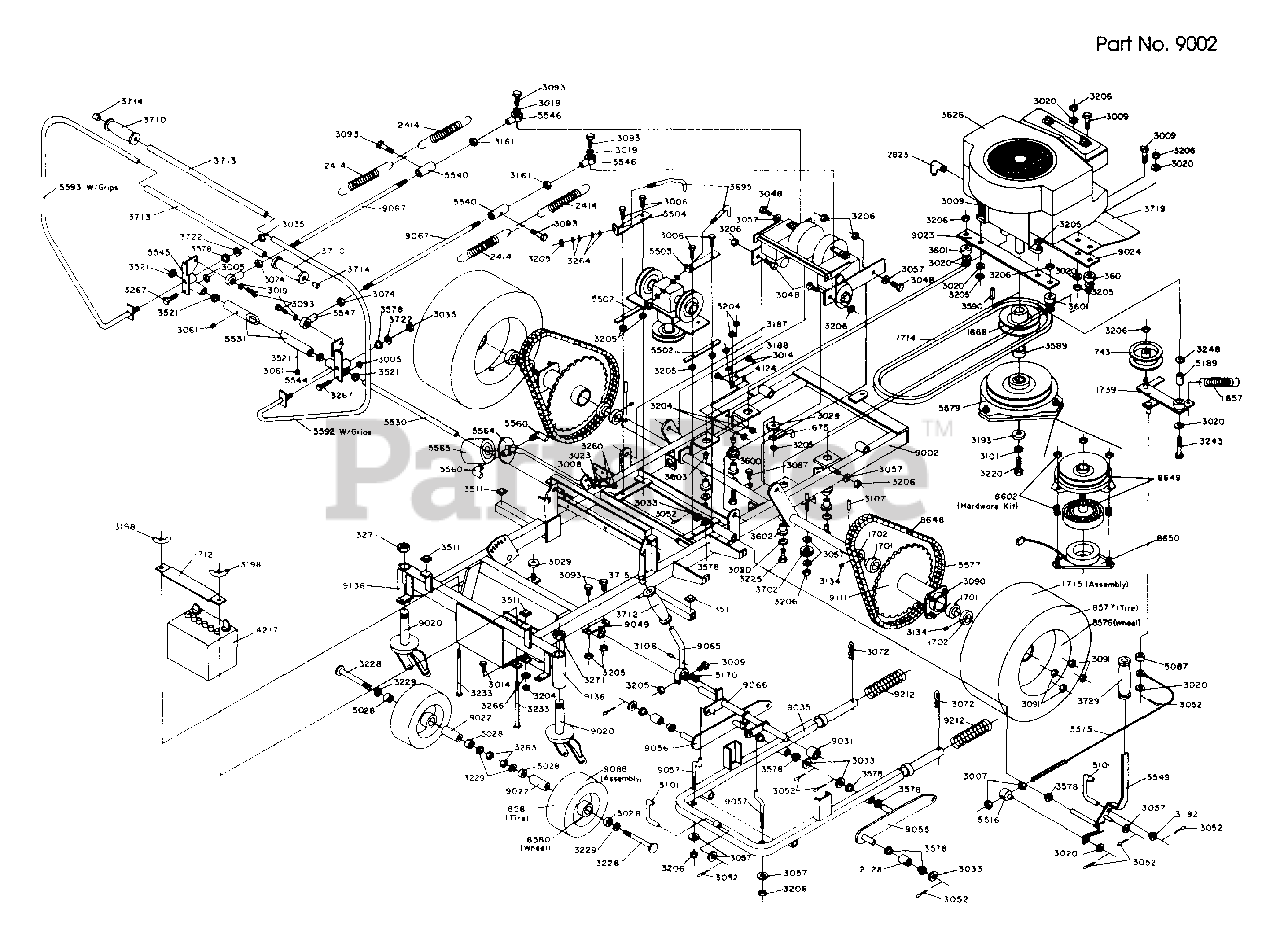

CHASSIS ASSEMBLY Parts Diagram

  • Title

1657

1657

SPRING

$

$

Not available

1668

1668

PULLEY DRIVE

$

$

Not available

1675

1675

ANCHOR

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1702

1702

LOCK COLLAR - ECC

$

$

Not available

1712

1712

BATTERY STRAPW/COVER

$

$

Not available

1714

1714

DRIVE BELT

$

$

Not available

1715

1715

REAR WHEEL & TIRE

$

$

Not available

1739

1739

IDLER WELDMENT

$

$

Not available

1743

1743

1743-IDLER FLAT 3`

$

$

Not available

2128

2128

SLEEVE 7/8 X 1-1/2

$

$

Not available

2414

2414

IDLER TENSION SPR

$

$

Not available

2823

2823

R/B 12237 OIL DRAIN ASSY

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3029

3029

FRONT GROMMET

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3035

Dixon 3035

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3072

3072

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3101

3101

7/16 HELICAL L-WASH

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3107

3107

HD 1/4X11/2 SPIR PIN

$

$

Not available

3134

3134

1/4-28X1/4SOC.S.S.

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3187

3187

NUT, HEX #10-32

$

$

Not available

3188

Dixon 3188

LOCKWASHER #10 EST TOOTH

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3198

Dixon 3198

1/4-20 WING NUT W/NY

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3228

3228

5/8-11X6-1/4 CAR BLT

$

$

Not available

3229

3229

WASHER-.626IDX.056TK

$

$

Not available

3233

3233

1/4-20X7.25CAR BLTG5

$

$

Not available

3243

3243

5/16-18X3-1/4 HHB GR5

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3260

3260

1/4-20X1/2 HHB GR5

$

$

Not available

3263

3263

5/8-11 THIN PROF NY

$

$

Not available

3264

3264

5/16 DISC SPRING HD

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3271

3271

1-14 THIN PROF NYLOK

$

$

Not available

3511

3511

ADHESIVE BUMPER

$

$

Not available

3521

3521

ENG CAM MT BUSHING

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3589

Dixon 3589

CLUTCH SPACER

$

$

Not available

3590

Dixon 3590

KEY 1/4 SQ X 1/2

$

$

Not available

3600

3600

R/B 3599 REBOUND MOUNT

$

$

Not available

3601

3601

LOAD MOUNT

$

$

Not available

3602

3602

R/B 3599 SPACER TUBE

$

$

Not available

3603

3603

R/B 3599 ISO INSERT

$

$

Not available

3626

Dixon 3626

Spring, Detent

$

$

Not available

3695

3695

J-BOLT

$

$

Not available

3702

3702

PULLEY

$

$

Not available

3710

Dixon 3710

BAR SLEEVE

$

$

Not available

3712

Dixon 3712

R/B 3805 HANDLE GRIP

$

$

Not available

3713

Dixon 3713

R/B 3917 FOAM TUBE

$

$

Not available

3714

Dixon 3714

END CAP

$

$

Not available

3715

Dixon 3715

END CAP

$

$

Not available

3719

Dixon 3719

Gear, Spur, 25T.

$

$

Not available

3722

3722

R/B 3298 FIBRE WASHER

$

$

Not available

3729

3729

BAR SLEEVE

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

5028

5028

TRANSAXLE BEARING

$

$

Not available

5087

5087

SPACER 3/8X12

$

$

Not available

5101

5101

BRAKE LINK

$

$

Not available

5170

5170

POS SPR(YELLOW ZINC CHRO

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5502

5502

MOUNT SHIM

$

$

Not available

5503

5503

LH `T` BOX GUIDE

$

$

Not available

5504

5504

RH `T` BOX GUIDE

$

$

Not available

5515

5515

IDLER CABLE

$

$

Not available

5516

5516

SWIVEL

$

$

Not available

5530

5530

PIVOT SHAFT

$

$

Not available

5531

5531

ADJUSTABLE BUSHING

$

$

Not available

5540

5540

CONTROL TUBE

$

$

Not available

5544

5544

LH SWIVEL PLATE WLDT

$

$

Not available

5545

5545

RH SWIVEL PLATE WLDT

$

$

Not available

5546

5546

R/B 3773 LH ROD END

$

$

Not available

5547

5547

R/B 3774 RH ROD END

$

$

Not available

5549

5549

BRAKE HANDLE WLDT

$

$

Not available

5560

5560

MALE ELBOW

$

$

Not available

5564

5564

FILTER HEAD

$

$

Not available

5565

5565

R/B 7252 FILTER

$

$

Not available

5577

5577

CHAIN 40RC 76P

$

$

Not available

5579

5579

R/B 8404 CLUTCH/ELEC. WARNER

$

$

Not available

5592

5592

LH CONTROL LEVER W/G

$

$

Not available

5593

5593

RH CONTROL LEVER W/G

$

$

Not available

8576

8576

REAR WHEEL (42` 50`)

$

$

Not available

8577

8577

REAR TIRE

$

$

Not available

8580

8580

CASTER WHEEL (501)

$

$

Not available

8581

8581

CASTER TIRE (501)

$

$

Not available

8602

8602

$

$

Not available

8648

8648

CONNECTING LINK

$

$

Not available

8649

8649

R/B 8404 ROTOR/ARMATURE ASM

$

$

Not available

8650

8650

R/B 8404 FIELD ASSEMBLY - 50

$

$

Not available

9002

9002

$

$

Not available

9020

9020

CASTER WELDMENT

$

$

Not available

9022

9022

SPACER BUSHING

$

$

Not available

9023

9023

ENGINE PLATE

$

$

Not available

9024

9024

R/B 9023 ENGINE PLATE REAR

$

$

Not available

9031

9031

LIFT TUBE

$

$

Not available

9035

9035

R/B 8814 LIFT FRAME WELDMENT

$

$

Not available

9049

9049

LIFT BUSHING WLDT

$

$

Not available

9055

9055

$

$

Not available

9056

9056

LIFT CAM DRILLED LH

$

$

Not available

9057

9057

FRONT LIFT ROD

$

$

Not available

9065

9065

R/B 9618 LIFT HANDLE WLDT

$

$

Not available

9066

9066

LIFT SHAFT WELDMENT

$

$

Not available

9067

9067

CONTROL ROD

$

$

Not available

9088

9088

CASTER WHEEL & TIRE

$

$

Not available

9111

9111

R/B 9300 WHEEL HUB ASSEMBLY

$

$

Not available

9136

9136

$

$

Not available

9212

9212

SPRING(YELLOW ZINC CHROM

$

$

Not available
