ZTR 5017 - Dixon Zero-Turn Mower (2001) MOWER DECK 42" Parts Diagram

Zero-Turn Mower

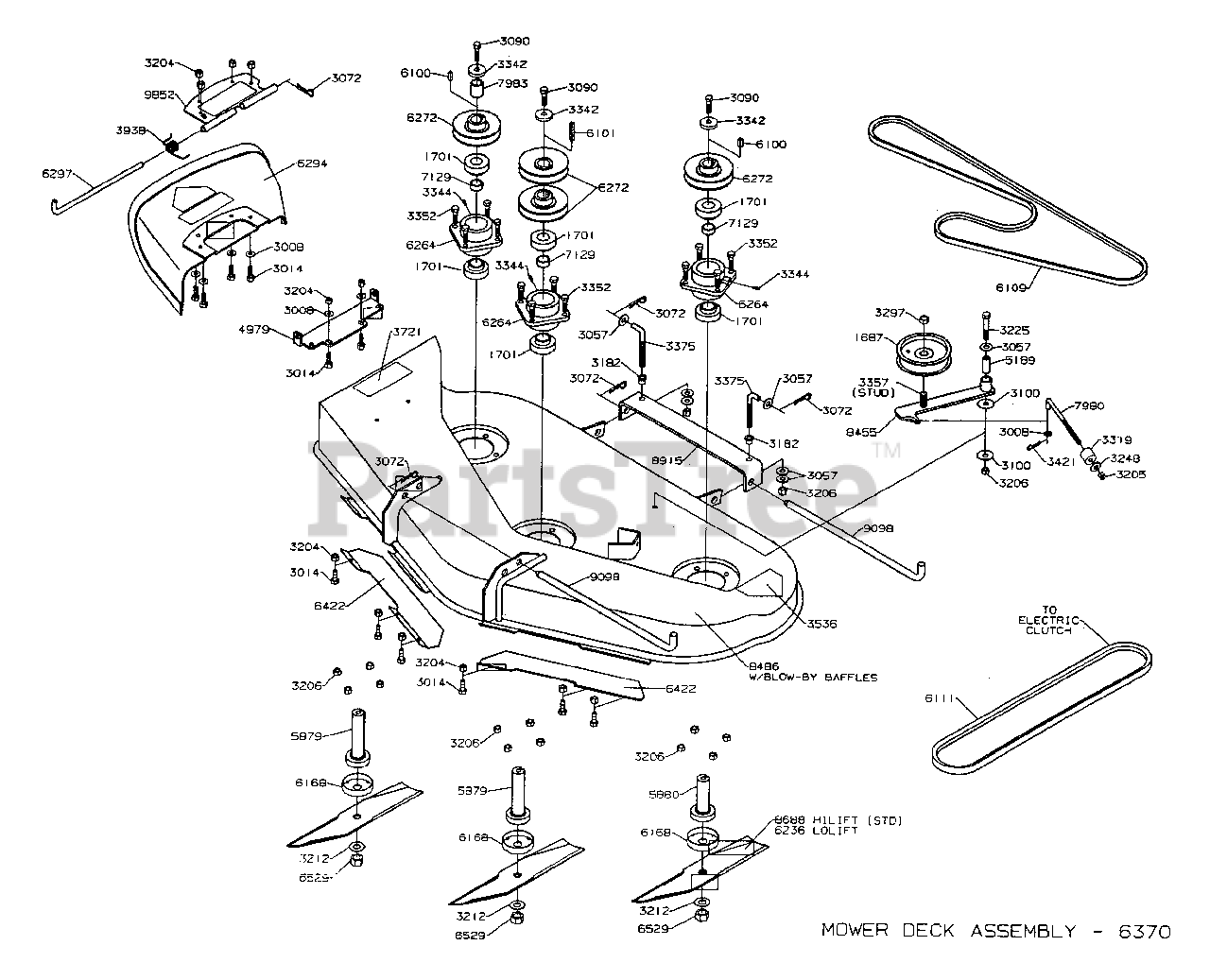

MOWER DECK 42" Parts Diagram

  • Title

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3212

3212

5/8 FLAT WASH-NARROW

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3357

3357

IDLER STUD

$

$

Not available

3375

3375

L-ROD 3.5

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

4979

4979

HINGE

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5879

5879

R/B 13704 SHAFT ASM 42L

$

$

Not available

5880

5880

R/B 13705 SHAFT ASM 42S

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6109

6109

V-BELT SERPENTINE

$

$

Not available

6111

6111

V-BELT DECK DRIVE

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6236

6236

MOWER BLADE 42 STD

$

$

Not available

6264

6264

DECK HUB W/ZERK

$

$

Not available

6272

6272

V-PULLEY

$

$

Not available

6294

6294

PLASTIC DEFLECTOR

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

6370

6370

DECK ASM (5000)

$

$

Not available

6422

6422

BLOW-BY-BAFFLE

$

$

Not available

6529

6529

5/8-18 STD HEX NUT

$

$

Not available

7129

7129

SPACER .459

$

$

Not available

7980

7980

L-ROD

$

$

Not available

7983

7983

SPACER

$

$

Not available

8455

8455

42 SERP IDLER W/STUD

$

$

Not available

8486

8486

R/B 6370 DECK ASSEMBLY 542

$

$

Not available

8688

8688

HI-LIFT BLADE-42`

$

$

Not available

8915

8915

LIFT PLATE ASM

$

$

Not available

9098

9098

HANGER ROD

$

$

Not available

9852

9852

DEFLECTOR MT BRKT

$

$

Not available
