ZTR 502 - Dixon Zero-Turn Mower (1989) T-BOX AND HYDROSTATS ASSEMBLY Parts Diagram

Zero-Turn Mower

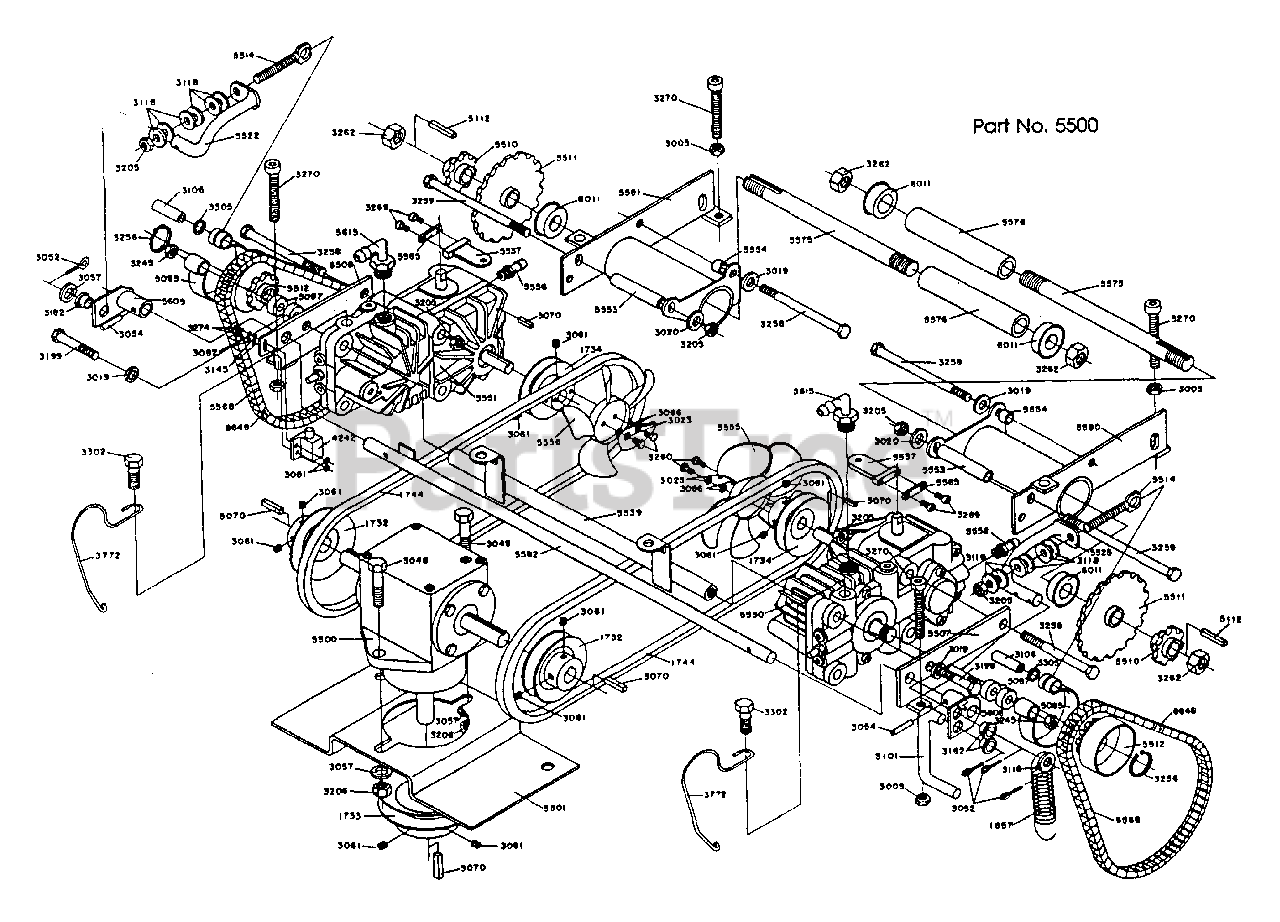

T-BOX AND HYDROSTATS ASSEMBLY Parts Diagram

  • Title
1657

1657

SPRING

$

$

Not available

1732

1732

4` A PULLEY-1732

$

$

Not available

1733

1733

5` B PULLEY-1733

$

$

Not available

1734

1734

4` A PULLEY-1734

$

$

Not available

1744

1744

V-BELT

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3054

3054

PIN, ROLL 3/16 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3070

3070

R/B 3105 14X1-1/4 HD SPIR PIN

$

$

Not available

3081

3081

HEX NUT 6-32

$

$

Not available

3082

3082

LOCKWASHER #6

$

$

Not available

3106

3106

R/B 3106 1/4 X 1 SPIROL PIN

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3145

3145

WASHER .170 I.D.

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3199

3199

5/16-18X2-1/4HHB GR5

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3256

3256

SNAP RING

$

$

Not available

3258

3258

5/16-18X4-1/2 HHB GR8

$

$

Not available

3259

Dixon 3259

5/16-18 X 5 HHB GR8

$

$

Not available

3260

3260

1/4-20X1/2 HHB GR5

$

$

Not available

3262

3262

R/B 3262 3/4-16UNF H JAML-NUT

$

$

Not available

3269

3269

R/B 3093 5/16-18X1 SOC HD BLT

$

$

Not available

3270

3270

5/16-18X3 SOC HD BLT

$

$

Not available

3274

3274

6-32X1/2 TRUSS HD PH

$

$

Not available

3302

3302

5/16-18X1/2 WHTF SCR

$

$

Not available

3305

3305

RETAINER PUSH-ON .25

$

$

Not available

3525

3525

$

$

Not available

3772

Dixon 3772

BY-PASS KEEPER

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5065

5065

R/B 5025 HD CONE FRAME ASSY

$

$

Not available

5070

5070

KEY, 3/16 SQ X .88

$

$

Not available

5085

5085

BRAKE BAND

$

$

Not available

5087

5087

SPACER 3/8X12

$

$

Not available

5101

5101

BRAKE LINK

$

$

Not available

5112

Dixon 5112

NO LONGER AVAILABLE

$

$

Not available

5500

5500

T` BOX

$

$

Not available

5501

5501

MOUNT PLATE

$

$

Not available

5507

5507

$

$

Not available

5508

Dixon 5508

SEAL, OIL

$

$

Not available

5510

Dixon 5510

10T SPROCKET

$

$

Not available

5511

Dixon 5511

30T SPROCKET

$

$

Not available

5512

5512

SPROCKET WELDMENT

$

$

Not available

5514

5514

BRAKE ROD

$

$

Not available

5522

5522

RH BRAKE LINK

$

$

Not available

5537

5537

CONTROL ARM - TAPPED

$

$

Not available

5539

5539

MT SUPPORT ROD WLDT

$

$

Not available

5550

5550

HYDRO (BDU-10L-212)

$

$

Not available

5551

5551

HYDRO (BDU-10L-113)

$

$

Not available

5553

5553

SPACER

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

5555

Dixon 5555

R/B 5627 LH HYDRO FAN

$

$

Not available

5556

5556

R/B 5628 RH HYDRO FAN

$

$

Not available

5558

5558

HOSE FITTING

$

$

Not available

5568

5568

CHAIN 40RC 36P

$

$

Not available

5575

5575

SHAFT

$

$

Not available

5576

5576

SPACER

$

$

Not available

5580

5580

$

$

Not available

5581

5581

RH JACK SHAFT-MACH

$

$

Not available

5582

5582

PIVOT SHAFT WLDT

$

$

Not available

5585

5585

R/B 5537 DRILLED TAB

$

$

Not available

5606

5606

$

$

Not available

5609

5609

BRAKE ARM DRILLED RH

$

$

Not available

5615

5615

CONNECTOR/ELBOW ASM

$

$

Not available

5885

5885

CENTER SECTION KIT

$

$

Not available

6011

6011

DECK BEARING

$

$

Not available

8645

8645

$

$

Not available

8648

8648

CONNECTING LINK

$

$

Not available
