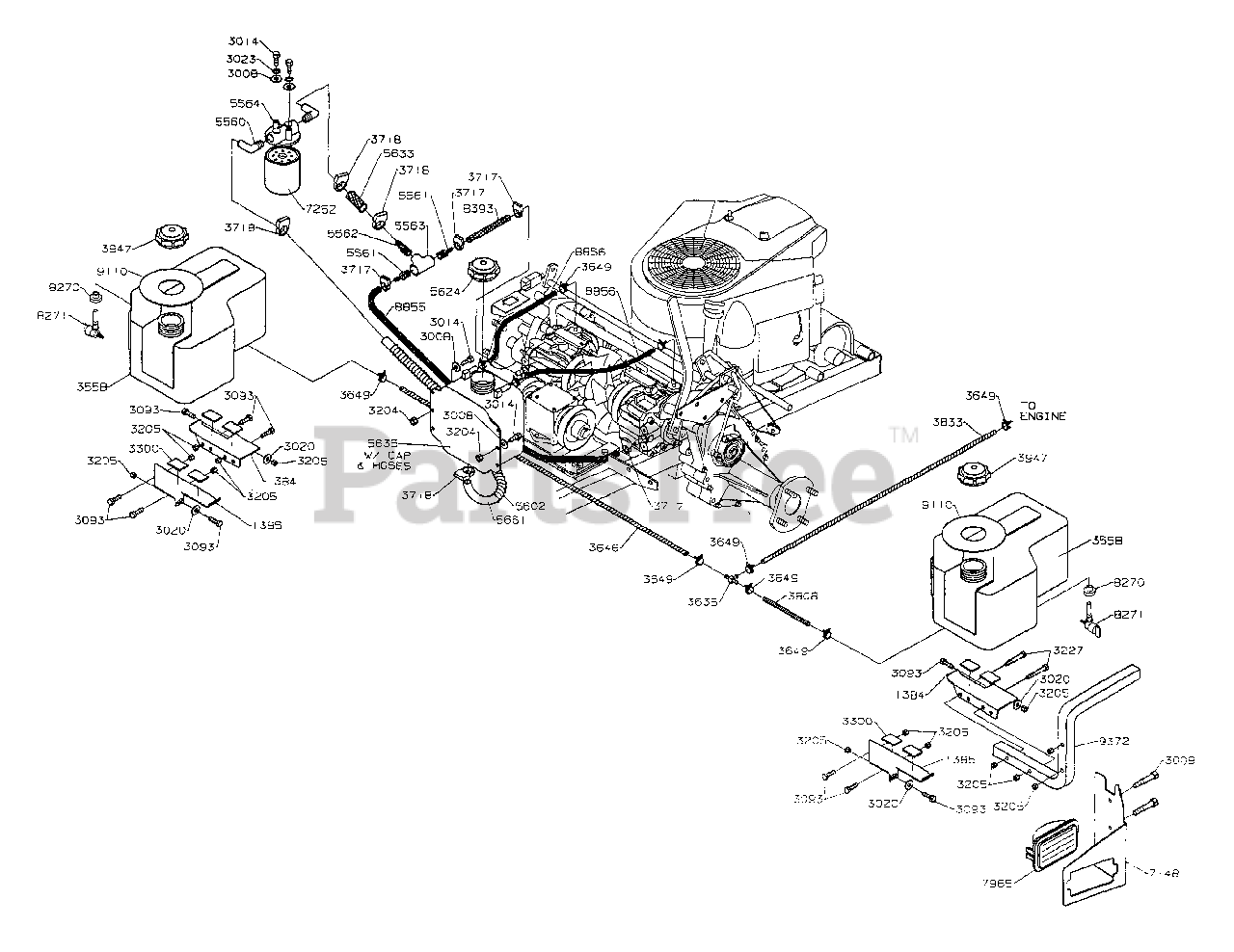

ZTR 5020 - Dixon Zero-Turn Mower (1999) > Parts Diagrams (9) > FUEL/HYDRO TANKS & FITTINGS

  • Title
1384

1384

TANK MT BRKT (SHORT)

Part# 1384

Not available

1385

1385

TANK MT BRKT (LONG)

Part# 1385

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

Part# 3008

Not available

3009

3009

5/16-18X1-3/4HHB GR8

Part# 3009

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

Part# 3014

Not available

3020

3020

5/16STD FLAT WASHER.

Part# 3020

Not available

3023

3023

1/4HELICAL L-WASHER

Part# 3023

Not available

3093

3093

5/16-18X1 HHB GR5

Part# 3093

Not available

3204

3204

1/4-20 HEX NUT W/NY

Part# 3204

Not available

3205

3205

5/16-18 HX NUT W/NY.

Part# 3205

Not available

3227

3227

5/16-18X2 HHB GR5

Part# 3227

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

Part# 3300

Not available

3558

3558

2 GAL TANK W/CAP

Part# 3558

Not available

3635

3635

FUEL LINE TEE

Part# 3635

Not available

3646

3646

R/B 3646 HOSE 1/4 X 18

Part# 3646

OEM Warranty Repair Part for Dixon

Not available

3649

3649

FUEL LINE CLAMP

Part# 3649

OEM Warranty Repair Part for Dixon

Not available

3717

3717

CLAMP 3/8

Part# 3717

Not available

3718

3718

5/8 CLAMP

Part# 3718

Not available

3808

3808

HOSE 1/4 X 5.5

Part# 3808

Not available

3833

3833

HOSE 1/4 X 38

Part# 3833

Not available

3947

3947

FUEL CAP

Part# 3947

Not available

5560

5560

MALE ELBOW

Part# 5560

Not available

5561

5561

MALE ADAPTER

Part# 5561

Not available

5562

5562

MALE ADAPTER

Part# 5562

OEM Warranty Repair Part for Dixon

Not available

5563

5563

TEE

Part# 5563

Not available

5564

5564

FILTER HEAD

Part# 5564

Not available

5602

5602

HOSE GUARD SPRING

Part# 5602

Not available

5624

5624

R/B 5624 RESERVOIR CAP

Part# 5624

Not available

5633

5633

R/B 13173 5/8` HOSE - 2`

Part# 5633

Not available

5635

5635

RESERVOIR ASSEMBLY

Part# 5635

Not available

5661

5661

HOSE 5/8 X 12.5

Part# 5661

Not available

7148

7148

TRIM LIGHT BRKT.

Part# 7148

Not available

7252

7252

R/B 7252 FILTER

Part# 7252

Not available

7965

7965

TRIM LIGHT.

Part# 7965

Not available

8270

8270

TANK FITTING

Part# 8270

Not available

8271

8271

TANK FUEL VALVE # 8271

Part# 8271

Not available

8393

8393

HOSE 3/8 X 3.75

Part# 8393

Not available

8855

8855

R/B 8394 HOSE 3/8 X 26.5

Part# 8855

Not available

8856

8856

R/B 8856 HOSE 1/4 X 25.5

Part# 8856

Not available

9110

9110

TANK COVER

Part# 9110

Not available

9372

9372

BODY BRACE

Part# 9372

Not available
