ZTR 5020 - Dixon Zero-Turn Mower (1999) MOWER DECK 60" Parts Diagram

Zero-Turn Mower

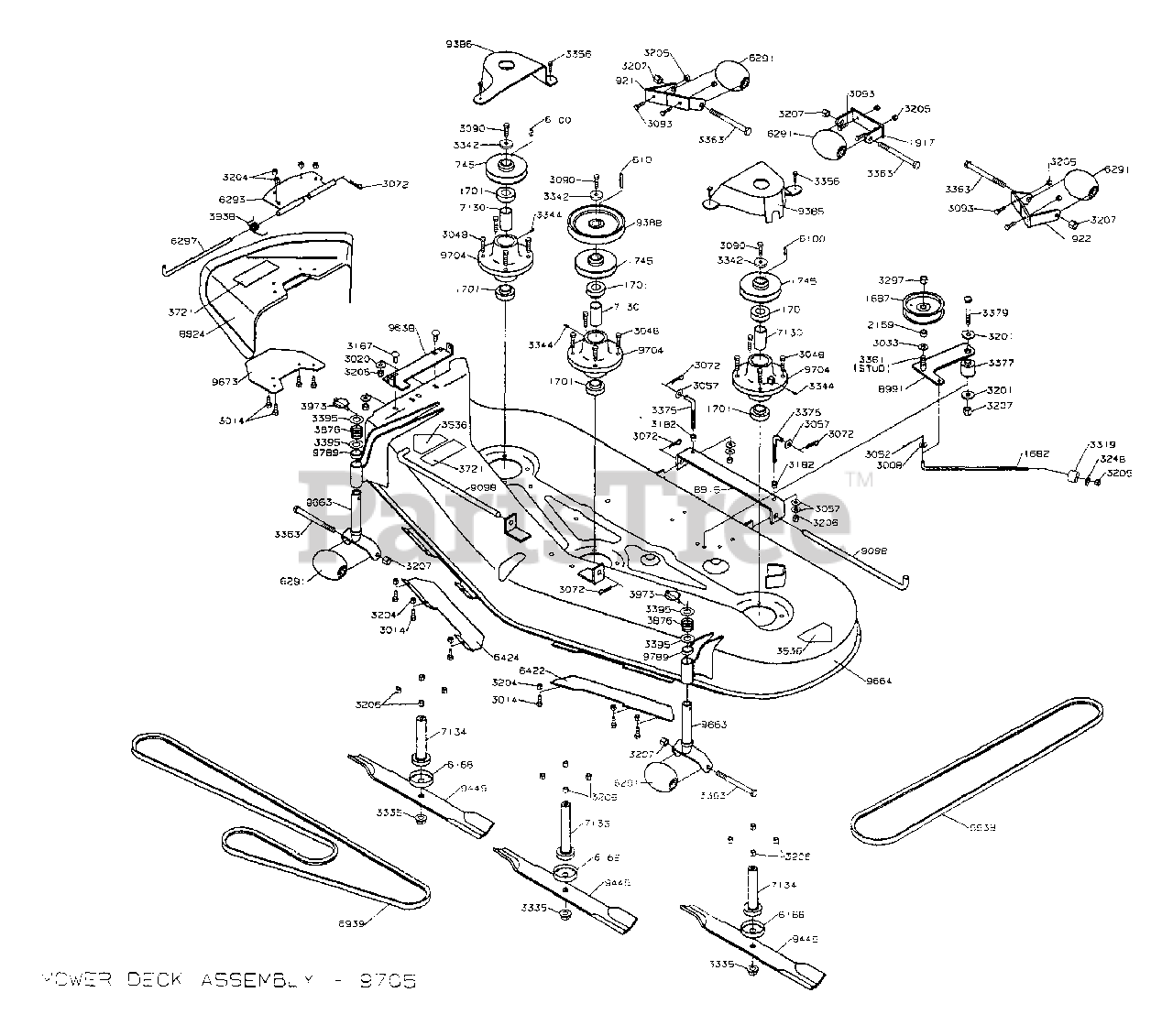

MOWER DECK 60" Parts Diagram

  • Title

1682

1682

L` ROD

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1745

1745

4-1/2` B PULLEY

$

$

Not available

1917

1917

REAR ROLLER BRKT WLD

$

$

Not available

1921

1921

LH ROLLER BRKT WLDT

$

$

Not available

1922

1922

RH ROLLER BRKT WLDT

$

$

Not available

2159

2159

TUBE .51 I.D. X .75 O.D.

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3201

3201

WASHER-.533IDX1.37OD

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3335

3335

R/B 6671 5/8-18 HEX FLANGE NU

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3363

3363

1/2-13X5-1/2 HHBGR5

$

$

Not available

3375

3375

L-ROD 3.5

$

$

Not available

3377

3377

SERP. IDLER SPACER

$

$

Not available

3379

3379

1/2-13X3 HHB GR5

$

$

Not available

3395

Dixon 3395

R/B 3395 WASHER-1.033X1.5X.06

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

3973

Dixon 3973

LYNCH PIN

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6291

6291

DECK ROLLER

$

$

Not available

6293

6293

DEFLECTOR MT BRKT

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

6422

6422

BLOW-BY-BAFFLE

$

$

Not available

6424

6424

BLOW-BY BAFFLE RH

$

$

Not available

6938

6938

V-BELT DECK DRIVE

$

$

Not available

6939

6939

SERPENTINE BELT

$

$

Not available

7130

7130

HUB SPACER

$

$

Not available

7133

7133

R/B 13707 SHAFT ASM 50L

$

$

Not available

7134

7134

SHAFT ASM 50S

$

$

Not available

8915

8915

LIFT PLATE ASM

$

$

Not available

8924

8924

R/B 8924 DEFLECTOR ASM 60`

$

$

Not available

8991

8991

IDLER ARM ASM

$

$

Not available

9098

9098

HANGER ROD

$

$

Not available

9385

9385

BELT GUARD LH

$

$

Not available

9386

9386

BELT GUARD RH

$

$

Not available

9388

9388

DECK PULLEY 6.25

$

$

Not available

9445

9445

R/B 13953 HI-LIFT BLADE 60`

$

$

Not available

9638

9638

DEFLECTOR HINGE

$

$

Not available

9663

9663

ROLLER BRKT WLDT

$

$

Not available

9664

9664

DECK WLDT

$

$

Not available

9673

9673

DEFLECTOR BRKT

$

$

Not available

9704

9704

DECK HUB W/ZERK

$

$

Not available

9705

9705

DECK ASM. 60` (5000)

$

$

Not available

9789

9789

TUBE-1.25ODX1.03IDX.38

$

$

Not available
