ZTR 503 - Dixon Zero-Turn Mower (1993) BODY ASSEMBLY Parts Diagram

Zero-Turn Mower

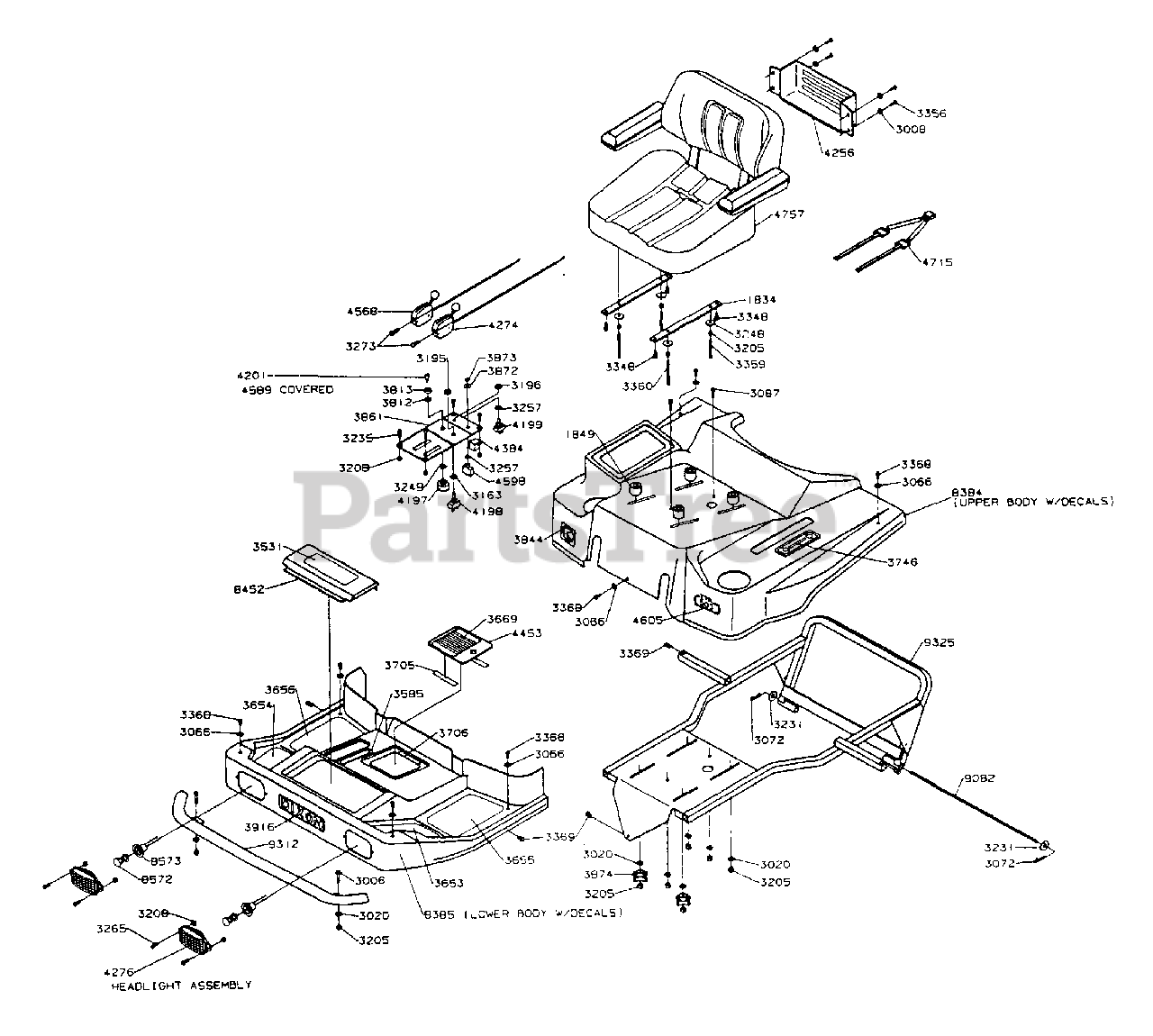

BODY ASSEMBLY Parts Diagram

  • Title

1834

1834

SEAT STRAP

$

$

Not available

1849

1849

SEAT SPACER

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3163

Dixon 3163

1/2 INTERNAL L-WASH

$

$

Not available

3195

3195

FACE NUT 1/2-27

$

$

Not available

3196

3196

FACE NUT 7/16-28

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3231

3231

9/16 STD FLAT WASHER

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3249

3249

5/8 INT.TOOTH L.W.

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3265

3265

10-24X3/4TRUSS HD PH

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3348

3348

5/16-18X3/4 HWH TFS

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3359

3359

5/16-18X3HHBG5 ALTHD

$

$

Not available

3360

3360

5/16-18X4HHBG5 ALTHD

$

$

Not available

3368

3368

1/4-20X 1 HWH TAP SC

$

$

Not available

3369

3369

1/4-20 U NUT

$

$

Not available

3531

3531

DECAL, OPERATING INST

$

$

Not available

3585

3585

DECAL, CUTTING HEIGHT

$

$

Not available

3653

Dixon 3653

FRONT FLOOR PAD L

$

$

Not available

3654

Dixon 3654

FRONT FLOOR PAD R

$

$

Not available

3655

3655

REAR FLOOR PAD L

$

$

Not available

3656

Dixon 3656

REAR FLOOR PAD R

$

$

Not available

3669

3669

DECAL, WARNING

$

$

Not available

3705

3705

VELCRO STRIP(LOOP)

$

$

Not available

3706

Dixon 3706

VELCRO STRIP (HOOK)

$

$

Not available

3746

3746

TIE BAR

$

$

Not available

3812

3812

IGNITION NUT

$

$

Not available

3813

3813

PROTECTIVE CAP

$

$

Not available

3844

3844

DECAL, HYDRO-GEAR

$

$

Not available

3861

3861

CONTROL PANEL 50`

$

$

Not available

3872

3872

$

$

Not available

3873

Dixon 3873

BRACKET, ANTI-ROTATION

$

$

Not available

3874

Dixon 3874

SEAT KNOB 5/16-18

$

$

Not available

3916

Dixon 3916

R/B 3916 DECAL - DIXON

$

$

Not available

4197

4197

KEY SWITCH

$

$

Not available

4198

4198

CLUTCH SWITCH

$

$

Not available

4199

4199

LIGHT SWITCH

$

$

Not available

4201

4201

KEY (PLAIN)

$

$

Not available

4256

4256

UTILITY BOX

$

$

Not available

4274

4274

CHOKE CONTROL

$

$

Not available

4276

4276

HEADLIGHT

$

$

Not available

4384

4384

RELAY

$

$

Not available

4453

4453

ACCESS COVER

$

$

Not available

4568

4568

THROTTLE (40`)

$

$

Not available

4589

4589

KEY (PLAIN)

$

$

Not available

4598

4598

CIRCUIT BREAKER W58XB1A4A15

$

$

Not available

4605

4605

MODEL DECAL - 503

$

$

Not available

4715

4715

NLA SEAT SWITCH ASM

$

$

Not available

4757

4757

R/B 7270 SEAT ASSEMBLY 50`

$

$

Not available

8384

8384

$

$

Not available

8385

8385

503 LO BODY W/DECALS

$

$

Not available

8452

8452

R/B 4687 42/50 BATTERY COVER

$

$

Not available

8572

8572

HEADLIGHT BULB

$

$

Not available

8573

8573

HEADLIGHT SOCKET ASM

$

$

Not available

9082

9082

SEAT FRAME PIVOT ROD

$

$

Not available

9312

9312

BUMPER WELDMENT

$

$

Not available

9325

9325

$

$

Not available
