ZTR 5422 - Dixon Zero-Turn Mower (1996) CHASSIS ASSEMBLY Parts Diagram

Zero-Turn Mower

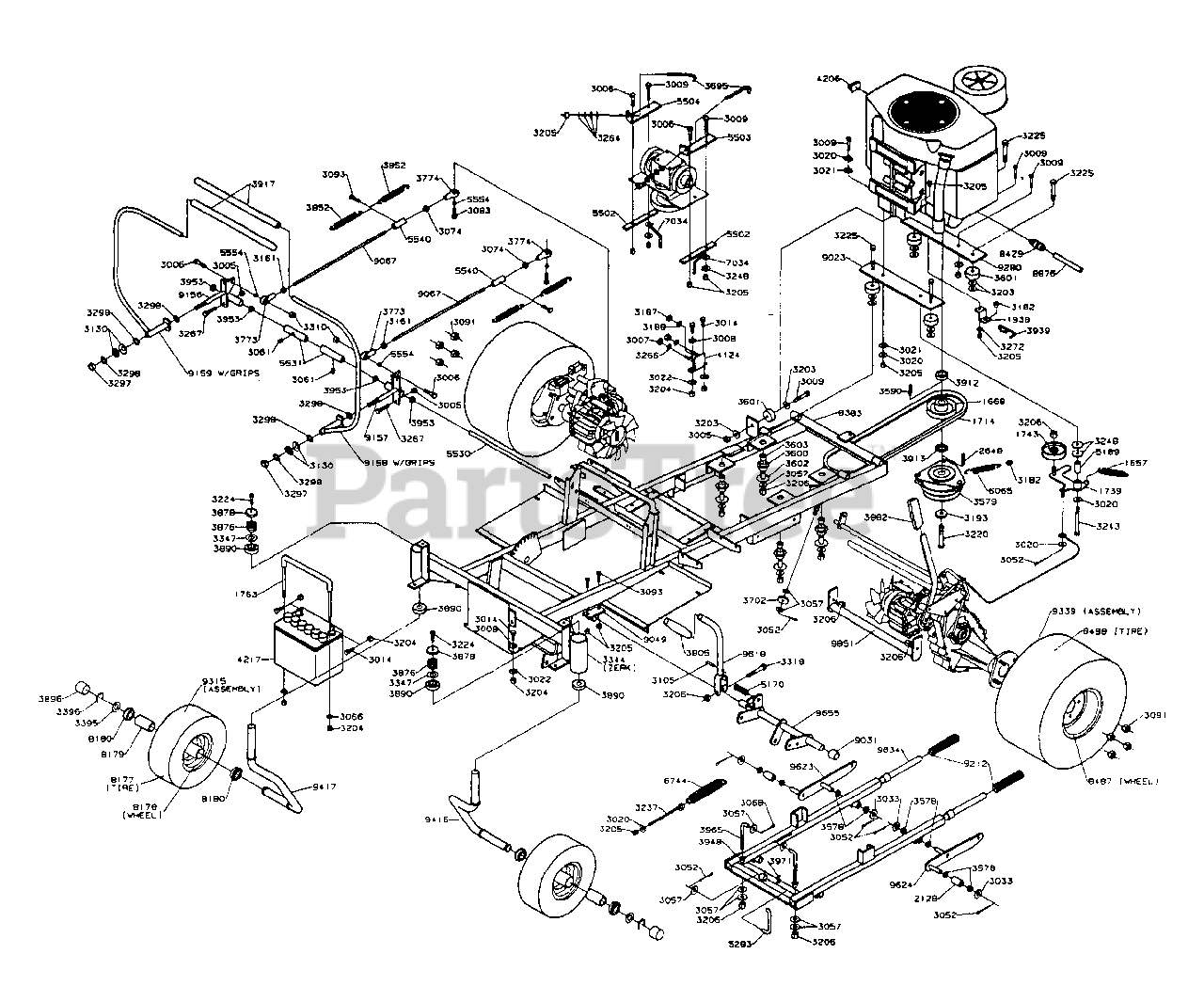

CHASSIS ASSEMBLY Parts Diagram

  • Title

1657

1657

SPRING

$

$

Not available

1668

1668

PULLEY DRIVE

$

$

Not available

1714

1714

DRIVE BELT

$

$

Not available

1739

1739

IDLER WELDMENT

$

$

Not available

1743

1743

1743-IDLER FLAT 3`

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

1938

1938

ANCHOR BRACKET

$

$

Not available

2128

2128

SLEEVE 7/8 X 1-1/2

$

$

Not available

2648

2648

KEY - 1/4 X .88

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3061

3061

5/16-18X3/8SSS-NY

$

$

Not available

3068

Dixon 3068

1/8DIA X1COTTER PIN

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3086

3086

1/4-20X1-1/4 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3105

3105

R/B 3105 14X1-1/4 HD SPIR PIN

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3187

3187

NUT, HEX #10-32

$

$

Not available

3188

Dixon 3188

LOCKWASHER #10 EST TOOTH

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3203

3203

3/8 SAE FLAT WASHER

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3237

3237

EYE BOLT 5/16 X 6.00

$

$

Not available

3243

3243

5/16-18X3-1/4 HHB GR5

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3264

3264

5/16 DISC SPRING HD

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3298

3298

WASHER.515X.874X.031

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3318

3318

3/8-16X2-1/4 HHB GR8

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3347

3347

R/B 3395 WASHER-1.033X1.5X.06

$

$

Not available

3395

Dixon 3395

R/B 3395 WASHER-1.033X1.5X.06

$

$

Not available

3396

Dixon 3396

RETAINER RING 1`

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3579

3579

ELECTRIC CLUTCH

$

$

Not available

3590

Dixon 3590

KEY 1/4 SQ X 1/2

$

$

Not available

3600

3600

R/B 3599 REBOUND MOUNT

$

$

Not available

3601

3601

LOAD MOUNT

$

$

Not available

3602

3602

R/B 3599 SPACER TUBE

$

$

Not available

3603

3603

R/B 3599 ISO INSERT

$

$

Not available

3695

3695

J-BOLT

$

$

Not available

3702

3702

PULLEY

$

$

Not available

3773

Dixon 3773

LH ROD END

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3805

3805

R/B 3805 HANDLE GRIP

$

$

Not available

3852

3852

SPRING

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3878

3878

$

$

Not available

3882

Dixon 3882

HAND GRIP-NOTCHED

$

$

Not available

3890

Dixon 3890

BEARING

$

$

Not available

3896

3896

HUB COVER

$

$

Not available

3912

3912

SPACER .50

$

$

Not available

3913

3913

SPACER .25

$

$

Not available

3917

Dixon 3917

BAR SLEEVE

$

$

Not available

3939

3939

CLUTCH ANCHOR

$

$

Not available

3948

3948

FLIP-LOK BUSHING

$

$

Not available

3953

3953

NYLON BUSHING

$

$

Not available

3965

3965

L-ROD 6.0

$

$

Not available

3971

3971

LINK RETAINER

$

$

Not available

3972

3972

5` B PULLEY

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4206

4206

BODY WIRE CLIP 1/2`

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

5170

5170

POS SPR(YELLOW ZINC CHRO

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5283

5283

R/B 5101 LINK

$

$

Not available

5502

5502

MOUNT SHIM

$

$

Not available

5503

5503

LH `T` BOX GUIDE

$

$

Not available

5504

5504

RH `T` BOX GUIDE

$

$

Not available

5530

5530

PIVOT SHAFT

$

$

Not available

5531

5531

ADJUSTABLE BUSHING

$

$

Not available

5540

5540

CONTROL TUBE

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

6744

6744

SPRING

$

$

Not available

7034

7034

BELT KEEPER

$

$

Not available

8177

8177

CASTER TIRE - 50`

$

$

Not available

8178

8178

CASTER RIM - 50`

$

$

Not available

8179

8179

CASTER BEARING

$

$

Not available

8180

8180

BEARING RETAINER 50`

$

$

Not available

8383

8383

503 FRAME ASSEMBLY

$

$

Not available

8429

8429

R/B 12237 OIL VALVE/HOSE ASM

$

$

Not available

8487

8487

REAR WHEEL-BLACK

$

$

Not available

8488

8488

REAR TIRE

$

$

Not available

8876

8876

OIL DRAIN HOSE 8`

$

$

Not available

9023

9023

ENGINE PLATE

$

$

Not available

9031

9031

LIFT TUBE

$

$

Not available

9049

9049

LIFT BUSHING WLDT

$

$

Not available

9057

9057

FRONT LIFT ROD

$

$

Not available

9067

9067

CONTROL ROD

$

$

Not available

9156

9156

RH SWIVEL PLT WLDT

$

$

Not available

9157

9157

LH SWIVEL PLT WLDT

$

$

Not available

9158

9158

R/B 9441 CONT LEVER W/GRIP LH

$

$

Not available

9159

9159

R/B 9441 CONT LEVER W/GRIP RH

$

$

Not available

9212

9212

SPRING(YELLOW ZINC CHROM

$

$

Not available

9280

9280

ENGINE PLATE WLDT

$

$

Not available

9315

9315

CASTER WHEEL & TIRE

$

$

Not available

9339

9339

REAR TIRE

$

$

Not available

9416

9416

CASTER AXLE WLDT LH

$

$

Not available

9417

9417

CASTER AXLE WLDT RH

$

$

Not available

9618

9618

R/B 9618 LIFT HANDLE WLDT

$

$

Not available

9623

9623

LIFT CAM DRILLED-RH

$

$

Not available

9624

9624

LIFT CAM DRILLED-LH

$

$

Not available

9634

9634

LIFT FRAME WELDMENT

$

$

Not available

9655

9655

LIFT SHAFT WLDT

$

$

Not available

9851

9851

TIE BAR WLDT.

$

$

Not available
