ZTR 5422 - Dixon Zero-Turn Mower (1996) MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

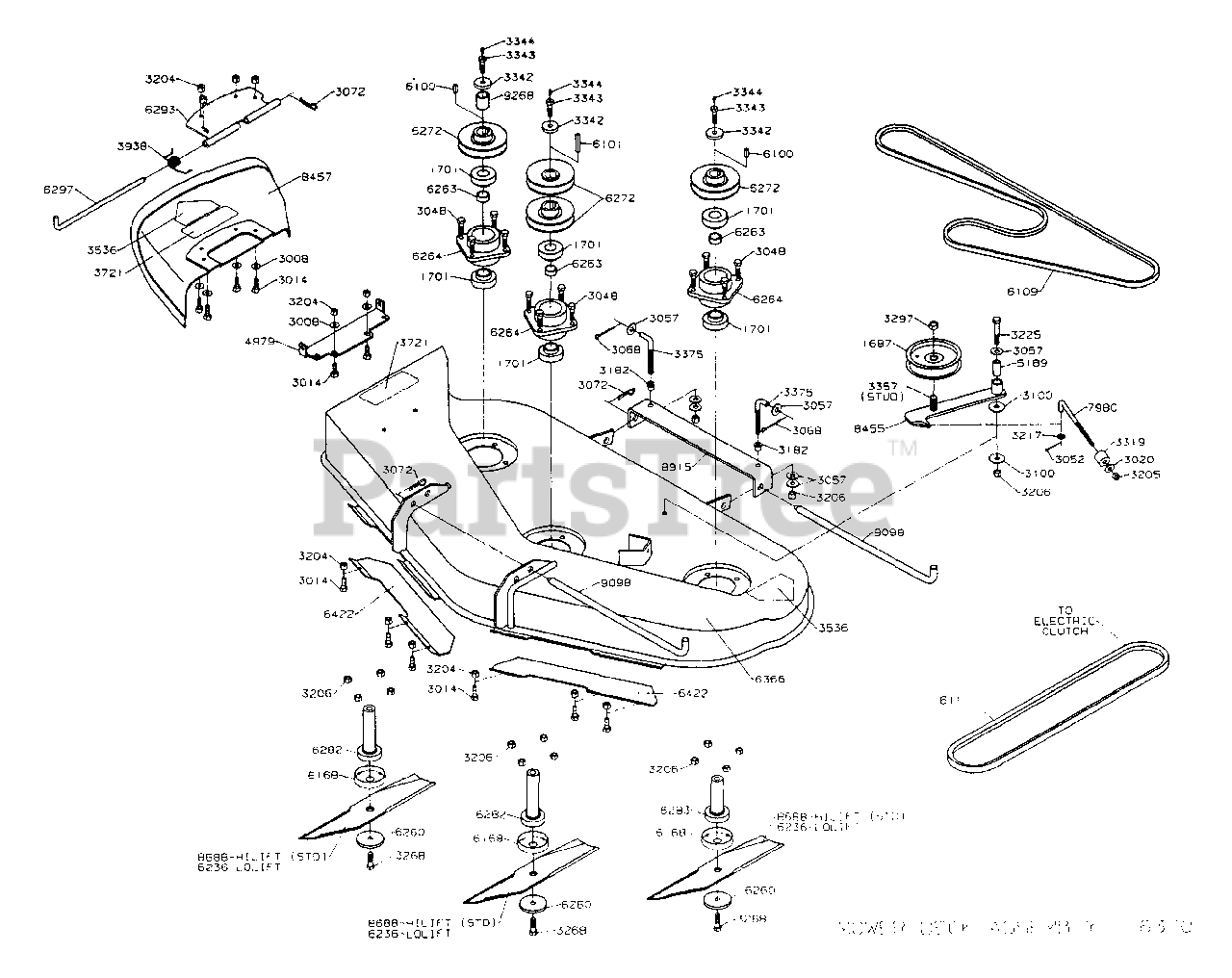

MOWER DECK ASSEMBLY Parts Diagram

  • Title

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3068

Dixon 3068

1/8DIA X1COTTER PIN

$

$

Not available

3072

3072

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3217

3217

1/4` SAE FLAT WASHER

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3268

3268

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3343

3343

HUB BOLT-DRILLED

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3357

3357

IDLER STUD

$

$

Not available

3375

3375

L-ROD 3.5

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

4979

4979

HINGE

$

$

Not available

5189

5189

BUSHING

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6109

6109

V-BELT SERPENTINE

$

$

Not available

6111

6111

V-BELT DECK DRIVE

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6236

6236

MOWER BLADE 42 STD

$

$

Not available

6260

6260

R/B 6260 WASHER

$

$

Not available

6263

6263

HUB SPACER - .459

$

$

Not available

6264

6264

DECK HUB W/ZERK

$

$

Not available

6272

6272

V-PULLEY

$

$

Not available

6282

6282

SHAFT ASM 42 L

$

$

Not available

6283

6283

SHAFT ASM 42 S

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

6366

6366

MOWER DECK WELDMENT

$

$

Not available

6370

6370

DECK ASM (5000)

$

$

Not available

6422

6422

BLOW-BY-BAFFLE

$

$

Not available

7980

7980

L-ROD

$

$

Not available

8455

8455

42 SERP IDLER W/STUD

$

$

Not available

8457

8457

42 DEFLECTOR W/DECAL

$

$

Not available

8688

8688

HI-LIFT BLADE-42`

$

$

Not available

8915

8915

LIFT PLATE ASM

$

$

Not available

9098

9098

HANGER ROD

$

$

Not available

9268

9268

R/B 7983 SPACER 1.25ODX1.14

$

$

Not available
