ZTR 5501 - Dixon Zero-Turn Mower (1994) MOWER DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

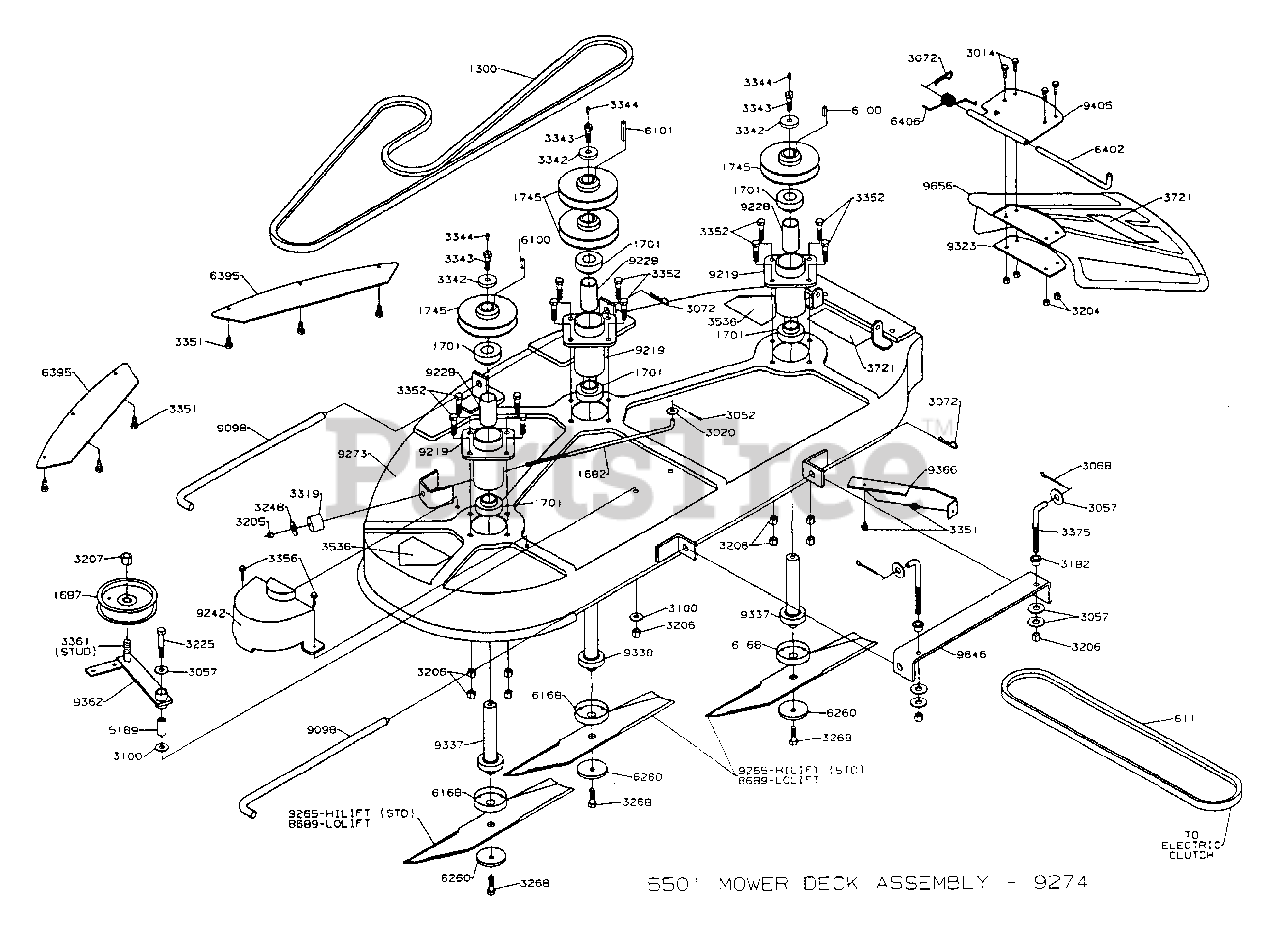

MOWER DECK ASSEMBLY Parts Diagram

  • Title

1300

1300

BELT-MOWER DRIVE

$

$

Not available

1682

1682

L` ROD

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1745

1745

4-1/2` B PULLEY

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3068

Dixon 3068

1/8DIA X1COTTER PIN

$

$

Not available

3072

3072

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3268

3268

3/8 24UNFX1 1/4HHBC5

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3343

3343

HUB BOLT-DRILLED

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3375

3375

L-ROD 3.5

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

5189

5189

BUSHING

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6101

6101

CENTER SHAFT KEY

$

$

Not available

6111

6111

V-BELT DECK DRIVE

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6260

6260

R/B 6260 WASHER

$

$

Not available

6395

6395

BLOW-BY BAFFLE 50`

$

$

Not available

6402

6402

DEFLECTOR PIN

$

$

Not available

6406

6406

SPRING

$

$

Not available

8689

Dixon 8689

BLD 50` STD LIFT

$

$

Not available

9098

9098

HANGER ROD

$

$

Not available

9219

9219

HUB WLDT MACHINED

$

$

Not available

9228

9228

HUB SPACER 2.439

$

$

Not available

9242

9242

PULLEY GUARD

$

$

Not available

9265

9265

R/B 9265 HI-LIFT BLADE

$

$

Not available

9273

9273

MOWER DECK WELDMENT

$

$

Not available

9274

9274

MOWER DECK ASSEMBLY

$

$

Not available

9323

9323

DEFLECTOR MT. PLATE

$

$

Not available

9337

9337

SHAFT-TAPPED(SHORT)

$

$

Not available

9338

9338

SHAFT-TAPPED(LONG)

$

$

Not available

9362

9362

IDLER ARM WLDT

$

$

Not available

9366

9366

DECK BAFFLE

$

$

Not available

9405

9405

DEFLECTOR MT BRKT

$

$

Not available

9646

9646

LIFT PLATE ASM

$

$

Not available

9656

9656

50` DEFLECTOR W DECAL

$

$
