ZTR 6025 - Dixon Zero-Turn Mower (2000) TANKS & FITTINGS & WIRING Parts Diagram

Zero-Turn Mower

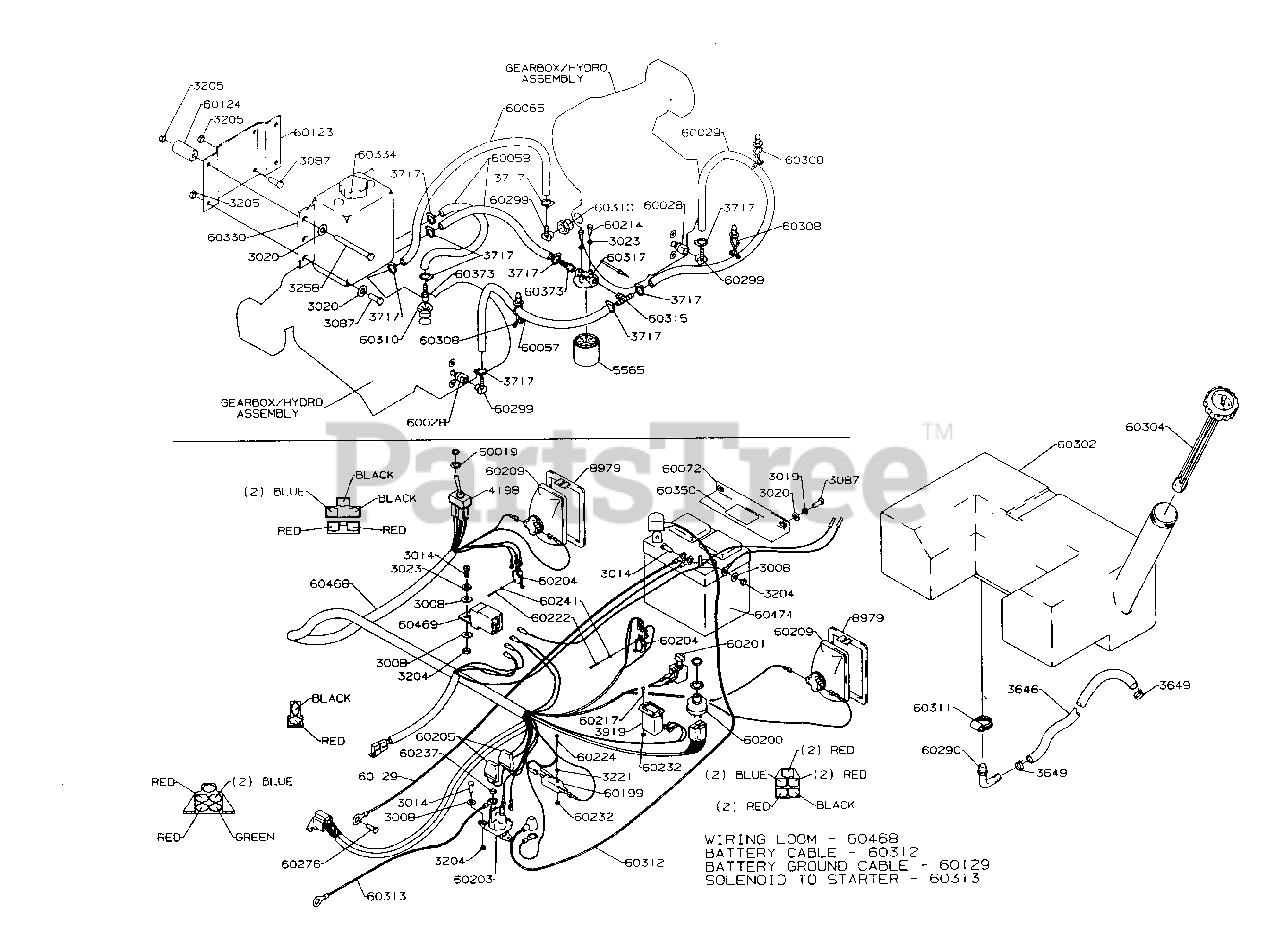

TANKS & FITTINGS & WIRING Parts Diagram

  • Title

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3221

3221

R/B 3145 #8 SAE FLAT WASHER

$

$

Not available

3258

3258

5/16-18X4-1/2 HHB GR8

$

$

Not available

3646

Dixon 3646

R/B 3646 HOSE 1/4 X 18

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3717

3717

CLAMP 3/8

$

$

Not available

3919

Dixon 3919

HOUR METER

$

$

Not available

4198

4198

CLUTCH SWITCH

$

$

Not available

5565

5565

R/B 7252 FILTER

$

$

Not available

8979

8979

HEADLIGHT BEZEL

$

$

Not available

60019

60019

D-WASHER

$

$

Not available

60028

60028

ADAPTER 7/16 SAE X 1/4

$

$

Not available

60029

60029

HOSE 3/8 X 26 1/2`

$

$

Not available

60057

60057

HOSE 13-1/2` LONG

$

$

Not available

60058

60058

HOSE 10-1/2` LONG

$

$

Not available

60065

60065

3/8`I.D. RUBBER HOSE 22`

$

$

Not available

60072

60072

BATTERY CLAMP ANGLE ASSE

$

$

Not available

60123

60123

TANK MOUNTING BRACKET

$

$

Not available

60124

60124

SPACER

$

$

Not available

60129

60129

$

$

Not available

60199

60199

SW ENCL SPDT 15A HINGED

$

$

Not available

60200

60200

KEY SWITCH 3 POS

$

$

Not available

60201

60201

SWITCH PUSH-PULL 10A 3/8

$

$

Not available

60203

60203

SOLENOID 12V STARTER 4

$

$

Not available

60204

60204

SWITCH SPDT MINIATURE

$

$

Not available

60205

60205

FUSE HLDER BUSS IN-LIN

$

$

Not available

60209

60209

HEADLIGHT SPEAKER 12VDC

$

$

Not available

60214

60214

CAPSCREW HX 1/4-20X5/8

$

$

Not available

60217

60217

MACH SCR RND 6-32X5/8 PH

$

$

Not available

60222

60222

SCREW #4-40UNC X 3/4`LG

$

$

Not available

60224

60224

MACH SCR RND 6-32X1 PHI

$

$

Not available

60232

60232

LOCKNUT #6-32 NYLOC

$

$

Not available

60237

60237

NUT 5/16-24UNF GR. 5 P

$

$

Not available

60241

60241

LOCKWASHER #4 INTERNAL

$

$

Not available

60276

60276

CAPSCREW M8 X 16MM G.5

$

$

Not available

60290

60290

ELBOW 90 D 1/4HS X1/4 NP

$

$

Not available

60299

60299

HOSE BARB 90 EL 1/4 NPTM

$

$

Not available

60302

60302

FUEL TANK: GEARDRIVE

$

$

Not available

60304

60304

FUEL GAUGE CAP

$

$

Not available

60308

60308

BLIND HOLE KURLY-LOC

$

$

Not available

60310

60310

ADAPTER 7/8-14 M. TO 1/

$

$

Not available

60311

60311

CLAMP .31MIN1.87 MAX HOS

$

$

Not available

60312

60312

CABLE BATTERY 33.75` W

$

$

Not available

60313

60313

CABLE STARTER 31.75` WO

$

$

Not available

60315

60315

TEE 1/4NPT X 3/8 X 3/8

$

$

Not available

60317

60317

FILTER HEAD 1/4 NPT

$

$

Not available

60330

60330

TANK 3 QT.

$

$

Not available

60334

60334

CAP OPEN COVERED VENT

$

$

Not available

60350

60350

TAG BATTERY CABLE REMOVA

$

$

Not available

60373

60373

BARB 3/8` HOSE 1/4` NPT

$

$

Not available

60468

60468

WIRING LOOM

$

$

Not available

60469

60469

SEAT SWITCH RELAY

$

$

Not available

60474

Dixon 60474

BATTERY

$

$

Not available
