ZTR 6025 - Dixon Zero-Turn Mower (2001) CONTROL LEVERS & PARKING BRAKE Parts Diagram

Zero-Turn Mower

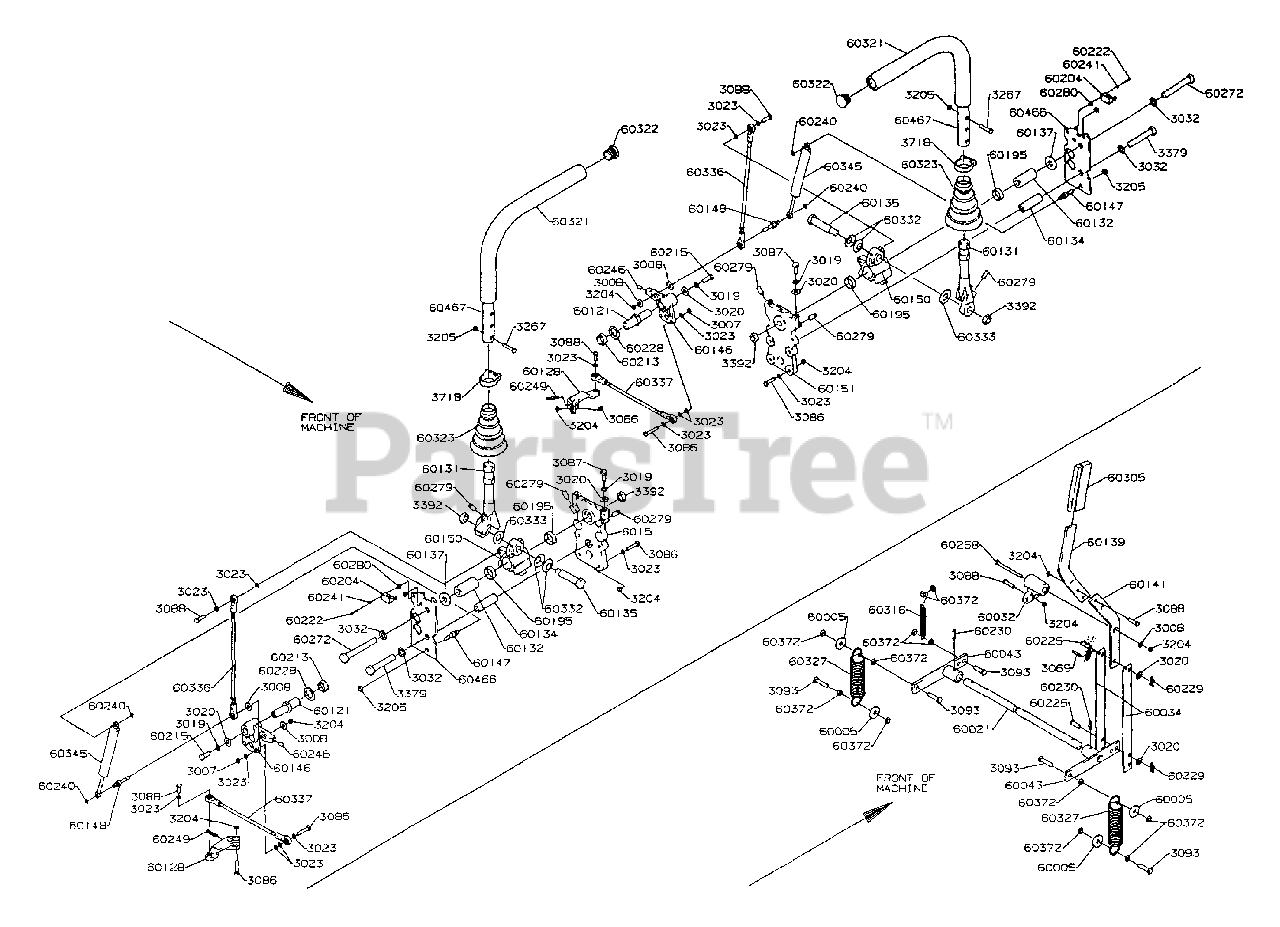

CONTROL LEVERS & PARKING BRAKE Parts Diagram

  • Title

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3032

3032

1/2 HELICAL L-WASHER

$

$

Not available

3069

3069

3/16DIAX7/8 SPIR PIN

$

$

Not available

3086

3086

1/4-20X1-1/4 HHB GR5

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3267

3267

5/16-18X1-1/2 HHB G5

$

$

Not available

3379

3379

1/2-13X3 HHB GR5

$

$

Not available

3392

3392

NUT, HEX JAM 1/2-13

$

$

Not available

3718

3718

5/8 CLAMP

$

$

Not available

60005

60005

SPINDLE SPACER REINFORCE

$

$

Not available

60021

60021

BRAKE ROD PLATED

$

$

Not available

60032

60032

BRAKE LEVER MOUNT CAST

$

$

Not available

60034

60034

BRAKE HANDLE LINK

$

$

Not available

60043

60043

BRAKE ARM WLDT

$

$

Not available

60121

60121

LINKAGE PINTLE PLATED

$

$

Not available

60128

60128

SHIFT ARM MM&OF MWR W/SO

$

$

Not available

60131

60131

LEVER DUAL LEVER

$

$

Not available

60132

60132

PINTLE BUSHING DUALEVER

$

$

Not available

60134

60134

BUSHING DUAL LEVER STAN

$

$

Not available

60135

60135

SCRW SHLDR 5/8 OD-PLATED

$

$

Not available

60137

60137

WASHER GALV .531ID X 1

$

$

Not available

60139

60139

UPPER BRAKE HANDLE

$

$

Not available

60141

60141

$

$

Not available

60146

60146

LINKAGE DISC ASS`Y DG-L

$

$

Not available

60147

60147

DAMPER BLT5/16-18X3PLATD

$

$

Not available

60148

60148

DAMPER BOLT 1/4-20 X 1-

$

$

Not available

60150

60150

PIVOT BLOCK DUAL-GLIDE

$

$

Not available

60151

60151

R/B 60658 BASE:DUAL-GLIDE NO

$

$

Not available

60195

60195

BEARING PLAIN 1`ID X 1

$

$

Not available

60198

60198

$

$

Not available

60204

60204

SWITCH SPDT MINIATURE

$

$

Not available

60213

60213

NUT HEX 3/4-10 UNC-2B

$

$

Not available

60215

60215

CAPSCREW HX 5/16-18X7/8

$

$

Not available

60222

60222

SCREW #4-40UNC X 3/4`LG

$

$

Not available

60225

60225

CLEVIS PIN 5/16 X 7/8 LO

$

$

Not available

60228

60228

LOCKWASHER 3/4 STD SPLIT

$

$

Not available

60229

60229

COTTER RUE RING 5/16-3/

$

$

Not available

60230

60230

R/B 3054 PIN SPIROL 3/16 X 1

$

$

Not available

60240

60240

RETAINING RING EXTERNAL

$

$

Not available

60241

60241

LOCKWASHER #4 INTERNAL

$

$

Not available

60246

60246

SCREW HX SCKT 1/2 DOG S

$

$

Not available

60249

60249

SPIROL PIN 5MMX26MM S.

$

$

Not available

60258

60258

HHCS 1/4-20X3 GR5

$

$

Not available

60272

60272

CAPSCREW 1/2-13X3-1/2

$

$

Not available

60279

60279

SETSCREW SOCKET 5/16-18

$

$

Not available

60280

60280

PLASTI-GROMMET:FASTEX SM

$

$

Not available

60305

60305

R/B 3882 GRIP HANDLE

$

$

Not available

60316

60316

SPRING EXT. 7/16 X 2-1

$

$

Not available

60321

60321

GRIP, FOAM (GROUND) 15

$

$

Not available

60322

60322

END PLUG 15/16` (BLACK)

$

$

Not available

60323

60323

BOOT FOR 2 LEV CONTROL

$

$

Not available

60327

60327

SPRING EXT. 1 1/4O.D.X

$

$

Not available

60332

60332

WASH 5/8 BEVELED DISC SPRING

$

$

Not available

60333

60333

WSHR VULC FIBER:.637X1.2

$

$

Not available

60336

60336

UPPER LINKAGE ASSY 2-LEV

$

$

Not available

60337

60337

LOWER LINKAGE ASSY 2-LEV

$

$

Not available

60345

60345

DAMPNER DUAL ACITON #326

$

$

Not available

60372

60372

5/16-18 LOCKNUT STOVER

$

$

Not available

60466

60466

SIDE PLATE

$

$

Not available

60467

60467

CONTROL LEVER

$

$

Not available
