ZTR 6601 - Dixon Zero-Turn Mower (1995) GEARBOX ASSEMBLY Parts Diagram

Zero-Turn Mower

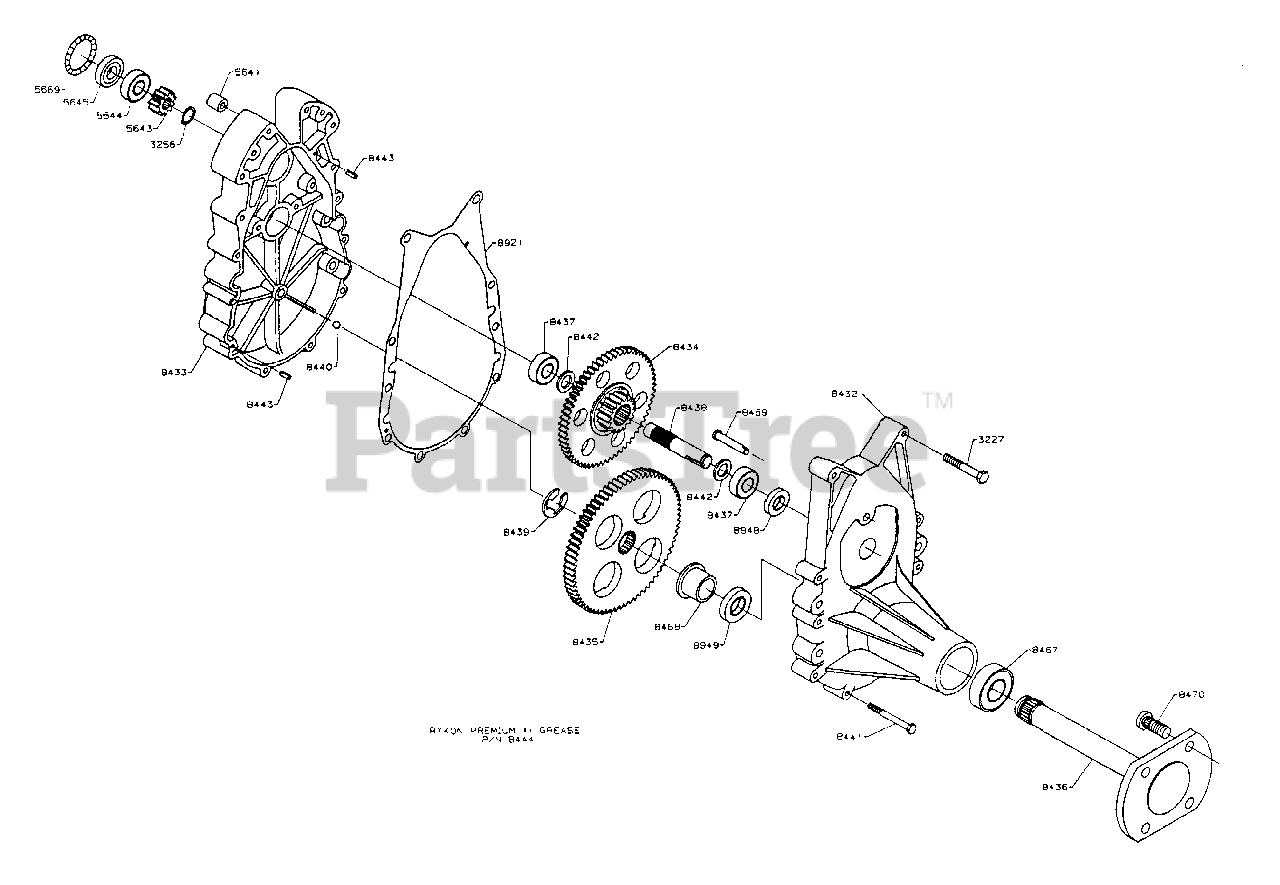

GEARBOX ASSEMBLY Parts Diagram

  • Title
3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3256

3256

SNAP RING

$

$

Not available

5641

5641

G-BOX MOUNT SPACER

$

$

Not available

5643

5643

INPUT GEAR - GB

$

$

Not available

5644

5644

BEARING - GEARBOX

$

$

Not available

5645

5645

BEARING SPACER - GB

$

$

Not available

5669

5669

O RING

$

$

Not available

8432

8432

AXLE HOUSING ASM.

$

$

Not available

8433

8433

$

$

Not available

8434

8434

SPL REDUC GEAR KIT

$

$

Not available

8435

8435

5/8ID NO-SR BEARING

$

$

Not available

8436

8436

AXLE ASM.

$

$

Not available

8437

8437

BALL BEARING

$

$

Not available

8438

8438

BRAKE SHAFT

$

$

Not available

8439

8439

E RING

$

$

Not available

8440

8440

$

$

Not available

8441

8441

BOLT 1/4-20 X2 1/2

$

$

Not available

8442

8442

WASHR-.62X1.0X.05

$

$

Not available

8443

8443

SPG PIN 3/16 X 1/2

$

$

Not available

8444

8444

TYPE O GREASE (TUBE)

$

$

Not available

8467

8467

BALL BEARING (44673)

$

$

Not available

8468

8468

FLANGED BRG

$

$

Not available

8469

8469

BRAKE PIN

$

$

Not available

8470

8470

LUG BOLT

$

$

Not available

8921

8921

GB GASKET#50223

$

$

Not available

8948

8948

BRAKE SHAFT SEAL

$

$

Not available

8949

8949

OUTPUT SHAFT SEAL

$

$

Not available
