ZTR 7523 - Dixon Zero-Turn Mower (2002) CHASSIS Parts Diagram

Zero-Turn Mower

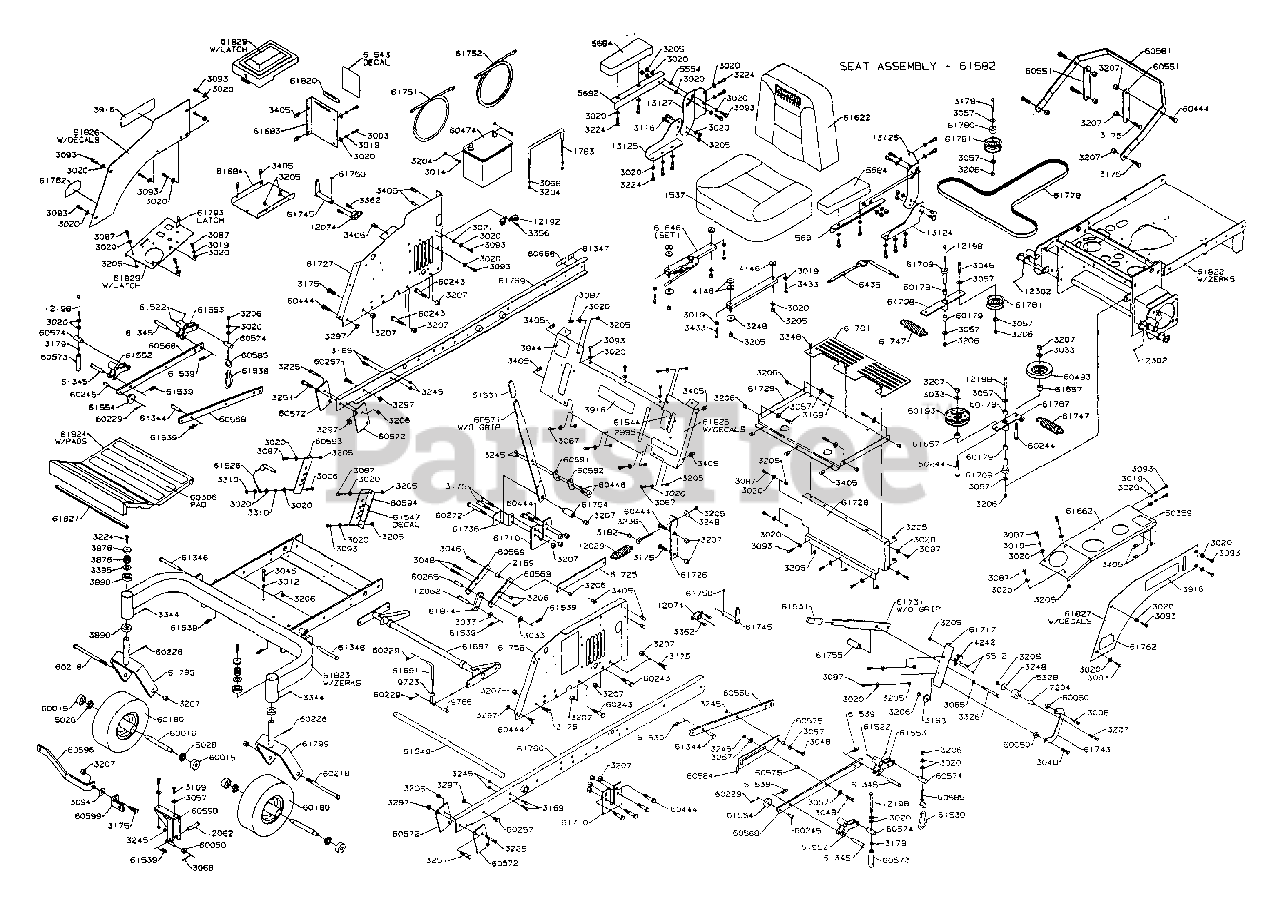

CHASSIS Parts Diagram

  • Title

1537

1537

SEAT BOTTOM

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

2159

2159

TUBE .51 I.D. X .75 O.D.

$

$

Not available

2995

2995

COMMERCIAL DECAL

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3012

3012

3/8-16 UNC HEX NUT

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3046

3046

3/8-16UNCX2 HH BLT

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3065

3065

3/8HELICAL L-WASHER

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3068

Dixon 3068

1/8DIA X1COTTER PIN

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3097

3097

6-32X1-1/2 RD HD SCW

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3175

3175

$

$

Not available

3178

3178

3/8-16X2 1/2 HHBG5

$

$

Not available

3179

Dixon 3179

3/8-16 HEX JAM NUT

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3236

3236

EYE BOLT 5/16 X 3.50

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3251

3251

BOLT 1/2-13 X 2 HH

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3326

3326

3/8-16X4 HHB GR8

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3348

3348

5/16-18X3/4 HWH TFS

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3362

3362

5/16-18X3/4 HWH TFS

$

$

Not available

3395

Dixon 3395

R/B 3395 WASHER-1.033X1.5X.06

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3433

3433

5/16-18X1-1/2 HHB GR5WNY

$

$

Not available

3844

3844

DECAL, HYDRO-GEAR

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3878

3878

$

$

Not available

3890

Dixon 3890

BEARING

$

$

Not available

3916

Dixon 3916

R/B 3916 DECAL - DIXON

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5028

5028

TRANSAXLE BEARING

$

$

Not available

5328

Dixon 5328

RUBBER SPRING-CRADLE

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

5684

5684

ARMREST

$

$

Not available

5691

5691

L.H. ARM REST BRACKET

$

$

Not available

5692

5692

R.H. ARM REST BRACKET

$

$

Not available

6435

6435

SEAT SWITCH ASSEMBLY

$

$

Not available

6512

6512

#10-32X1/2` HHTRS

$

$

Not available

7204

7204

ISO-MOUNT SPACER

$

$

Not available

9723

9723

CLEVIS

$

$

Not available

9766

Dixon 9766

CLEVIS PIN

$

$

Not available

12029

12029

SPRING

$

$

Not available

12062

12062

CLEVIS PIN 2-1/2

$

$

Not available

12074

12074

FLANGED BEARING

$

$

Not available

12192

12192

INSULATED STRAP (LARGE)

$

$

Not available

12198

12198

3/8-16 X 3` HHB

$

$

Not available

12302

12302

GREASE ZERK-1/4"

$

$

Not available

13124

13124

R/B 13124 L.H. SEAT BOTTOM BR

$

$

Not available

13125

13125

R/B 13125 R.H. SEAT BOTTOM BR

$

$

Not available

13126

13126

R/B 13126 LH SEAT BACK BRACKE

$

$

Not available

13127

13127

R/B 13127 RH SEAT BACK BRACKE

$

$

Not available

60015

60015

SHIELD BEARING

$

$

Not available

60016

60016

SPACER BEARING

$

$

Not available

60050

60050

WHEEL ROLLER FOOT DECK

$

$

Not available

60179

60179

BUSHING DX. 5/8X3/4X3/4

$

$

Not available

60180

60180

TIRE 13X5-6 W/WHEEL R

$

$

Not available

60193

60193

PULLEY FLAT IDLER

$

$

Not available

60218

60218

CAPSCREW HX 1/2-13 X 8

$

$

Not available

60226

60226

PIN SPIROL 3/16 X 2` M

$

$

Not available

60229

60229

COTTER RUE RING 5/16-3/

$

$

Not available

60243

60243

CAPSCREW 1/2-13X2-1/4

$

$

Not available

60244

60244

CAPSCREW 1/2-13X2-3/4

$

$

Not available

60245

60245

CLEVIS PIN 3/8 X 1

$

$

Not available

60257

60257

CAPSCREW HEXHEAD 1/2-13

$

$

Not available

60265

60265

CLEVIS PIN 1/2X1-1/2` L

$

$

Not available

60272

60272

CAPSCREW 1/2-13X3-1/2

$

$

Not available

60306

60306

SAFETY TREAD 2` X 18`

$

$

Not available

60359

60359

DECAL, CAUTION SHUT OFF

$

$

Not available

60444

60444

HH CAPSCREW 1/2-13X1-1/4

$

$

Not available

60446

60446

3/8-16X1-1/4 CARRIAGE

$

$

Not available

60474

Dixon 60474

BATTERY

$

$

Not available

60493

60493

PULLEY V-IDLER 4.48 O.

$

$

Not available

60551

60551

ENGINE GUARD MT.LEG

$

$

Not available

60568

60568

LINK BAR

$

$

Not available

60569

60569

SPRING ANCOR PLT.

$

$

Not available

60571

60571

LIFT HANDLE

$

$

Not available

60572

60572

DRAG BAR MT. TAB

$

$

Not available

60573

60573

ADJUSTABLE HANGER END

$

$

Not available

60574

60574

TOP HANGER PIN

$

$

Not available

60575

60575

TOP PEG HANGER

$

$

Not available

60581

60581

ENGINE GUARD

$

$

Not available

60584

60584

DECK LATCH (FLIP UP)

$

$

Not available

60585

60585

R/B 61920 EYE BOLT WLDT

$

$

Not available

60591

60591

TOP PEG SPACER PLATE

$

$

Not available

60592

60592

TOP PEG LATCH PLATE

$

$

Not available

60593

60593

LATCH PLATE (BLUE) RH

$

$

Not available

60594

60594

LATCH PLATE (BLUE) LH

$

$

Not available

60596

60596

SWAY BAR

$

$

Not available

60598

60598

SWAY BRACE MOUNT UPPER

$

$

Not available

60599

60599

SWAY BAR TRACTOR

$

$

Not available

60668

60668

$

$

Not available

61344

61344

CLEVIS PIN 1/2X1-3/4LG

$

$

Not available

61345

61345

CLEVIS PIN 1/2X2-3/4 LG

$

$

Not available

61346

61346

CLEVIS PIN 1/2X4-3/4 LG

$

$

Not available

61347

61347

$

$

Not available

61522

61522

R/B 61522 ROLL PIN 5/16X1.75

$

$

Not available

61526

61526

R/B 61526 2.4`CLEVIS PIN ASSY

$

$

Not available

61531

61531

R/B 61531 BLK VINYL GRP F/3/8

$

$

Not available

61538

61538

R/B 61905 SPRING SNAP LOAD R

$

$

Not available

61539

61539

R/B 61539 RUE RING 1/2`PIN

$

$

Not available

61543

61543

R/B 61543 WARNING DECAL

$

$

Not available

61544

61544

R/B 61544 PARK BRAKE DECAL

$

$

Not available

61547

61547

R/B 61547 CUT HEIGHT DECAL

$

$

Not available

61549

61549

R/B 61549 LIFT BAR (PLATED)

$

$

Not available

61552

61552

R/B 61552 LIFT SLEEVE FRONT

$

$

Not available

61553

61553

R/B 61553 LIFT SLEEVE REAR

$

$

Not available

61554

61554

R/B 61554 ROLLER

$

$

Not available

61582

61582

R/B 61582 ` SEAT WITH SWITCH

$

$

Not available

61622

61622

SEAT BACK

$

$

Not available

61646

61646

SEAT SLIDE (SET)

$

$

Not available

61657

61657

BUSHING

$

$

Not available

61662

61662

FENDER CAP LH

$

$

Not available

61683

61683

REAR FENDER

$

$

Not available

61684

61684

BATTERY TRAY

$

$

Not available

61691

61691

L-ROD

$

$

Not available

61697

61697

PARKING BRAKE WLDT.

$

$

Not available

61701

61701

FAN GUARD

$

$

Not available

61708

61708

IDLER ARM WLDT.

$

$

Not available

61709

61709

IDLER SPACER

$

$

Not available

61710

61710

BRAKE ROD BRKT.

$

$

Not available

61717

61717

BRAKE SWITCH BRKT.

$

$

Not available

61725

61725

DECK SPRING EXTENSION

$

$

Not available

61726

61726

ANGLE SPRING MOUNT

$

$

Not available

61727

61727

SIDE FRAME-RIGHT

$

$

Not available

61728

61728

REAR SEAT BRACE PANEL

$

$

Not available

61729

61729

SEAT PLATE

$

$

Not available

61731

61731

BRAKE HANDLE

$

$

Not available

61736

61736

HANDLE PIVOT BRKT.

$

$

Not available

61743

61743

BRAKE BUMPER MT.

$

$

Not available

61745

61745

CONTROL ARM WLDT(PLATED)

$

$

Not available

61747

61747

5` SPRING

$

$

Not available

61750

61750

SCREW, CAP 5MM X .08 X3/4

$

$

Not available

61751

61751

$

$

Not available

61752

61752

POSITIVE BATTERY CABLE

$

$

Not available

61754

61754

DECK LIFT HANDLE BUSHING

$

$

Not available

61755

61755

BRAKE HANDLE BUSHING

$

$

Not available

61758

61758

SIDE FRAME WLDT.

$

$

Not available

61760

61760

SIDE RAIL WLDT LEFT

$

$

Not available

61762

61762

DECAL MODEL 7523

$

$

Not available

61778

61778

BELT-POLY RIB 49`

$

$

Not available

61780

61780

SPACER

$

$

Not available

61781

61781

IDLER PULLEY

$

$

Not available

61787

61787

IDLER ARM WLDT.

$

$

Not available

61799

61799

CASTER SHAFT WLDT.

$

$

Not available

61814

61814

R/B 61814 HANDLE LINK

$

$

Not available

61820

61820

$

$

Not available

61821

61821

$

$

Not available

61822

61822

$

$

Not available

61823

61823

FRONT AXLE WLDT (FIXED)

$

$

Not available

61824

61824

R/B 61398 FOOT DECK ASM

$

$

Not available

61825

61825

FRONT PANEL W/DECALS

$

$

Not available

61826

61826

RH FENDER W/DECALS

$

$

Not available

61827

61827

LH FENDER W/DECALS

$

$

Not available

61828

61828

CONTROL PANEL W/LATCH

$

$

Not available

61829

61829

BAT. COVER W/LATCH

$

$

Not available
