ZTS1-42 KH FAB (17ARGBYEA10) - Cub Cadet Ultima 42" Zero-Turn Mower, Fab Deck, Kohler (2024) Tilt Controls Parts Diagram

Ultima 42" Zero-Turn Mower, Fab Deck, Kohler

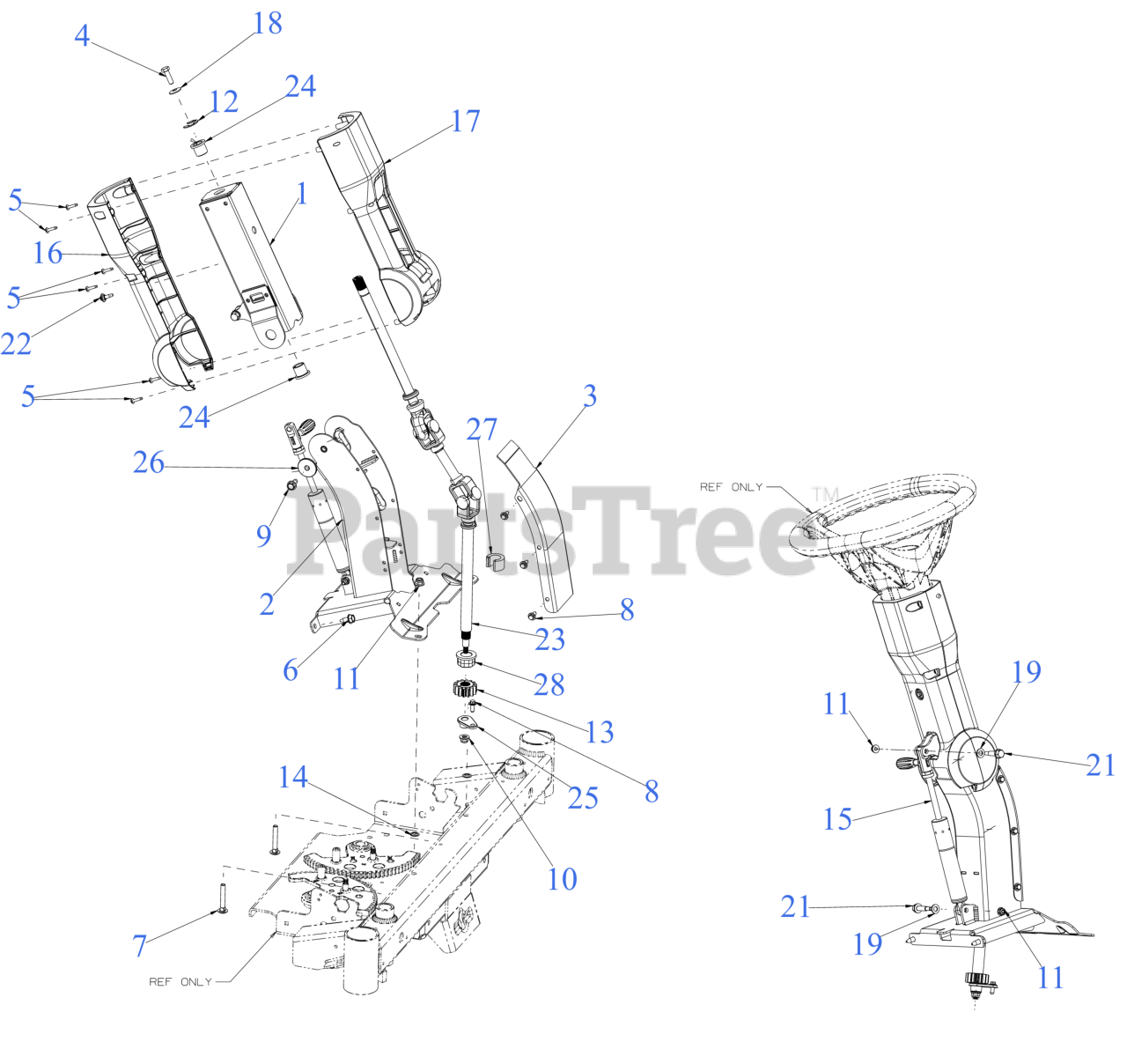

Tilt Controls Parts Diagram

  • Title

1

Cub Cadet 603-08703A

STEERING COLUMN (UPPER)

Note: *CHOOSE COLOR WHEN ORDERING*

$103.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-08732B

STEERING COLUMN (LOWER)

Note: (2/23/2024 & Before) *CHOOSE COLOR WHEN ORDERING*

$192.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-08974

LOWER STEERING COLUMN

Note: (2/23/2024 & After) *CHOOSE COLOR WHEN ORDERING*

$179.99

$

Usually ships in 0 days

0

3

Cub Cadet 703-27495

STEERING COLUMN COVER

Note: *CHOOSE COLOR WHEN ORDERING*

$34.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0117A

HEX HEAD CAP SCREW 5/16-24 x 1.00 GR5

$5.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04532

CARRIAGE BOLT 5/16-18 x 2.00 GR5

$6.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1260A

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 716-0231

E-RING

$4.49

$

In Stock, Qty 18

0

13

Cub Cadet 717-06858

STEERING GEAR 14T

Note: (2/9/2024 & After)

$13.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 717-04960

STEERING GEAR 14T

Note: (2/9/2024 & Before)

$14.99

$

In Stock, Qty 6

0

14

Cub Cadet 726-0201

PUSH NUT

$7.49

$

In Stock, Qty 20+

0

15

Cub Cadet 727-05836A

TILT STEERING CYLINDER

$110.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-27026

STEERING COLUMN COVER (BACK)

$17.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-27027

STEERING COLUMN COVER (FRONT)

$17.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0242

BELL WASHER .337 X.867 x .057

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0264

FLAT WASHER

$7.49

$

In Stock, only 2 left!

0

21

Cub Cadet 738-04185

SHOULDER SCREW

$9.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 6

0

23

Cub Cadet 738-07344

STEERING SHAFT

Note: (6/7/2024 & After)

$

$

Not available

23

Cub Cadet 738P07315

STEERING SHAFT

Note: (6/7/2024 & Before)

$145.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 741-0685A

FLANGE BEARING .631 ID

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 741-07140

FLANGE BEARING

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 748-06928

SHOULDER SPACER

$2.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 731-05297

SPACER: .76ID x .75

Note: (2/9/2024 & After)

$10.99

$

In Stock, only 4 left!

0

27

Cub Cadet 731-05791

SNAP SPACER

Note: (2/9/2024 & Before)

$5.99

$

In Stock, only 2 left!

0

28

Cub Cadet 741-04499

HEX FLANGE BEARING

Note: (6/7/2024 & After)

$13.99

$

In Stock, only 2 left!

0

28

Cub Cadet 948-0227A

HEX FLANGE BEARING

Note: (6/7/2024 & Before)

$8.99

$

In Stock, Qty 16

0
