ZTS1-50 KH FAB (17ARGBYLA10) - Cub Cadet Ultima 50" Zero-Turn Mower, Fab Deck, Kohler (2023) Drive Parts Diagram

Ultima 50" Zero-Turn Mower, Fab Deck, Kohler

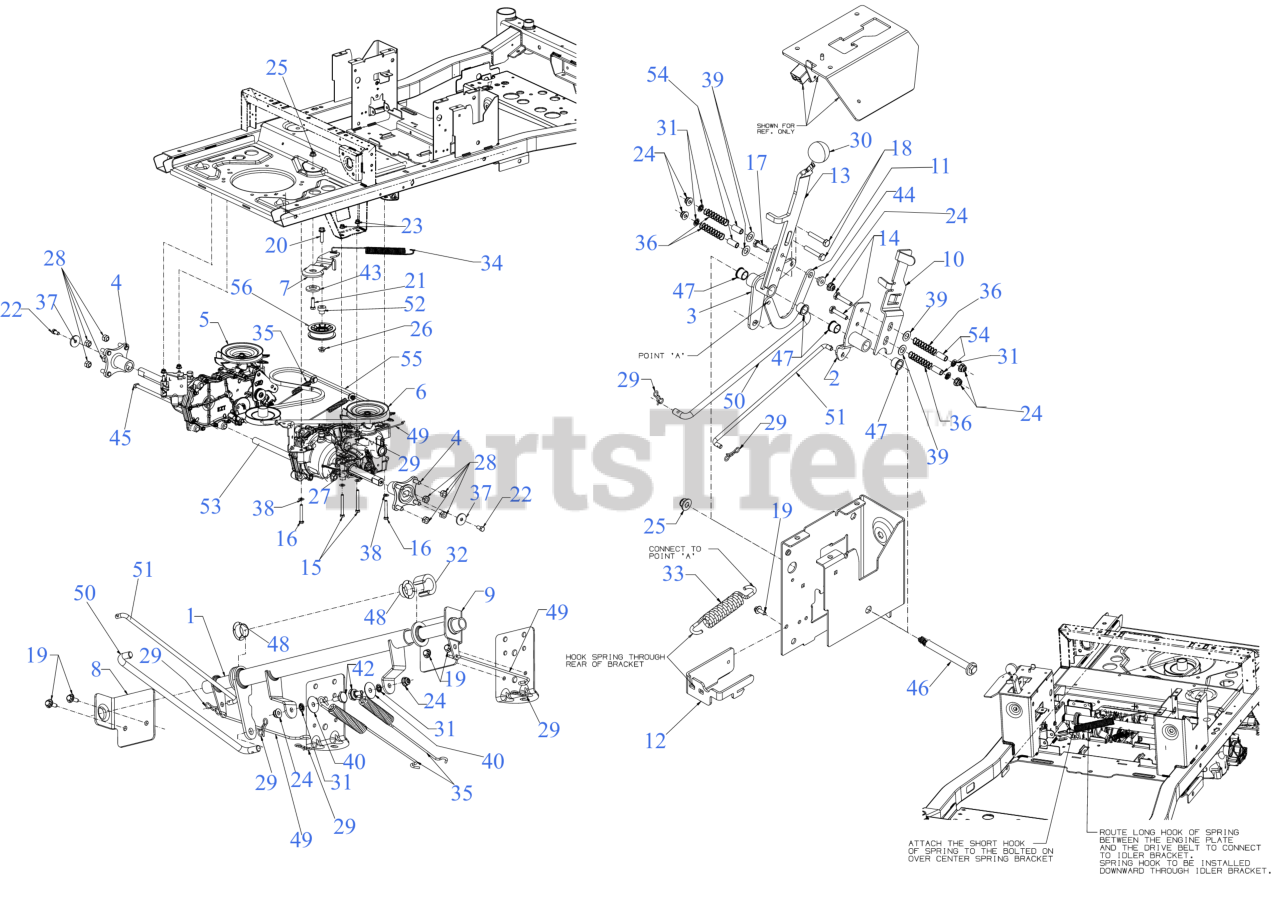

Drive Parts Diagram

  • Title

1

Cub Cadet 603-08712A

BRAKE PIVOT SHAFT

Note: *CHOOSE COLOR WHEN ORDERING*

$79.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603Z08714A

BYPASS LEVER PIVOT ARM

$46.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603Z08802

PARK BRAKE PIVOT ARM

$51.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-04317

WHEEL HUB ASSEMBLY

$116.99

$

In Stock, Qty 10

0

4

Cub Cadet 710-0852

STUD 7/16-14 x 1.6

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet 618P09952

TRANSMISSION (LH)

Note: (See Separate Breakdown)

$1101.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 618P09953

TRANSMISSION (RH)

Note: (See Separate Breakdown)

$1101.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703E26186

HYDRO DRIVE IDLER BRACKET

$25.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-26997

BRAKE SHAFT SUPPORT (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$19.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-26998

BRAKE SHAFT SUPPORT (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$19.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-26999A

TRANSMISSION BYPASS LEVER

Note: *CHOOSE COLOR WHEN ORDERING*

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-27003

OVER CENTER LINK

Note: *CHOOSE COLOR WHEN ORDERING*

$7.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-27007A

SPRING MOUNTING BRACKET

$32.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-27845

PARK BRAKE LEVER
(Superseded to 703-27845A)

$44.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0106

HEX SCREW 1/4-20 x 1.25

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0176

HEX SCREW 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.99

$

In Stock, Qty 6

0

17

Cub Cadet 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 18

0

18

Cub Cadet 710-0606

SCREW 1/4-20 x 1.50 GR.5

$5.49

$

In Stock, Qty 13

0

19

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-06749

HEX HEAD BOLT (3/8-16:1.50 GR8)

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-3119

SCREW 3/8-16 x .75 GR 5

$6.99

$

In Stock, Qty 6

0

23

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0459

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-3050

LUG NUT 7/16-14

$9.99

$

In Stock, Qty 20+

0

29

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

30

Cub Cadet 720-05972

PARK BRAKE BALL KNOB

$13.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 726-0233

RETAINER-BOLT .25ID x .50OD

$4.49

$

In Stock, Qty 7

0

32

Cub Cadet 731-05297

SPACER: .76ID x .75

$9.99

$

In Stock, only 2 left!

0

33

Cub Cadet 732-05966A

EXTENSION SPRING .57 x 5.38

$8.99

$

In Stock, only 1 left!

0

34

Cub Cadet 732-06226

EXTENSION SPRING .75 DIA X 10.27

$15.99

$

In Stock, Qty 7

0

35

Cub Cadet 732-08318A

EXTENSION SPRING .60 DIAx8.69

$9.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 732-0962

COMPRESSION SPRING

$4.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 736-0227

FLAT WASHER .390x1.500x.134

$6.49

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0278

FLAT WASHER

$5.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0314

WASHER THRUST .375X.70X.030

$6.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 736-3092

FLAT WASHER

$3.99

$

In Stock, Qty 9

0

42

Cub Cadet 938-0255

SHOULDER SCREW

$5.49

$

In Stock, Qty 10

0

43

Cub Cadet 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

44

Cub Cadet 738-04483

SHOULDER SPACER

$3.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 738-05314

SUPPORT TUBE ROD

$15.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 738-05694

SHOULDER SCREW .491x3.937 3/8-16

$5.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 741-0748

FLANGE BUSHING

$11.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 741-3084

FLANGE BEARING .75 x 1.125 x .375

$5.49

$

In Stock, Qty 7

0

49

Cub Cadet 747-11655

HYDRO BYPASS ROD

$2.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 747-11659

BRAKE LINK

$15.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 747-11660

BYPASS LINK

$12.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

53

Cub Cadet 750-07210

SUPPORT TUBE

$23.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 750-10995

SPACER .252x.350x.760

$2.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 954-04317A

TRANSMISSION DRIVE BELT A x 67

$50.99

$

In Stock, Qty 20+

0

55

Cub Cadet 490-501-C069

Cub Cadet TRANS DRIVE BELT A x 67 RZT

Note: Retail Packaged Part

$50.99

$

In Stock, Qty 5

0

55

Cub Cadet 490-501-Y069

Troy-Bilt TRANSMISSION DRIVE BELT

Note: Retail Packaged Part

$50.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 756-05032

FLAT IDLER PULLEY 3.00 OD

$26.99

$

In Stock, Qty 17

0
