ZTT-1850 (13AT626G190) - White Outdoor 42" Zero-Turn Tractor (2001)

42" Zero-Turn Tractor

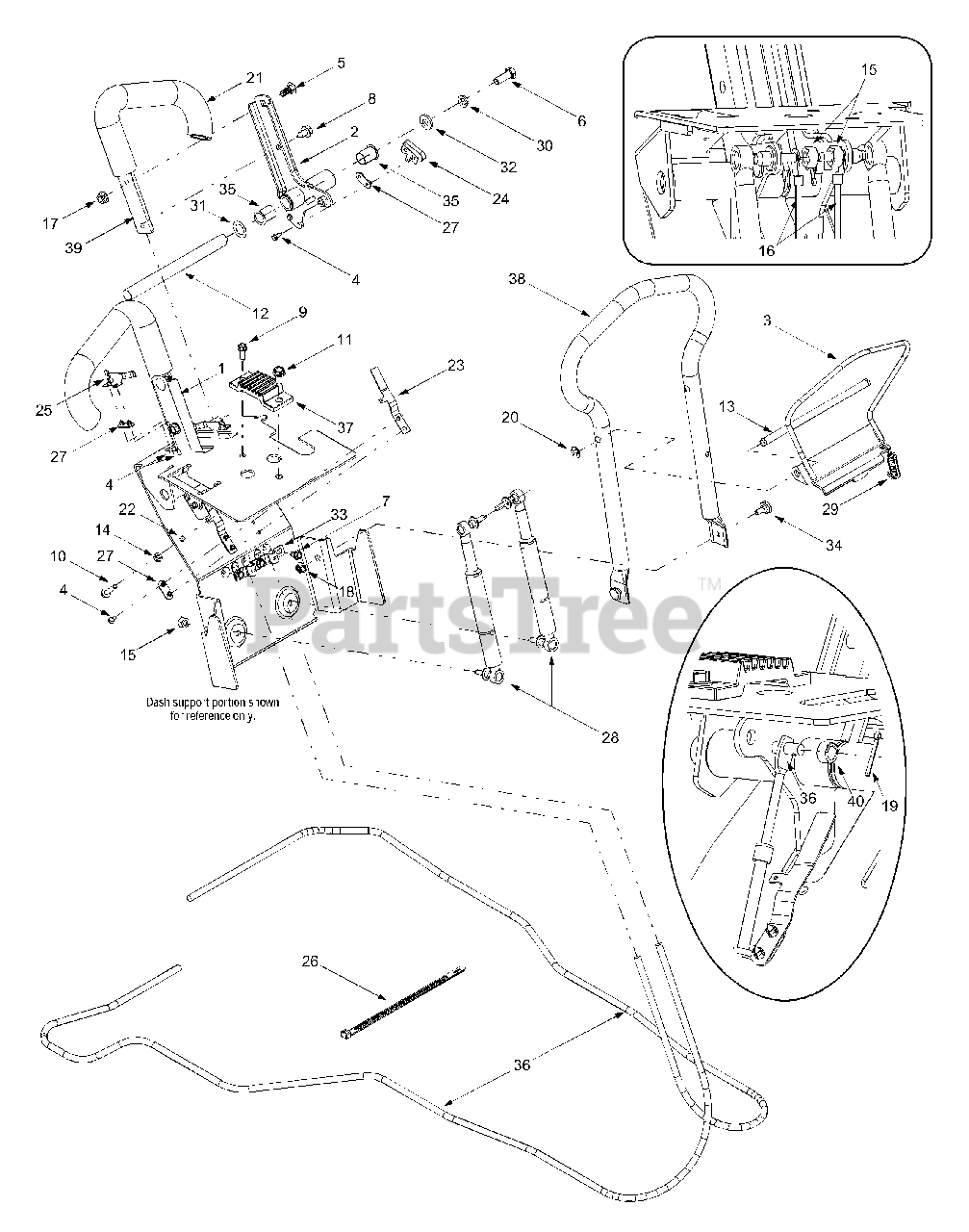

ZTT-1850 (13AT626G190) - White Outdoor 42" Zero-Turn Tractor (2001) > Parts Diagrams (9) > Drive Controls

  • Title
683-0317

1

RH Handle Bracket Assembly

Part# 683-0317

OEM Warranty Repair Part for White Outdoor

Variations

RED METALLIC (0650)

BLCRK ASSY-HANDLE RH

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

BLCRK ASSY-HANDLE RH

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

683-0318

2

LH Handle Bracket Assembly

Part# 683-0318

OEM Warranty Repair Part for White Outdoor

Variations

RED METALLIC (0650)

No Longer Available BLCRK ASM-HNDL LH

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

BLCRK ASSY-HANDLE LH

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

683-0320

3

Bail Assembly

Part# 683-0320

OEM Warranty Repair Part for White Outdoor

Not available

710-0227

4

Self-tapping Screw, #8-18 x .5

Part# 710-0227

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

710-0451

5

Carriage Screw, 5/16-18 x .75

Part# 710-0451

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

710-0514

6

Hex Cap Screw, 3/8-16 x 1.0

Part# 710-0514

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.01

710-0599

7

Self-tapping Screw, 1/4-20 x .5

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-0604A

8

Self-tapping Screw, 16-18 x .625

Part# 710-0604A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-0642

9

Self-tapping Screw, 1/4-20 x .75

Part# 710-0642

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.21

710-0788

10

Self-tapping Screw, 1/4-20 x 1.0

Part# 710-0788

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.97

710-1260A

11

Self-tapping Screw, 5/16-18 x .75

Part# 710-1260A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.65

711-1509

12

Control Shaft

Part# 711-1509

OEM Warranty Repair Part for White Outdoor

Not available

711-1535

13

Rod, .375 x 8.0

Part# 711-1535

OEM Warranty Repair Part for White Outdoor

Not available

712-0298

14

Jam Nut, 1/4-20

Part# 712-0298 (Superseded to 912-0298)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.32

712-0365

15

Center Lock Hex Nut, M8

Part# 712-0365

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.39

629-1083

16

Ground Jumper Wire Assembly

Part# 629-1083

OEM Warranty Repair Part for White Outdoor

Not available

712-3004A

17

Flange Lock Nut, 5/16-18

Part# 712-3004A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

712-3027

18

Hex Flange Lock Nut, 1/4-20

Part# 712-3027 (Superseded to 912-3027)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.05

714-0507

19

Cotter Pin, 3/32 x .75

Part# 714-0507 (Superseded to 914-0507)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

716-0125

20

E-Ring, .375

Part# 716-0125 (Superseded to 916-0125)

OEM Warranty Repair Part for White Outdoor

Not available

720-0278A

21

Foam Grip

Part# 720-0278A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $16.11

720-0322

22

Dipped Cap, .187

Part# 720-0322

OEM Warranty Repair Part for White Outdoor

Not available

725-1760

23

Spring Switch

Part# 725-1760

OEM Warranty Repair Part for White Outdoor

Not available

725-1773

24

Short Spring Switch

Part# 725-1773

OEM Warranty Repair Part for White Outdoor

Not available

725-1980

25

Lever Spring Switch

Part# 725-1980

OEM Warranty Repair Part for White Outdoor

Not available

726-0209

26

Cable Tie

Part# 726-0209 (Superseded to 726-0230)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $19.19

726-0320

27

Insulator Nut Plate

Part# 726-0320 (Superseded to 926-0320)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

727-3113

28

Damper Cylinder

Part# 727-3113

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $168.60

732-0568

29

Extension Spring, .50 x 2.54

Part# 732-0568 (Superseded to 932-0568)

OEM Warranty Repair Part for White Outdoor

Not available

736-0169

30

Lock Washer, 3/8

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

736-0349

31

Flat Washer, .63 x 1.0 x .020

Part# 736-0349 (Superseded to 936-0349)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

736-3004

32

Flat Washer, .406 x .875 x .105

Part# 736-3004 (Superseded to 936-3004)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.27

783-1265

33

Clamp Cable Bracket

Part# 783-1265

OEM Warranty Repair Part for White Outdoor

Not available

738-0255

34

Shoulder Screw, .375 x .181

Part# 738-0255 (Superseded to 938-0255)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.63

741-0591

35

Flange Bearing, .630 x .693

Part# 741-0591 (Superseded to 941-0591)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

746-1121

36

Control Cable, 77.5

Part# 746-1121

OEM Warranty Repair Part for White Outdoor

Not available

748-0438

37

Index Plate

Part# 748-0438

OEM Warranty Repair Part for White Outdoor

Not available

749-1236

38

Hand Rest Tube

Part# 749-1236

OEM Warranty Repair Part for White Outdoor

Variations

RED METALLIC (0650)

TUBE-CRUISE

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

TUBE-CRUISE

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

749-1237

39

Control Handle

Part# 749-1237

OEM Warranty Repair Part for White Outdoor

Variations

RED METALLIC (0650)

No Longer Available HANDLE-CONTROL G-6

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

No Longer Available HANDLE-CONTROL G-6

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

750-1298

40

Spacer, .280 x .437 x .250

Part# 750-1298

OEM Warranty Repair Part for White Outdoor

Not available
