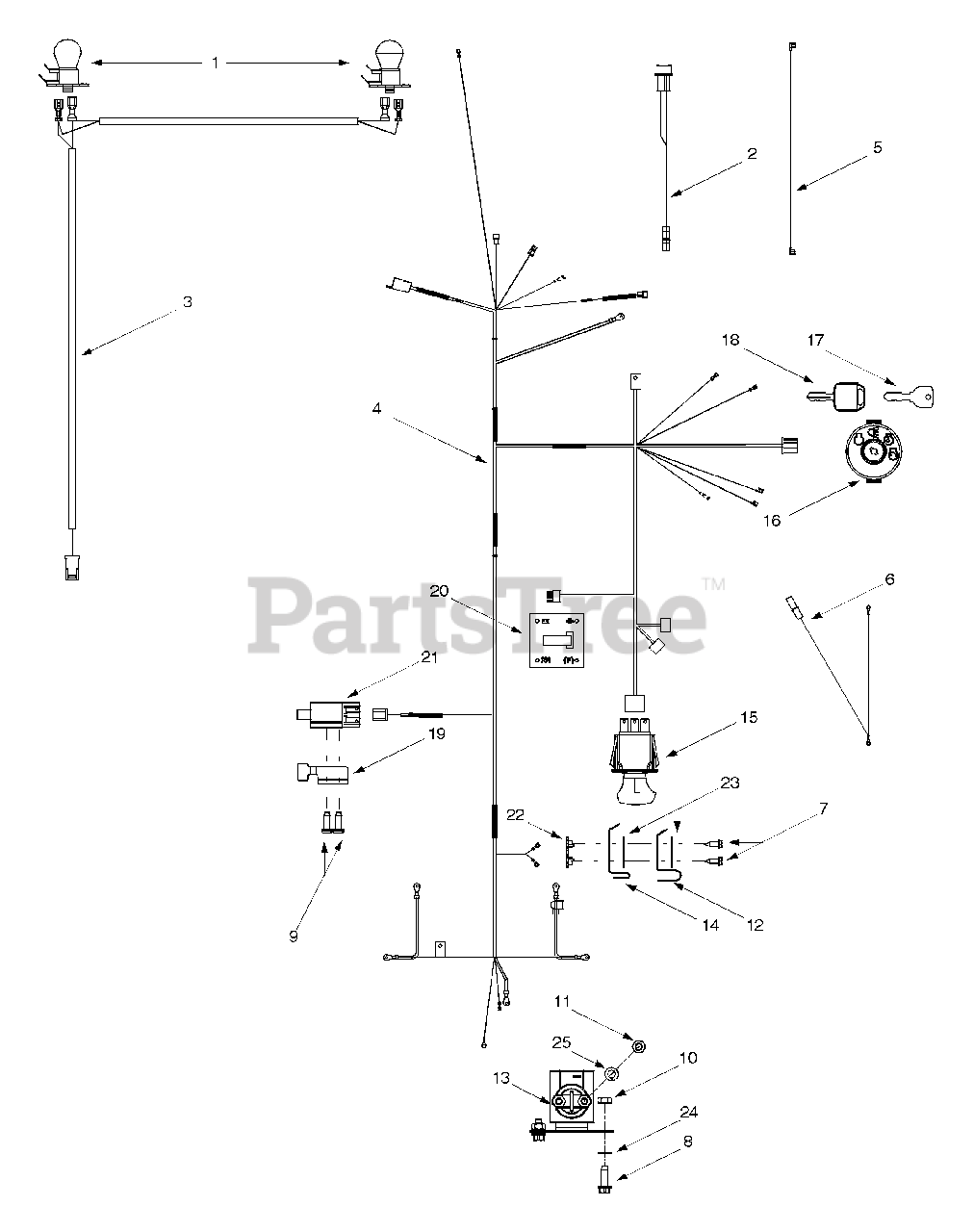

ZTT-1850 - White Outdoor 42" Zero-Turn Tractor (2001) Electrical Parts Diagram

42" Zero-Turn Tractor

Electrical Parts Diagram

  • Title

1

MTD 925-0051

Bulb/Socket Headlight Assembly

$15.99

$

In Stock, only 2 left!

0

2

MTD 629-0126

Wire Harness, Afterfire Solenoid, #18 x 5

$

$

Not available

3

MTD 929-0469B

Wire Harness, Headlight

$55.99

$

Usually ships in 3-6 days

0

4

MTD 629-1055

Wire Harness, Main

$

$

Not available

5

MTD 629-1077

Wire Assembly, Reverse Jumper

$

$

Not available

6

MTD 629-1083

Wire Assembly, Ground Jumper

$

$

Not available

7

MTD 710-0227

Self-tapping Screw, #8-18 x .5

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-1823

Pan Phillips Screw, #12-16 x .625

$3.49

$

Usually ships in 3-6 days

0

10

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-3006

HEX NUT

$4.49

$

In Stock, Qty 20+

0

12

MTD 925-1303

Outer Seat Spring Switch

$5.99

$

In Stock, Qty 8

0

13

MTD 925-1426A

12V Solenoid, 100 Amp

$24.99

$

In Stock, Qty 20+

0

14

MTD 725-1439

Inner Seat Spring Switch

$7.99

$

In Stock, Qty 8

0

15

MTD 925-1716

Electric PTO Switch
(Superseded to 925-1716A)

$68.99

$

In Stock, Qty 20+

0

16

MTD 925-1741

Ignition Switch

$41.99

$

In Stock, Qty 20+

0

17

MTD 925-1745A

Ignition Key

$15.99

$

In Stock, Qty 20+

0

18

MTD 925-1745A

Ignition Key w/ Plastic Cover

$15.99

$

In Stock, Qty 20+

0

19

MTD 725-1774

Parking Brake Switch Spring

Note: NLA

$

$

Not available

20

MTD 925-1976

Systems Indicator Monitor, Hour Meter

$

$

Not available

21

MTD 725-3223

Plunger Switch (Parking Brake)

$17.99

$

In Stock, only 2 left!

0

22

MTD 726-0278

Insulator Boss Plate

$6.49

$

In Stock, Qty 10

0

23

MTD 726-0279

Insulator Plate

$3.49

$

In Stock, Qty 8

0

24

MTD 936-0222

External Lock Washer, 1/4
(Superseded to 736-0222)

$

$

Not available

25

MTD 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 13

0
