ZTT-1850 - White Outdoor 42" Zero-Turn Tractor (2001) General Assembly - Rear Parts Diagram

42" Zero-Turn Tractor

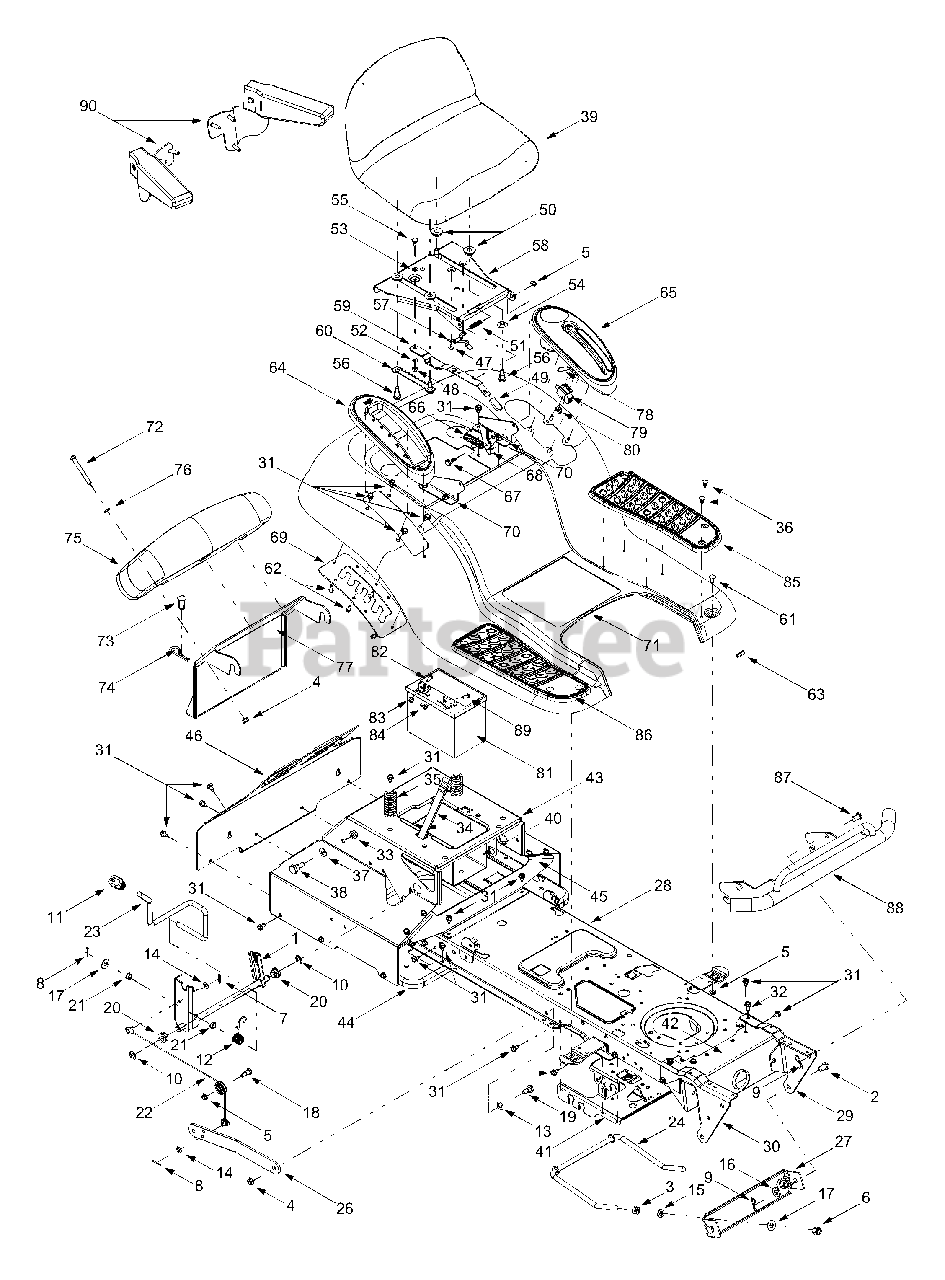

General Assembly - Rear Parts Diagram

  • Title

1

MTD 983-0197

Lift Shaft Assembly

$51.99

$

In Stock, only 1 left!

0

2

MTD 911-0332

Clevis Pin, .5 x .78

$14.99

$

In Stock, Qty 20+

0

3

MTD 912-0206

Hex Nut, 1/2-13
(Superseded to 712-0206)

$3.99

$

In Stock, Qty 20+

0

4

MTD 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

5

MTD 712-3004A

HEX FLANGE NUT

$3.49

$

In Stock, Qty 20+

0

6

MTD 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

7

MTD 914-0104

Internal Cotter Pin
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

8

MTD 914-0111

Cotter Pin, 3/32 x 1.0
(Superseded to 714-0111)

$4.49

$

In Stock, Qty 20+

0

9

MTD 914-0145

Internal Cotter Pin
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

10

MTD 716-0106

E-ring

$3.99

$

In Stock, only 3 left!

0

11

MTD 720-0311

Handle Grip

$14.99

$

In Stock, Qty 6

0

12

MTD 732-0874

Torsion Spring

$4.49

$

In Stock, Qty 10

0

13

MTD 936-0160

Flat Washer, .53 x .93 x .050

$3.99

$

In Stock, Qty 17

0

14

MTD 936-0275

Flat Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

15

MTD 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 20+

0

16

MTD 736-3019

Flat Washer, .31 x 1.062 x .134

$5.49

$

In Stock, Qty 19

0

17

MTD 736-3084

Flat Washer, .51 x 1.12 x .06

$4.49

$

In Stock, Qty 20+

0

18

MTD 738-0138A

Hex Cap Screw, 5/16-18 x .62

$6.49

$

In Stock, Qty 20+

0

19

MTD 738-0143

SHOULDER SCREW .498 DIA x .340

$3.99

$

In Stock, Qty 20+

0

20

MTD 941-0225

Hex Flange Bearing

$6.99

$

In Stock, Qty 20+

0

21

MTD 941-0715

Snap Flange Bearing

$

$

Not available

22

MTD 746-0968

Lift Cable, 16.16

$18.99

$

In Stock, Qty 20+

0

23

MTD 747-1111A

Lift Handle

$

$

Not available

24

MTD 747-1130B

Deck Stabilizer Rod

$38.99

$

In Stock, Qty 6

0

25

MTD 756-1154

Roller Pulley

$7.49

$

In Stock, Qty 17

0

26

MTD 783-0678C

Lift Arm

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0678C-0637

Lift Deck Link - POWDER BLACK (0637)

$27.99

$

In Stock, Qty 9

0

MTD 783-0678C-4008

LINK-LIFT DECK - WINE RED (4008)

$27.99

$

Usually ships in 3-6 days

0

MTD 783-0678C-4044

Lift Deck Link - CRAFTSMAN RED (4044)

$27.99

$

Usually ships in 3-6 days

0

MTD 783-0678C-0606

Lift Deck Link - MAJESTIC ORANGE (0606)

$27.99

$

In Stock, Qty 9

0

MTD 783-0678C-0638

LINK-LIFT DECK - MTD/TROY-BILT RED (0638)

$27.99

$

Usually ships in 3-6 days

0

MTD 783-0678C-0691

Lift Deck Link - BLACK JACK (0691)

$27.99

$

In Stock, Qty 9

0

MTD 783-0678C-0709

LINK-LIFT DECK - MASTERCRAFT GREEN (0709)

$25.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

27

MTD 783-0720C

Deck Stabilizer Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0720C-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$42.99

$

In Stock, Qty 5

0

MTD 783-0720C-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

28

MTD 683-0314

Frame Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0314-0650

No Longer Available FRAME ASM - RED METALLIC (0650)

$

$

Not available

MTD 683-0314-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

29

MTD 783-0727D

LH Pivot Support Bracket Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0727D-0606

BRACKET:PIVOT:SUPT - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0727D-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0727D-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

MTD 783-0727D-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

MTD 783-0727D-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0727D-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0727D-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0727D-4008

BRACKET:PIVOT:SUPT - WINE RED (4008)

$

$

Not available

$

$

30

MTD 783-0726E

RH Pivot Support Bracket Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0726E-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0726E-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0726E-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

MTD 783-0726E-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

MTD 783-0726E-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0726E-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0726E-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0726E-4008

BRACKET:PIVOT:SUPT - WINE RED (4008)

$

$

Not available

$

$

31

MTD 710-0604A

Self-tapping Screw, 16-18 x .625

$3.99

$

In Stock, Qty 20+

0

32

MTD 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

33

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

34

MTD 723-0444

Battery Strap

$22.99

$

Usually ships in 3-6 days

0

35

MTD 732-3080A

Compression Spring, 1.28 x 3.5

$12.99

$

In Stock, Qty 20+

0

36

MTD 726-3046

Ratchet Clip, .25

$3.99

$

In Stock, Qty 20+

0

37

MTD 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 7

0

38

MTD 738-1020

Shoulder Screw, .625 x .50, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

39

MTD 757-0388

Seat, High Back (Black)

$

$

Not available

40

MTD 783-0349

Battery Tray

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

MTD 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

41

MTD 783-04612-0637

Steering Support Bracket

$83.99

$

In Stock, only 3 left!

0

42

MTD 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

MTD 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

MTD 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

MTD 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

MTD 783-0728-4008

PIVOT BAR BRACKET - WINE RED (4008)

$43.99

$

Usually ships in 3-6 days

0

MTD 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

43

MTD 783-1044

Upper Frame

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-1044-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-1044-0665

No Longer Available FRAME-UPPE - YARDMAN GREEN (0665)

$

$

Not available

$

$

44

MTD 783-1045

Transmission Bracket

Note: NLA

Variations

MTD 783-1045-0650

No Longer Available BRKT-TRANS - RED METALLIC (0650)

$

$

Not available

MTD 783-1045-0665

No Longer Available BRKT-TRANS - YARDMAN GREEN (0665)

$

$

Not available

$

$

45

MTD 783-1046-0637

Support Bracket

$

$

Not available

46

MTD 783-1047

Rear Access Plate

Note: NLA

Variations

MTD 783-1047-0650

No Longer Available PLATE-REAR - RED METALLIC (0650)

$

$

Not available

MTD 783-1047-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

47

MTD 710-1268

Screw, #10-16 x .375

$3.99

$

In Stock, only 2 left!

0

48

MTD 912-3027

Hex Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

49

MTD 720-0309A

Seat Adjuster Grip

$8.99

$

Usually ships in 3-6 days

0

50

MTD 731-1989

Spacer

$

$

Not available

51

MTD 732-0499

Compression Spring, .41 x 1.5

$8.99

$

In Stock, only 3 left!

0

52

MTD 936-0175

Spring Washer, .265 x .562 x .025

$3.99

$

In Stock, only 3 left!

0

53

MTD 736-0204

Flat Washer, .344 x .62 x .03

$3.99

$

In Stock, Qty 20+

0

54

MTD 736-3019

Flat Washer, .31 x 1.062 x .134

$5.49

$

In Stock, Qty 19

0

55

MTD 938-0137A

Shoulder Screw, .340 x .285,1/4-20
(Superseded to 738-0137A)

$9.49

$

In Stock, Qty 19

0

56

MTD 738-1007

Shoulder Screw, .50 x .50, 3/8-16

$

$

Not available

57

MTD 783-0611

Seat Stop

$9.99

$

In Stock, only 4 left!

0

58

MTD 783-0738D

Seat Pivot Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-0738D-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0738D-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 783-0738D-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0738D-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

MTD 783-0738D-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0738D-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

MTD 783-0738D-4015

BRACKET-PIVOT:SEAT - FIRE RED (4015)

$

$

Not available

MTD 783-0738D-4021

Seat Pivot Bracket - CUB YELLOW 2 (4021)

$

$

Not available

MTD 783-0738D-4008

BRACKET-PIVOT:SEAT - WINE RED (4008)

$

$

Not available

$

$

59

MTD 783-0739

Seat Adjustment Lever

Variations

MTD 783-0739-0498

Seat Adjust Lever - OLD CUB YELLOW (0498)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0638

Seat Adjust Lever - MTD/TROY-BILT RED (0638)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0665

Seat Adjust Lever - YARDMAN GREEN (0665)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0691

Seat Adjust Lever - BLACK JACK (0691)

$25.99

$

Usually ships in 3-6 days

0

MTD 783-0739-0716

Seat Adjust Lever - CUB YELLOW-99 (0716)

$25.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

60

MTD 783-0753

Seat Adjustment Selector

$14.99

$

Usually ships in 3-6 days

0

61

MTD 710-0260A

Carriage Screw, 5/16-18 x .62

$3.99

$

In Stock, Qty 20+

0

62

MTD 710-0895

Self-tapping Screw, 1/4-15 x .75

$5.99

$

In Stock, Qty 20+

0

63

MTD 731-0511

Trim Strip

$3.49

$

Usually ships in 3-6 days

0

64

MTD 731-06795

Lift Lever Cover

$22.99

$

Usually ships in 3-6 days

0

65

MTD 731-2319

Parking Brake Lever Cover w/ Cup Holder

Note: NLA

$

$

Not available

66

MTD 732-1027

Extension Spring, .750 x 3.8

$

$

Not available

67

MTD 938-0296

Shoulder Screw, .437 x .286
(Superseded to 738-0296)

$3.99

$

In Stock, Qty 12

0

68

MTD 783-0209D

Seat Lift Bracket

$15.99

$

In Stock, only 1 left!

0

69

MTD 783-0677B-0637

Lift Adjuster Bracker

$20.99

$

In Stock, only 1 left!

0

70

MTD 783-1489C

Seat Mounting Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-1489C-0638

BRACKET-MOUNT SEAT - MTD/TROY-BILT RED (0638)

$21.99

$

In Stock, only 1 left!

0

MTD 783-1489C-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$21.99

$

In Stock, only 1 left!

0

MTD 783-1489C-0650

Seat Mounting Bracket - RED METALLIC (0650)

$21.99

$

In Stock, only 1 left!

0

MTD 783-1489C-4008

Seat Mounting Bracket - WINE RED (4008)

$20.99

$

Usually ships in 3-6 days

0

MTD 783-1489C-0716

BRACKET-MOUNT SEAT - CUB YELLOW-99 (0716)

$21.99

$

In Stock, only 1 left!

0

MTD 783-1489C-4015

BRACKET-MOUNT SEAT - FIRE RED (4015)

$20.99

$

Usually ships in 3-6 days

0

MTD 783-1489C-4021

BRACKET-MOUNT SEAT - CUB YELLOW 2 (4021)

$21.99

$

In Stock, only 1 left!

0

$17.99

$

Usually ships in 3-6 days

0

71

MTD 783-1349

ZTT Fender

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-1349-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-1349-0665

No Longer Available FENDER-4 STYLE - YARDMAN GREEN (0665)

$

$

Not available

$

$

72

MTD 710-3130

Hex Cap Screw, 3/8-16 x 3.25 (Grade 8)

$9.49

$

In Stock, Qty 20+

0

73

MTD 711-0309A

Clevis Pin, .62 Diameter

$11.99

$

In Stock, Qty 10

0

74

MTD 714-0117

Internal Cotter Pin, .148 x 3.0

$3.99

$

In Stock, Qty 11

0

75

MTD 731-2341

Rear Bumper Weight

$

$

Not available

76

MTD 736-3010

Flat Washer, .407 x .812 x .135

$4.49

$

In Stock, Qty 19

0

77

MTD 783-1275

Bumper Support Bracket

Note: NLA

Variations

MTD 783-1275-0650

No Longer Available BRACKET-BM - RED METALLIC (0650)

$

$

Not available

MTD 783-1275-0665

No Longer Available BRACKET-BM - YARDMAN GREEN (0665)

$

$

Not available

$

$

78

MTD 725-1774

Spring Switch

Note: NLA

$

$

Not available

79

MTD 725-3223

Plunger Switch (Parking Brake)

$17.99

$

In Stock, only 2 left!

0

80

MTD 710-1823

Pan Phillips Screw, #12-16 x .625

$3.49

$

Usually ships in 3-6 days

0

81

MTD 925-1707D

Battery, 270 CCA

$

$

Not available

82

MTD 710-0703

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

83

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

84

MTD 712-3087

WING NUT 1/4-20

$3.99

$

In Stock, Qty 20+

0

85

MTD 735-0657

LH Foot Pad

$26.99

$

Usually ships in 3-6 days

0

86

MTD 735-0678

RH Foot Pad

$

$

Not available

87

MTD 911-0332

Clevis Pin, .50 x .78

$14.99

$

In Stock, Qty 20+

0

88

MTD OEM-190-679

Bumper Assembly

$92.99

$

Usually ships in 3-6 days

0

89

MTD 738-1132

Shoulder Screw, 1/4-20, .25 x .15

$4.99

$

In Stock, only 2 left!

0

90

MTD 757-3009

Arm Rest Assembly

Note: (Includes LH & RH)

$

$

Not available
