ZTT-1850 - White Outdoor 42" Zero-Turn Tractor (2001) Wheels, Rear Parts Diagram

42" Zero-Turn Tractor

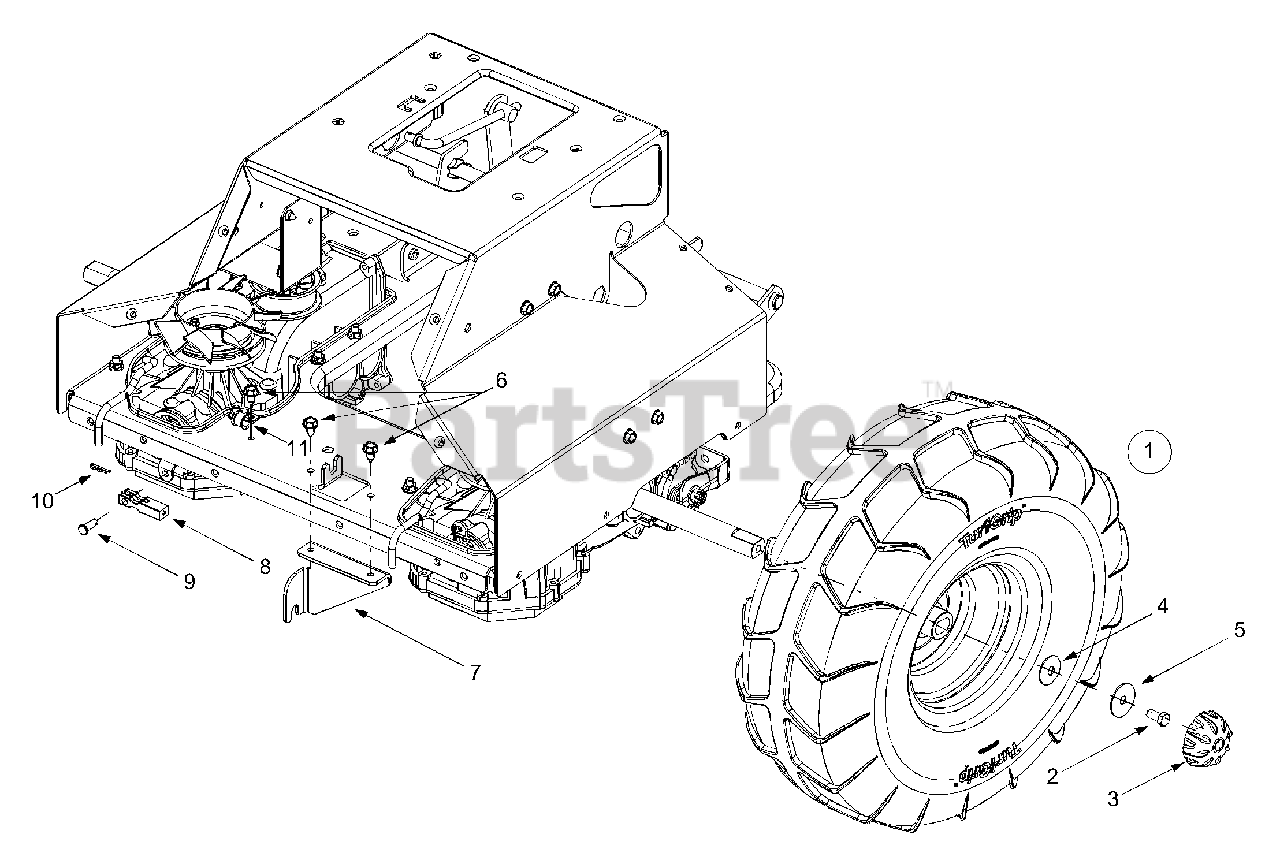

Wheels, Rear Parts Diagram

  • Title

1

MTD 634-0215

LH Wheel Assembly Complete, 20 x 7

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

634-0215-0911

MTD 634-0215-0911

Wheel Assembly, 20 X 7 LH Complete - Carlisle Gray (0911)

$217.99

$

Usually ships in 3-6 days

0

$

$

1

MTD 634-0216

RH Wheel Assembly Complete, 20 x 7

Note: NLA

Variations

634-0216-0911

MTD 634-0216-0911

No Longer Available WHEEL ASM- - Carlisle Gray (0911)

$

$

Not available

$

$

1

MTD 634-0209

Rim Only

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

634-0209-0662

MTD 634-0209-0662

RIM ASM - OYSTER GRAY (0662)

$

$

Not available

634-0209-0674

MTD 634-0209-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

1

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

1

MTD 734-2019

Tire Only, 20.4 x 7.0 x 8.0 Turf-Grip

Note: NLA

$

$

Not available

2

MTD 710-0180

Hex Cap Screw, 3/8-24 x .75

$7.49

$

In Stock, Qty 5

0

3

MTD 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.99

$

In Stock, Qty 20+

0

4

MTD 936-0356

Bell Washer, .391 x 1.38 x .062

$

$

Not available

5

MTD 736-0372

Flat Washer, .410 x 1.59 x .062

Note: NLA

$

$

Currently unavailable

6

MTD 710-0604A

Self-tapping Screw, 16-18 x .625

$4.99

$

In Stock, Qty 20+

0

7

MTD 783-1069

Cable Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

783-1069-0650

MTD 783-1069-0650

Blade Brake Asm. - RED METALLIC (0650)

$

$

Not available

783-1069-0665

MTD 783-1069-0665

BRACKET-CABLE MOUNT - YARDMAN GREEN (0665)

$

$

Not available

$

$

8

MTD 748-0452

CONTROL YOKE

$

$

Not available

9

MTD 711-1601

Clevis Pin, .3125 x .81

$

$

Not available

10

MTD 914-0104

Internal Cotter Pin, 5/16
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

11

MTD 726-0272

Clamp, 9/16

$7.99

$

Usually ships in 3-6 days

0
