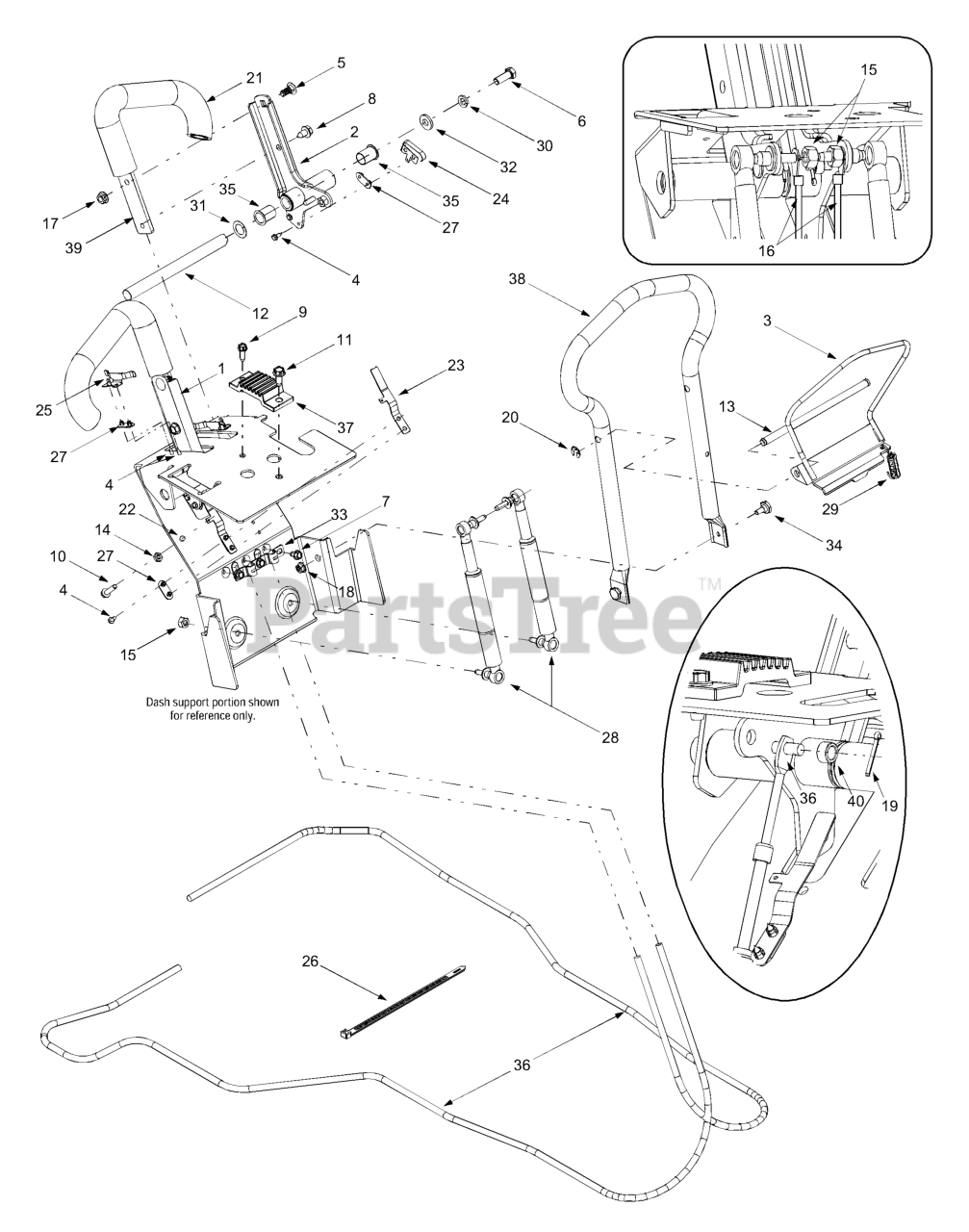

ZTT-2150 (13AJ626H190) - White Outdoor 46" Zero-Turn Tractor (2001) Drive Controls Parts Diagram

46" Zero-Turn Tractor

Drive Controls Parts Diagram

  • Title

1

White Outdoor 683-0317

RH Handle Bracket Assembly

Variations

White Outdoor 683-0317-0650

BLCRK ASSY-HANDLE RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0317-0665

BLCRK ASSY-HANDLE RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

2

White Outdoor 683-0318

LH Handle Bracket Assembly

Variations

White Outdoor 683-0318-0650

No Longer Available BLCRK ASM-HNDL LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0318-0665

BLCRK ASSY-HANDLE LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

3

White Outdoor 683-0320

Bail Assembly

$

$

Not available

4

White Outdoor 710-0227

Self-tapping Screw, #8-18 x .5

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 710-0451

Carriage Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0604A

Self-tapping Screw, 16-18 x .625

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0788

Self-tapping Screw, 1/4-20 x 1.0

$6.99

$

In Stock, only 4 left!

0

11

White Outdoor 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

12

White Outdoor 711-1509

Control Shaft

$

$

Not available

13

White Outdoor 711-1535

Rod, .375 x 8.0

$

$

Not available

14

White Outdoor 712-0298

Jam Nut, 1/4-20
(Superseded to 912-0298)

$5.99

$

Usually ships in 3-6 days

0

15

White Outdoor 712-0365

Center Lock Hex Nut, M8

$

$

Not available

16

White Outdoor 629-1083

Ground Jumper Wire Assembly

$

$

Not available

17

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 714-0507

Cotter Pin, 3/32 x .75

$4.49

$

In Stock, only 4 left!

0

20

White Outdoor 716-0125

E-Ring, .375
(Superseded to 916-0125)

$

$

Not available

21

White Outdoor 720-0278A

Foam Grip

$21.99

$

In Stock, Qty 5

0

22

White Outdoor 720-0322

Dipped Cap, .187

$

$

Not available

23

White Outdoor 725-1760

Spring Switch

$

$

Not available

24

White Outdoor 725-1773

Short Spring Switch

$

$

Not available

25

White Outdoor 725-1980

Lever Spring Switch

$

$

Not available

26

White Outdoor 726-0209

Cable Tie
(Superseded to 726-0230)

$25.99

$

In Stock, only 2 left!

0

27

White Outdoor 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.49

$

In Stock, Qty 11

0

28

White Outdoor 727-3113

Damper Cylinder

$207.99

$

Usually ships in 3-6 days

0

29

White Outdoor 732-0568

Extension Spring, .50 x 2.54
(Superseded to 932-0568)

$

$

Not available

30

White Outdoor 736-0169

Lock Washer, 3/8

$3.49

$

In Stock, Qty 20+

0

31

White Outdoor 736-0349

Flat Washer, .63 x 1.0 x .020

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-3004

Flat Washer, .406 x .875 x .105

$4.49

$

In Stock, Qty 19

0

33

White Outdoor 783-1265

Clamp Cable Bracket

$

$

Not available

34

White Outdoor 738-0255

Shoulder Screw, .375 x .181
(Superseded to 938-0255)

$4.99

$

In Stock, Qty 12

0

35

White Outdoor 741-0591

Flange Bearing, .630 x .693

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 746-1121

Control Cable, 77.5

$

$

Not available

37

White Outdoor 748-0438

Index Plate

$

$

Not available

38

White Outdoor 749-1236

Hand Rest Tube

Variations

White Outdoor 749-1236-0650

TUBE-CRUISE - RED METALLIC (0650)

$

$

Not available

White Outdoor 749-1236-0665

TUBE-CRUISE - YARDMAN GREEN (0665)

$

$

Not available

$

$

39

White Outdoor 749-1237

Control Handle

Variations

White Outdoor 749-1237-0650

No Longer Available HANDLE-CONTROL G-6 - RED METALLIC (0650)

$

$

Not available

White Outdoor 749-1237-0665

No Longer Available HANDLE-CONTROL G-6 - YARDMAN GREEN (0665)

$

$

Not available

$

$

40

White Outdoor 750-1298

Spacer, .280 x .437 x .250

$

$

Not available
