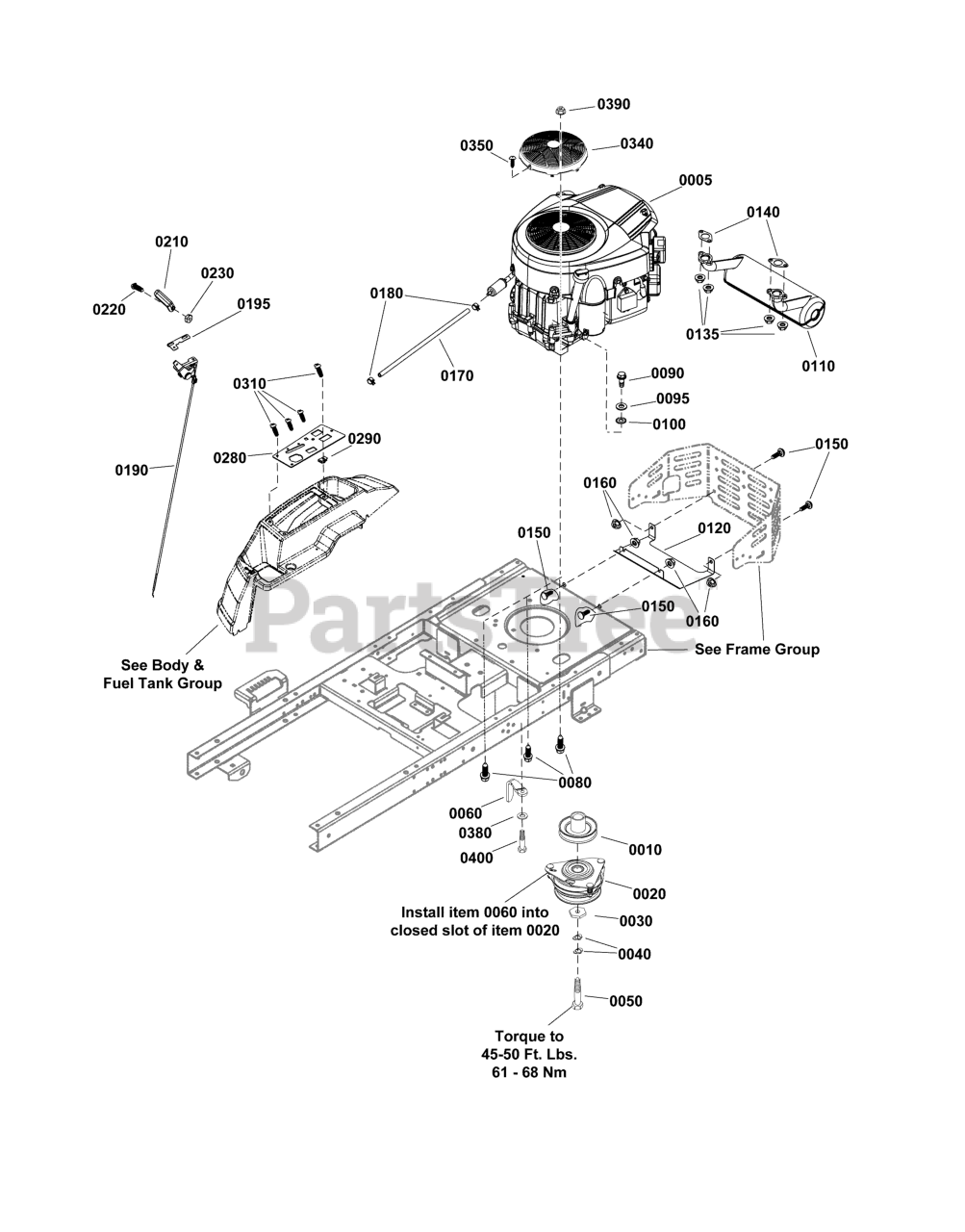

  • Title

0005

Snapper 40N777-0035-B5

* ENGINE, 23 Gross HP B&S Twin

Note: (Engine Model: 44N777-0035-B5)

$

$

Currently unavailable

0010

Snapper 1757995YP

PULLEY ASSEMBLY

$41.99

$

Usually ships in 2-12 days

0

0020

Snapper 1736105SM

CLUTCH, Ogura

$397.99

$

Usually ships in 2-12 days

0

0030

Snapper 1708264SM

WASHER, Hex

$8.99

$

In Stock, only 3 left!

0

0040

Snapper 1960769YP

WASHER, Belleville

$5.49

$

In Stock, only 1 left!

0

0050

Snapper 771023

CAPSCREW, Hex Head, Loctite, 7/16-20 x 3 1/2

$6.99

$

In Stock, only 2 left!

0

0060

Snapper 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, Qty 6

0

0080

Snapper 2828635SM

SCREW, Taptite, 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

0090

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 14

0

0095

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1921880SM

WASHER, Lock, 1/4

$3.49

$

Usually ships in 2-12 days

0

0110

Snapper 1758350YP

MUFFLER

$230.99

$

Usually ships in 2-12 days

0

0120

Snapper 1759502AYP

SHIELD, Heat

$67.99

$

Usually ships in 2-12 days

0

0135

Snapper 690941

NUT

$5.49

$

In Stock, Qty 7

0

0140

Snapper 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

0150

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0160

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0150

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0160

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 327290MA

HOSE, Fuel
(Superseded to 791766)

$8.49

$

In Stock, Qty 20+

0

0180

Snapper 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

0190

Snapper 1759205YP

CONTROL, Throttle

$45.99

$

In Stock, only 2 left!

0

0195

Snapper 84004836

STOP, Throttle

$5.99

$

Usually ships in 2-12 days

0

0210

Snapper 1739312YP

KNOB, Throttle

$11.99

$

Usually ships in 2-12 days

0

0220

Snapper 797483

SCREW

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 703460

NUT

$3.99

$

In Stock, Qty 7

0

0280

Snapper 84002285

PANEL, Control, Choke

$30.99

$

Usually ships in 2-12 days

0

0290

Snapper 705876

NUT, Speed, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0310

Snapper 7090999SM

SCREW, Phillips Head, 1/4-20 X 5/8
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

0340

Snapper 797420YP

GUARD, Debris Screen

$39.99

$

Usually ships in 2-12 days

0

0350

Snapper 799359

SCREW

$4.99

$

In Stock, only 2 left!

0

0380

Snapper 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

0390

Snapper 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0400

Snapper 5025011X14SM

CAPSCREW, Hex Head, 5/16-18 X 1-3/4

$3.99

$

In Stock, Qty 17

0
