ZTX 200 (2691710-00) - Snapper 42"/107cm Zero-Turn Mower, 8240 Series Briggs & Stratton 42" Mower Deck - Guarding Group HOZ FAB Parts Diagram

42"/107cm Zero-Turn Mower, 8240 Series Briggs & Stratton

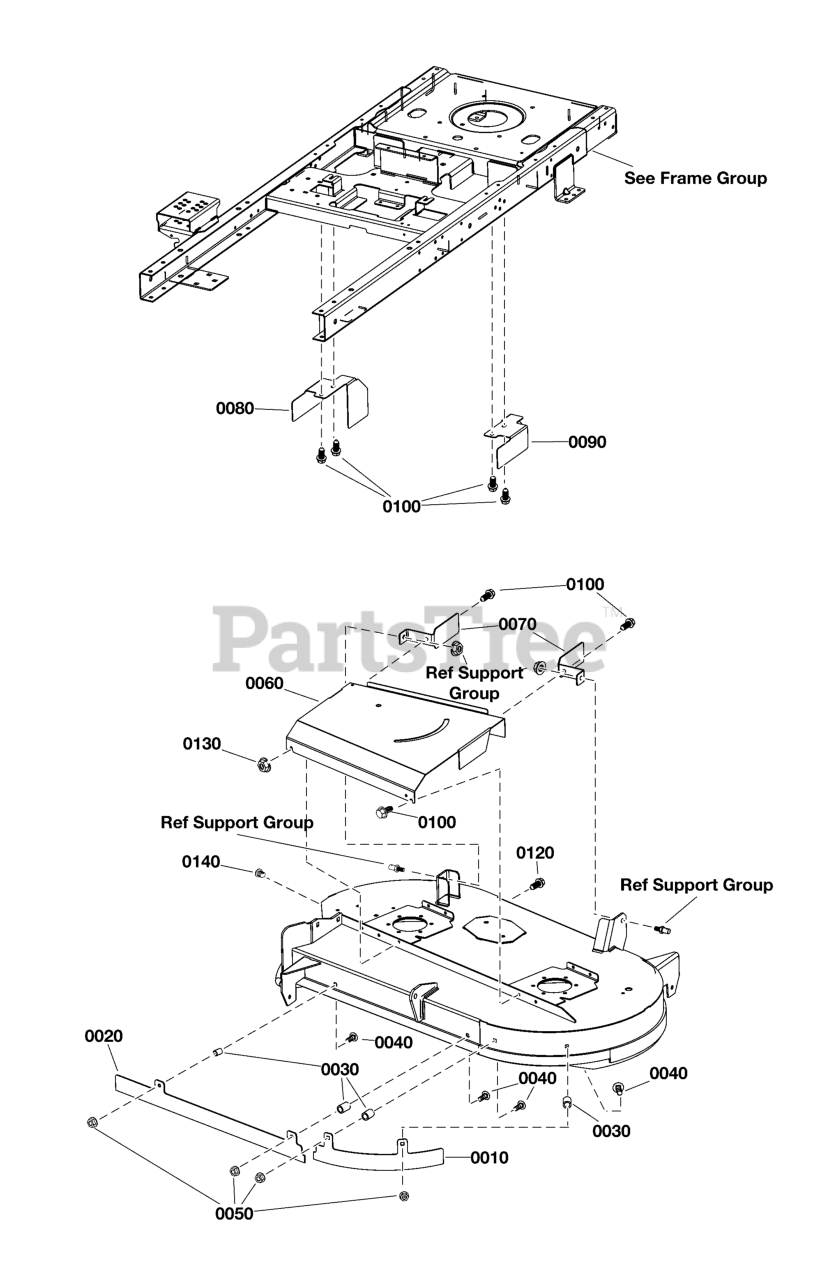

42" Mower Deck - Guarding Group HOZ FAB Parts Diagram

  • Title

0010

Snapper 1760059DYP

BAFFLE, Front, LH

$45.99

$

Usually ships in 2-12 days

0

0020

Snapper 1759763DYP

BRACKET, Guarding Cover

$39.99

$

Usually ships in 2-12 days

0

0030

Snapper 5102463YP

SPACER, .33 X .50 X .25, CZ

$5.49

$

Usually ships in 2-12 days

0

0040

Snapper 704065

BOLT, Carriage, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 12

0

0050

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 14

0

0060

Snapper 1760092AYP

COVER, Pully, 42", Black

$165.99

$

Usually ships in 2-12 days

0

0070

Snapper 1760095AYP

SUPPORT, Pulley Cover, 42" Mower Deck,Black

$25.99

$

Usually ships in 2-12 days

0

0080

Snapper 1760096AYP

COVER, RH Deck Belt, 42", Black

$43.99

$

Usually ships in 2-12 days

0

0090

Snapper 1760097AYP

COVER, LH Deck Belt, 42", Black

$43.99

$

Usually ships in 2-12 days

0

0100

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0120

Snapper 5025010X6SM

BOLT, 1/4-20 X 3/4, GD5, CZ

$3.99

$

In Stock, Qty 20+

0

0130

Snapper 15X143MA

NUT, 1/4-20, Hex Flange Center Lock, ZC/CL

$4.99

$

In Stock, only 4 left!

0

0140

Snapper 7073293YP

PLUG, Hole, .30 OD

$2.99

$

Usually ships in 2-12 days

0
