ZTX 550 (5901404-00) - Snapper 52"/132cm Zero-Turn Mower, 8270 Series Briggs & Stratton CE Guarding - Parking Brake & Operator Area Parts Diagram

52"/132cm Zero-Turn Mower, 8270 Series Briggs & Stratton

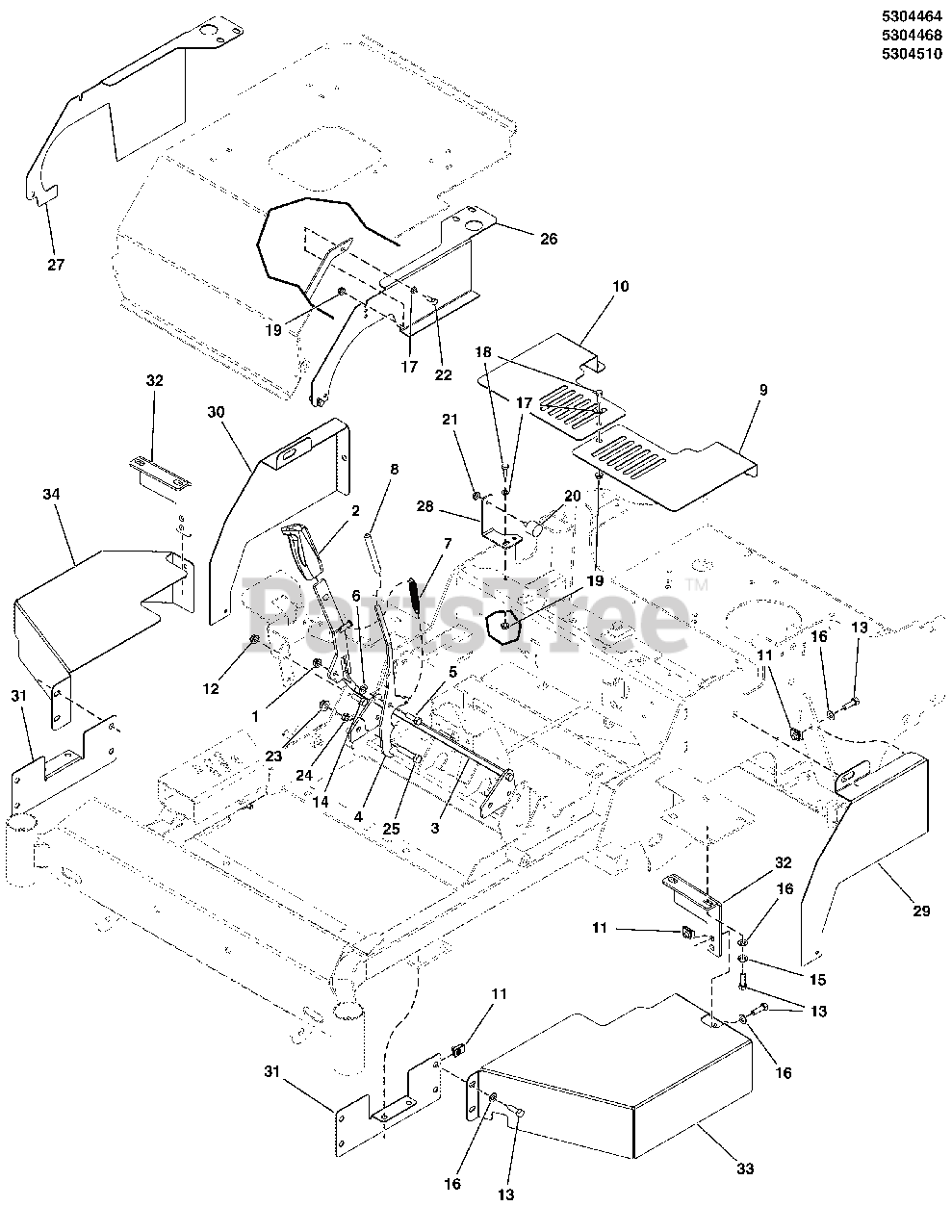

CE Guarding - Parking Brake & Operator Area Parts Diagram

  • Title

1

Snapper 5025057SM

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

2

Snapper 5100171SM

GRIP, BLACK FLEXIBLE

$14.99

$

In Stock, only 2 left!

0

3

Snapper 5413757AYP

WELD, BRAKE SHAFT, EU - BLK

$74.99

$

Usually ships in 2-12 days

0

4

Snapper 5413737AYP

LEVER, BRAKE, 2500, EU - BLK

$11.99

$

Usually ships in 2-12 days

0

5

Snapper 1960086SM

SCREW, TRUSS HD TORX DR5/16-18X0.875 BLK

$5.49

$

In Stock, only 2 left!

0

6

Snapper 5023202SM

WASHER,WAVE,M10

$5.49

$

Usually ships in 2-12 days

0

7

Snapper 5020639SM

SPRING-EXT, .500 OD X 3.50 LG X .058 WR

$33.99

$

Usually ships in 2-12 days

0

8

Snapper 5023198SM

COVER, VINYL HANDLE

$4.99

$

In Stock, Qty 10

0

9

Snapper 5415002AYP

PLATE, FAN COVER, LH - BLK

$39.99

$

Usually ships in 2-12 days

0

10

Snapper 5415003AYP

PLATE, FAN COVER, RH - BLK

$39.99

$

Usually ships in 2-12 days

0

11

Snapper 5022308SM

BODY CLIP, 5/16-18-7GA MATERIAL

$5.99

$

In Stock, only 4 left!

0

12

Snapper 703115

NUT, 5/16-18 HEX NYLOCK FLANGE

$3.49

$

In Stock, Qty 20+

0

13

Snapper 703585

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 6

0

14

Snapper 1960086SM

SCREW, TRUSS HD TORX DR5/16-18X0.875 BLK

$5.49

$

In Stock, only 2 left!

0

15

Snapper 5025170SM

WASHER, 5/16 LOCK CZ

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 703302

WASHER, 5/16 SAE

$4.49

$

In Stock, Qty 20+

0

17

Snapper 703332

WASHER, Flat, 1/4

Note: (5025154)

$4.49

$

In Stock, Qty 20+

0

18

Snapper 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 CZ

$3.99

$

In Stock, Qty 20+

0

19

Snapper 703463

NUT, Nylock Flanged, 1/4-20
(Superseded to 5025391FS)

Note: (5025391)

$4.49

$

In Stock, only 3 left!

0

20

Snapper 5022673SM

BUMPER, RUBBER 1/4-20

$20.99

$

In Stock, only 1 left!

0

21

Snapper 703233

NUT, 1/4-20 HEX SERR. FLANGE

$4.49

$

In Stock, Qty 6

0

22

Snapper 5025010X5SM

BOLT-1/4-20 X 5/8 GD5 CZ
(Superseded to 703338)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

24

Snapper 5025084SM

NUT, 3/8-16 HEX JAM

$3.49

$

In Stock, Qty 12

0

25

Snapper 5025013X14SM

BOLT, 3/8-16 X 1-3/4 GD5 CZ

$4.49

$

In Stock, Qty 5

0

26

Snapper 5414990DYP

PLATE, GUARD, SEAT PLATFORM, LH - RED

$43.99

$

Usually ships in 2-12 days

0

27

Snapper 5414991DYP

PLATE, GUARD, SEAT PLATFORM, RH - RED

$59.99

$

Usually ships in 2-12 days

0

28

Snapper 5414992DYP

PLATE, BRACKET, SEAT LOCK - RED

$10.99

$

Usually ships in 2-12 days

0

29

Snapper 5414993DYP

PLATE, GUARD, TRANSMISSION, LH - RED

$43.99

$

Usually ships in 2-12 days

0

30

Snapper 5414994DYP

PLATE, GUARD, TRANSMISSION, RH - RED

$43.99

$

Usually ships in 2-12 days

0

31

Snapper 5414998DYP

PLATE, BRACKET, SUPPORT - RED

$36.99

$

Usually ships in 2-12 days

0

32

Snapper 5414999DYP

PLATE, SUPPORT, TANK - RED

$17.99

$

Usually ships in 2-12 days

0

33

Snapper 5415000DYP

PLATE, COVER, LH - RED

$110.99

$

Usually ships in 2-12 days

0

34

Snapper 5415001DYP

PLATE, COVER, RH - RED

$87.99

$

Usually ships in 2-12 days

0
