ZTX5-48 KW FAB (47RIAAA6010) - Cub Cadet Ultima 48" Zero-Turn Mower, Fab Deck, Kawasaki (2020) Transmission (RH) Parts Diagram

Ultima 48" Zero-Turn Mower, Fab Deck, Kawasaki

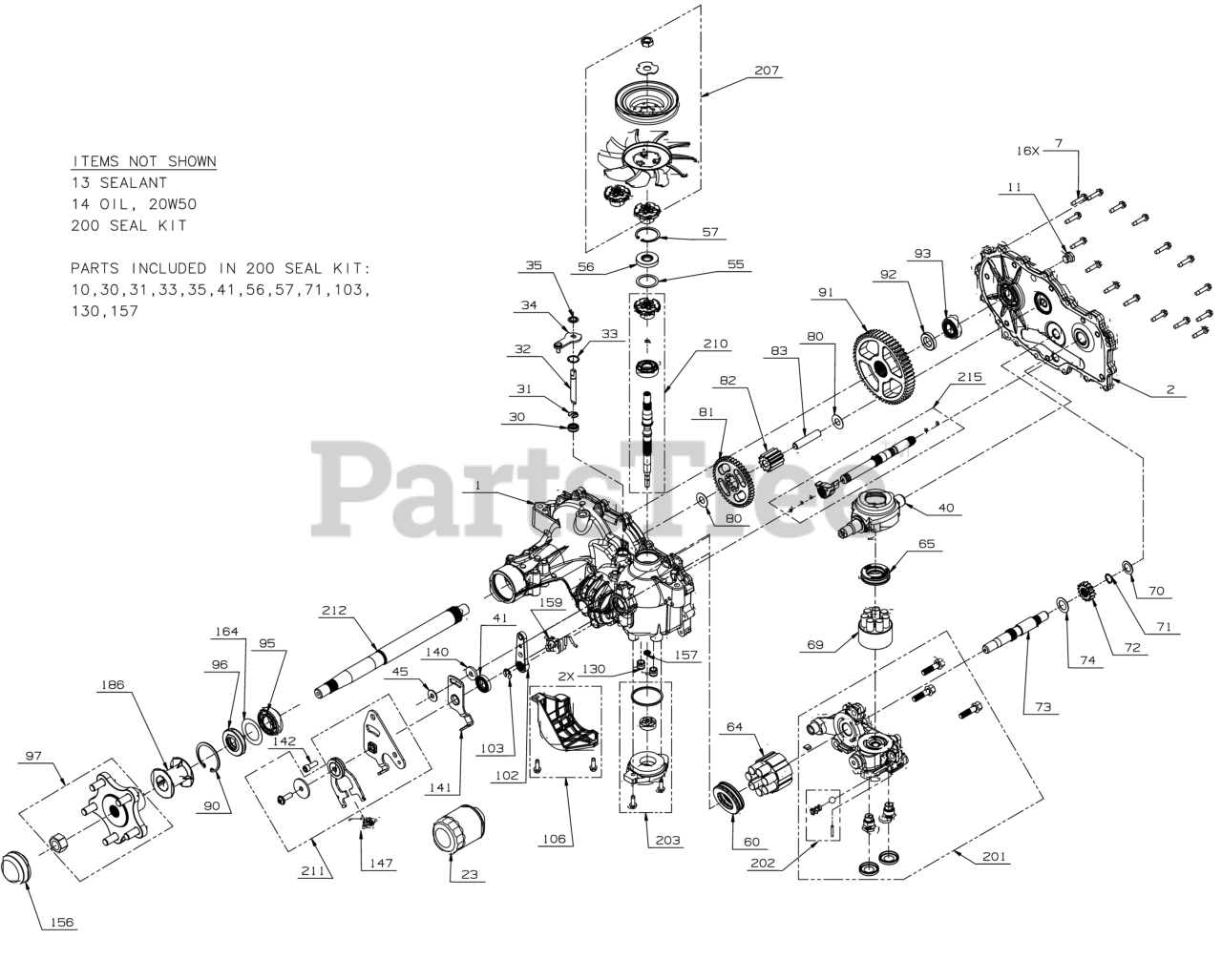

Transmission (RH) Parts Diagram

  • Title

1

Cub Cadet HG-72362

MAIN HOUSING KIT (RH)

$302.99

$

Usually ships in 3-6 days

0

2

Cub Cadet HG-71572

COVER KIT-SIDE (RH)

$140.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-53246

SCREW-WASHER HEAD

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-54730

VENT PLUG

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet HG-50928

SEALANT-HOUSING

$109.99

$

In Stock, Qty 8

0

23

Cub Cadet HG-52114P

OIL FILTER

$34.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-55232

SEAL-LIP .375 X .75 X .25

$5.49

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-51628

RETAINING RING

$4.49

$

In Stock, Qty 9

0

32

Cub Cadet HG-52136

BYPASS RODS

$10.99

$

In Stock, only 1 left!

0

33

Cub Cadet HG-51627

RETAINING RING

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-52370

ARM-BYPASS

$10.99

$

Usually ships in 3-6 days

0

35

Cub Cadet HG-51630

RETAINING RING

$4.49

$

In Stock, only 2 left!

0

40

Cub Cadet HG-51048

SWASHPLATE-TRUNNION

$93.99

$

Usually ships in 3-6 days

0

41

Cub Cadet HG-51140

LIP SEAL

$10.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 736-0371

FLAT WASHER

$4.99

$

In Stock, only 3 left!

0

55

Cub Cadet HG-50951

WASHER 1.23X1.56X

$4.99

$

Usually ships in 3-6 days

0

56

Cub Cadet HG-51161

LIP SEAL

$11.99

$

Usually ships in 3-6 days

0

57

Cub Cadet HG-50329

RETAINING RING

$11.99

$

Usually ships in 3-6 days

0

60

Cub Cadet HG-51462P

THRUST BEARING

$35.99

$

Usually ships in 3-6 days

0

64

Cub Cadet HG-72882

CYLINDER BLOCK ASSEMBLY

$149.99

$

Usually ships in 3-6 days

0

65

Cub Cadet HG-50551P

THRUST BEARING

$31.99

$

Usually ships in 3-6 days

0

69

Cub Cadet HG-70723

BLOCK KIT-7 PISTON

$241.99

$

In Stock, only 1 left!

0

70

Cub Cadet HG-44371

FLAT WASHER

$16.99

$

Usually ships in 3-6 days

0

71

Cub Cadet HG-44145

RETAINING RING

$4.49

$

In Stock, only 2 left!

0

72

Cub Cadet HG-52341

GEAR-14T

$54.99

$

Usually ships in 3-6 days

0

73

Cub Cadet HG-52150

MOTOR SHAFT

$86.99

$

Usually ships in 3-6 days

0

74

Cub Cadet HG-51069

MOTOR SHAFT WASHER

$4.99

$

Usually ships in 3-6 days

0

80

Cub Cadet HG-50132

WASHER

$4.99

$

Usually ships in 3-6 days

0

81

Cub Cadet HG-52110

GEAR-45T JACK SHAF

$27.99

$

Usually ships in 3-6 days

0

82

Cub Cadet HG-52586

GEAR-11 T

$42.99

$

Usually ships in 3-6 days

0

83

Cub Cadet HG-51083

PIN-JACKSHAFT

$35.99

$

Usually ships in 3-6 days

0

90

Cub Cadet HG-50859

RETAINING RING

$7.49

$

Usually ships in 3-6 days

0

91

Cub Cadet HG-53327

GEAR-54T

$87.99

$

Usually ships in 3-6 days

0

92

Cub Cadet HG-53336

SPACER .75X1.32X.257

$3.99

$

Usually ships in 3-6 days

0

93

Cub Cadet HG-72749

BALL BEARING

$34.99

$

Usually ships in 3-6 days

0

95

Cub Cadet HG-53656

BALL BEARING

$19.99

$

Usually ships in 3-6 days

0

96

Cub Cadet HG-53699

OIL SEAL

$9.99

$

In Stock, only 2 left!

0

97

Cub Cadet HG-71691

5 BOLT HUB KIT

$110.99

$

Usually ships in 3-6 days

0

102

Cub Cadet HG-53973

BRAKE LEVER

$12.99

$

Usually ships in 3-6 days

0

103

Cub Cadet HG-53019

RETAINING RING

$2.49

$

In Stock, only 1 left!

0

106

Cub Cadet HG-73041

FILTER GUARD KIT

$23.99

$

Usually ships in 3-6 days

0

130

Cub Cadet HG-54501

TUBE-CHARGE TRIPLE O-RING

$5.49

$

In Stock, Qty 10

0

140

Cub Cadet HG-54315

SPACER .32 x 1.005 x .179

$2.99

$

Usually ships in 3-6 days

0

141

Cub Cadet HG-51945

ARM-NEUTRAL (RH)

$14.99

$

In Stock, only 1 left!

0

142

Cub Cadet HG-71341

SCREWS KIT-RTN

$9.99

$

Usually ships in 3-6 days

0

147

Cub Cadet 732-04448

EXTENSION SPRING

$10.99

$

In Stock, Qty 20+

0

156

Cub Cadet HG-53088

COVER-NUT

$6.99

$

Usually ships in 3-6 days

0

157

Cub Cadet HG-72291

KIT-GEROTOR SEAL

$13.99

$

Usually ships in 3-6 days

0

159

Cub Cadet HG-53429

TORSION SPRING CCW

$18.99

$

Usually ships in 3-6 days

0

164

Cub Cadet HG-53514

SPACER

$4.99

$

Usually ships in 3-6 days

0

186

Cub Cadet HG-53496

TUBE-AXLE 2.03

$4.99

$

Usually ships in 3-6 days

0

200

Cub Cadet HG-72994

SEAL KIT
(Superseded to HG-73107)

$76.99

$

Usually ships in 3-6 days

0

201

Cub Cadet HG-71561

CENTER SECTION KIT (RH)

$406.99

$

Usually ships in 3-6 days

0

202

Cub Cadet HG-71436

KIT-CHARGE RELIEF

$10.99

$

Usually ships in 3-6 days

0

203

Cub Cadet HG-72274

CHARGE KIT

$121.99

$

In Stock, only 3 left!

0

207

Cub Cadet HG-72979

FAN & PULLEY KIT

$92.99

$

Usually ships in 3-6 days

0

209

Cub Cadet HG-72320

PULLER KIT-HUB

$245.99

$

Usually ships in 3-6 days

0

210

Cub Cadet HG-73047

INPUT SHAFT KIT

$93.99

$

Usually ships in 3-6 days

0

211

Cub Cadet HG-71588

RETURN KIT-NEUTRAL (RH) ZT2800 RZT

$51.99

$

In Stock, only 1 left!

0

212

Cub Cadet HG-53527

AXLE SHAFT

$259.99

$

Usually ships in 3-6 days

0

215

Cub Cadet HG-72753

OUTPUT SHAFT KIT (RH)

$75.99

$

Usually ships in 3-6 days

0

Cub Cadet 618P07634

HYDRO TRANSMISSION (RH)

$2007.99

$

Usually ships in 3-6 days

0
