ZTX5-54 KH FAB (47RTAAA7010) - Cub Cadet Ultima 54" Zero-Turn Mower, Fab Deck, Kohler (2022) Front Caster Parts Diagram

Ultima 54" Zero-Turn Mower, Fab Deck, Kohler

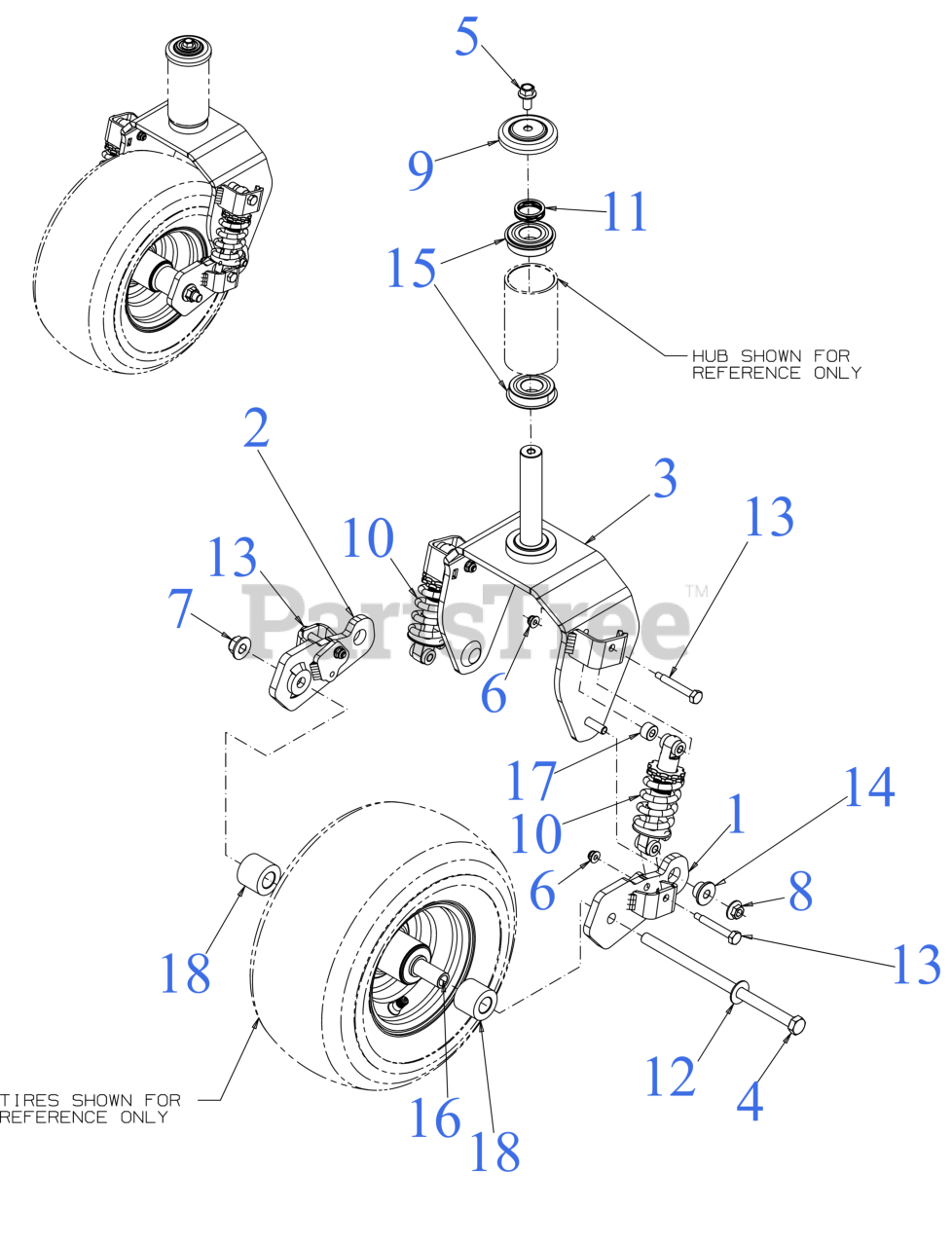

Front Caster Parts Diagram

  • Title

1

Cub Cadet 603-05500B

CASTER PIVOT BRACKET (RH)
(Superseded to 603-05500C)

$63.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-06419B

CASTER PIVOT BRACKET (LH)
(Superseded to 603-06419C)

$59.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-08599

CASTER WHEEL YOKE
(Superseded to 603-08599A)

Note: *CHOOSE COLOR WHEN ORDERING*

$170.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-05374

SCREW 1/2-13 x 9.5 GR5

$12.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-06551

BOLT - 3/8-16:.75:GR5:PATCH LOCK

$5.99

$

In Stock, Qty 11

0

6

Cub Cadet 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04150

NUT

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 721-04961A

AXLE CAP

$23.99

$

In Stock, only 2 left!

0

10

Cub Cadet 732P06646

SHOCK ABSORBER

$66.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-05033A

WAVE WASHER

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-3084

FLAT WASHER

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet 738-04172A

SHOULDER SCREW

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 738-06874

SHOULDER SPACER

$7.99

$

In Stock, only 1 left!

0

15

Cub Cadet 941-05022A

BALL BEARING 25X52X15

$21.99

$

In Stock, Qty 18

0

16

Cub Cadet 750-05351A

CASTER AXLE SPACER

$22.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 750-05512

SPACER .330X.715X.430

$20.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 750-07910

CASTER WHEEL SPACER

$3.99

$

Usually ships in 3-6 days

0
