ZTX6-54 KW FAB (47RIAHA7010) - Cub Cadet Ultima 54" Zero-Turn Mower, Fab Deck, Kawasaki (2020) Deck Parts Diagram

Ultima 54" Zero-Turn Mower, Fab Deck, Kawasaki

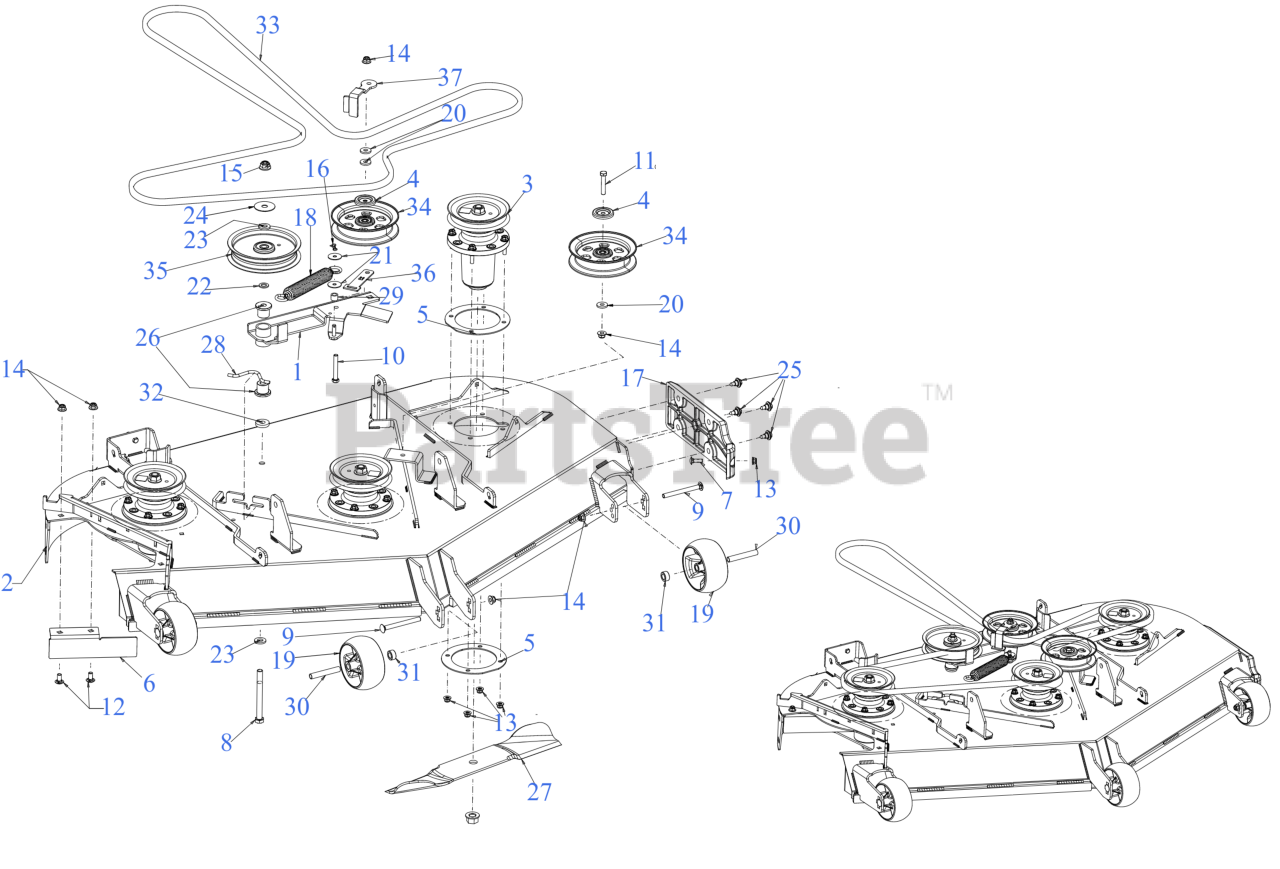

Deck Parts Diagram

  • Title

1

Cub Cadet 603E06959

54/60" DECK IDLER ASSEMBLY

$113.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603P07222

54" FAB DECK SHELL
(Superseded to 603P07222B)

Note: *CHOOSE COLOR WHEN ORDERING*

$1564.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-07416

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$

$

Not available

4

Cub Cadet 703-11504

PULLEY CAP 1.875 DIA

$6.49

$

In Stock, Qty 6

0

5

Cub Cadet 703E18464

SPINDLE PLATE

$35.99

$

In Stock, only 1 left!

0

6

Cub Cadet 703E20485

54" DECK CHUTE BAFFLE

$34.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0382

BOLT-HEX 1/2-13X5.0 GR5

$12.99

$

In Stock, only 4 left!

0

9

Cub Cadet 710-05384

CARRIAGE BOLT 3/8-16 x 4.00 GR5

$5.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$7.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3144

SCREW 3/8-16 x 2.0 GR5

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04150

NUT

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

17

Cub Cadet 731-13530

DECK SKID PLATE

$45.99

$

In Stock, only 2 left!

0

18

Cub Cadet 732-05360A

SPRING 1.25" DIA x 8.5" LONG
(Superseded to 732-05360B)

$36.99

$

In Stock, Qty 20+

0

19

Cub Cadet 734-04155

DECK WHEEL

$21.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0362

FLAT WASHER .322 ID x 1.25 x .060

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 736-04606

FLAT WASHER

$6.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-3019

FLAT WASHER .531X1.060X.134

$6.49

$

In Stock, Qty 8

0

24

Cub Cadet 736-3095

FLAT WASHER

$7.49

$

In Stock, Qty 7

0

25

Cub Cadet 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 741-06810

FLANGE BEARING

$10.99

$

In Stock, Qty 6

0

27

Cub Cadet 742P05533

19" BLADE

$42.99

$

In Stock, only 3 left!

0

28

Cub Cadet 747-10330

DECK SPRING HOOK

$3.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 750-05563

SPACER

$7.99

$

In Stock, Qty 11

0

30

Cub Cadet 750-06199

SPACER .38X.49X3.05LG

$8.99

$

In Stock, Qty 20+

0

31

Cub Cadet 750-0664

SPACER-.505 1D

$7.49

$

In Stock, Qty 12

0

32

Cub Cadet 750-09990

SPACER PLATE

$7.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 954-04329A

V-BELT B SEC x 148.25

$106.99

$

In Stock, Qty 20+

0

34

Cub Cadet 756-05332

5" FLAT IDLER PULLEY

$52.99

$

In Stock, only 1 left!

0

35

Cub Cadet 756-06523

IDLER PULLEY 6.0"

$81.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 783E11808

BELT KEEPER

$15.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 783E11828

54/60" IDLER KEEPER

$27.99

$

Usually ships in 3-6 days

0
