ZU 2014 K (80455) - Snapper Zero-Turn Mower, Unistat Drive, 20hp Seat Support Assembly & Body Cover Parts Parts Diagram

Zero-Turn Mower, Unistat Drive, 20hp

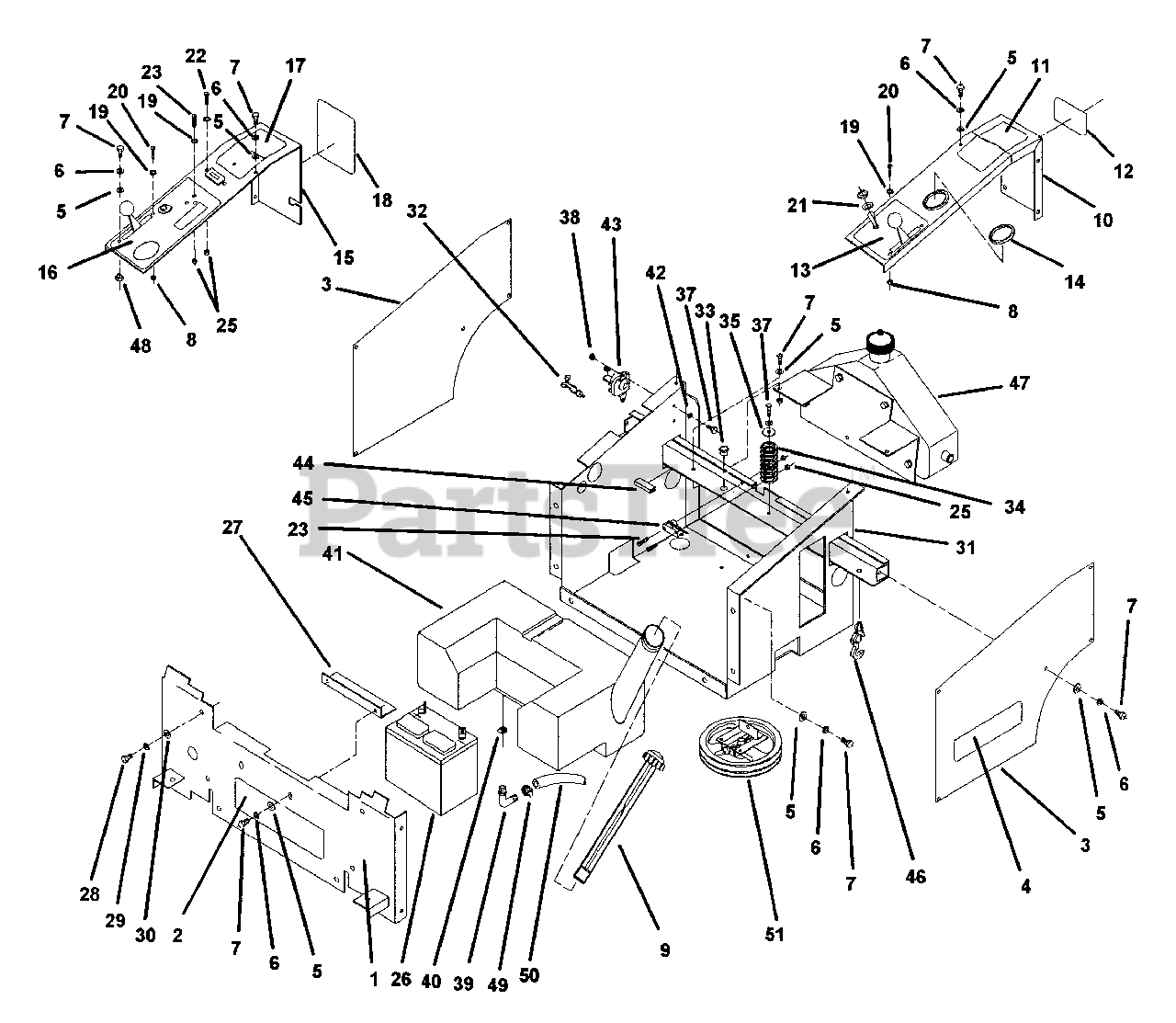

Seat Support Assembly & Body Cover Parts Parts Diagram

  • Title

1

Snapper 7079895

SEAT SUPPORT FRONT ASSEMBLY (W/DECALS)

$

$

Currently unavailable

2

Snapper 79643

DECAL, SNAPPER

$

$

Currently unavailable

3

Snapper 7079676

FENDER SKIRT

$

$

Currently unavailable

4

Snapper 7062298

DECAL, I.D. "ZU2014K"

$

$

Currently unavailable

5

Snapper 7090188

WASHER, FLAT STD. 5/16"
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

6

Snapper 7079267

LOCK WASHER, 5/16" HEAVY SPRING
(Superseded to 7079267YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7076934

BOLT, 5/16-18 X 3/4" GR. 5
(Superseded to 7076934YP)

$

$

Not available

8

Snapper 7079828

LOCKNUT, #8-32 NYLOC

$

$

Currently unavailable

9

Snapper 7079858

FUEL GAUGE CAP
(Superseded to 7079858YP)

$

$

Not available

10

Snapper 7062056

FENDER CAP (w/ decals) L.H.

$

$

Currently unavailable

11

Snapper 7079238

DECAL, CAUTION

$

$

Not available

12

Snapper 7079916

DECAL, TOWING WARNING

$

$

Not available

13

Snapper 7079913

DECAL, BLADE/CHOKE

$

$

Not available

14

Snapper 7062058

TRIM, U-CHANNEL GAS TANK
(Superseded to 7062058YP)

$8.49

$

Usually ships in 2-12 days

0

15

Snapper 7062057

FENDER CAP (w/decals, less #62391) R.H.

$

$

Currently unavailable

16

Snapper 7079914

DECAL, INSTRUMENT PANEL

$

$

Currently unavailable

17

Snapper 7079239

DECAL, CAUTION

$

$

Currently unavailable

18

Snapper 7062391

DECAL, BELT TENSIONING

$

$

Currently unavailable

19

Snapper 7079826

WASHER, #8 FLAT

$

$

Currently unavailable

20

Snapper 7079848

SCREW, MACHINE, #8-32 X 1/2"

$

$

Currently unavailable

21

Snapper 7079890

D-WASHER

$

$

Currently unavailable

22

Snapper 7079825

SCREW, MACHINE, #6-32 X 5/8"
(Superseded to 7079825YP)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 7079281

SCREW, MACHINE, #6-32 X 1"

$

$

Not available

?24

Snapper 7079849

SCREW, MACHINE, #8-32 X 3/4"

$

$

Currently unavailable

25

Snapper 7079310

LOCKNUT, #6-32 NYLOC

$

$

Currently unavailable

26

Snapper 7079482

BATTERY 12 VOLT

$

$

Not available

27

Snapper 7079698

BATTERY CLAMP ANGLE

$

$

Not available

28

Snapper 7091086

BOLT, 3/8-16 X 3/4" GR. 5
(Superseded to 703237)

Note: Was 79266

$4.99

$

Usually ships in 2-12 days

0

29

Snapper 7079268

LOCK WASHER, 3/8" HEAVY SPRING
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

30

Snapper 7090517

WASHER, FLAT STD. 3/8"
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

31

Snapper 7079686

SEAT SUPPORT WELDMENT

$

$

Currently unavailable

32

Snapper 7079864

BLIND HOLE KURLY
(Superseded to 7079864YP)

$4.99

$

Usually ships in 2-12 days

0

33

Snapper 7079191

BUSHING, PLASTIC

$

$

Not available

34

Snapper 7079857

SEAT SPRING

$

$

Currently unavailable

35

Snapper 7079694

WASHER

$

$

Not available

?36

Snapper 7090052

LOCK WASHER, 1/4" SPLIT SPRING
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

37

Snapper 7091495

BOLT, 1/4-20 X 3/4" GR. 5
(Superseded to 703925)

Note: Was 90073

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 7076978

LOCKNUT, 1/4--20 NYLOC
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7079853

ELBOW, 90D 1/4 NPT X 1/4 BARB
(Superseded to 7079853YP)

$18.99

$

Usually ships in 2-12 days

0

40

Snapper 7079870

CLAMP, .31 MIN. X 1.87 MAX. HOSE DIA.

$

$

Currently unavailable

41

Snapper 7079856

FUEL TANK

$

$

Not available

42

Snapper 7091294

WASHER FLAT STD. 1/4"
(Superseded to 703332)

Note: Was 79410

$4.49

$

In Stock, Qty 20+

0

43

Snapper 7079193

SOLENOID, 12V STARTER
(Superseded to 7079193YP)

$55.99

$

Usually ships in 2-12 days

0

44

Snapper 7079897

EDGE GUARD

$

$

Currently unavailable

45

Snapper 7079194

SWITCH, ENCL, SPDT 15A HINGED LEVER

$

$

Not available

46

Snapper 7079854

FITTING 1/2" ROSE BUD CLIP
(Superseded to 7079854YP)

$3.99

$

Usually ships in 2-12 days

0

47

OIL TANK ASSEMBLY

Note: See "Oil Tank Assembly"

$

$

Not available

48

Snapper 7091298

NUT, HEX. 5/16-18 NYLOC
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

49

Snapper 7079952

CLAMP, HOSE 1/2 ",STAINLESS

$

$

Currently unavailable

50

Snapper 79218

HOSE, FUEL 1/4 ID X 1/2 OD

$

$

Currently unavailable

51

DOUBLE GROOVE IDLER ASSEMBLY

Note: See "Double Groove Idler Assembly"

$

$

Not available
