ZU 6004 M (80482) - Snapper 60" Mower Deck Assembly 60" Deck Assembly Parts Diagram

60" Mower Deck Assembly

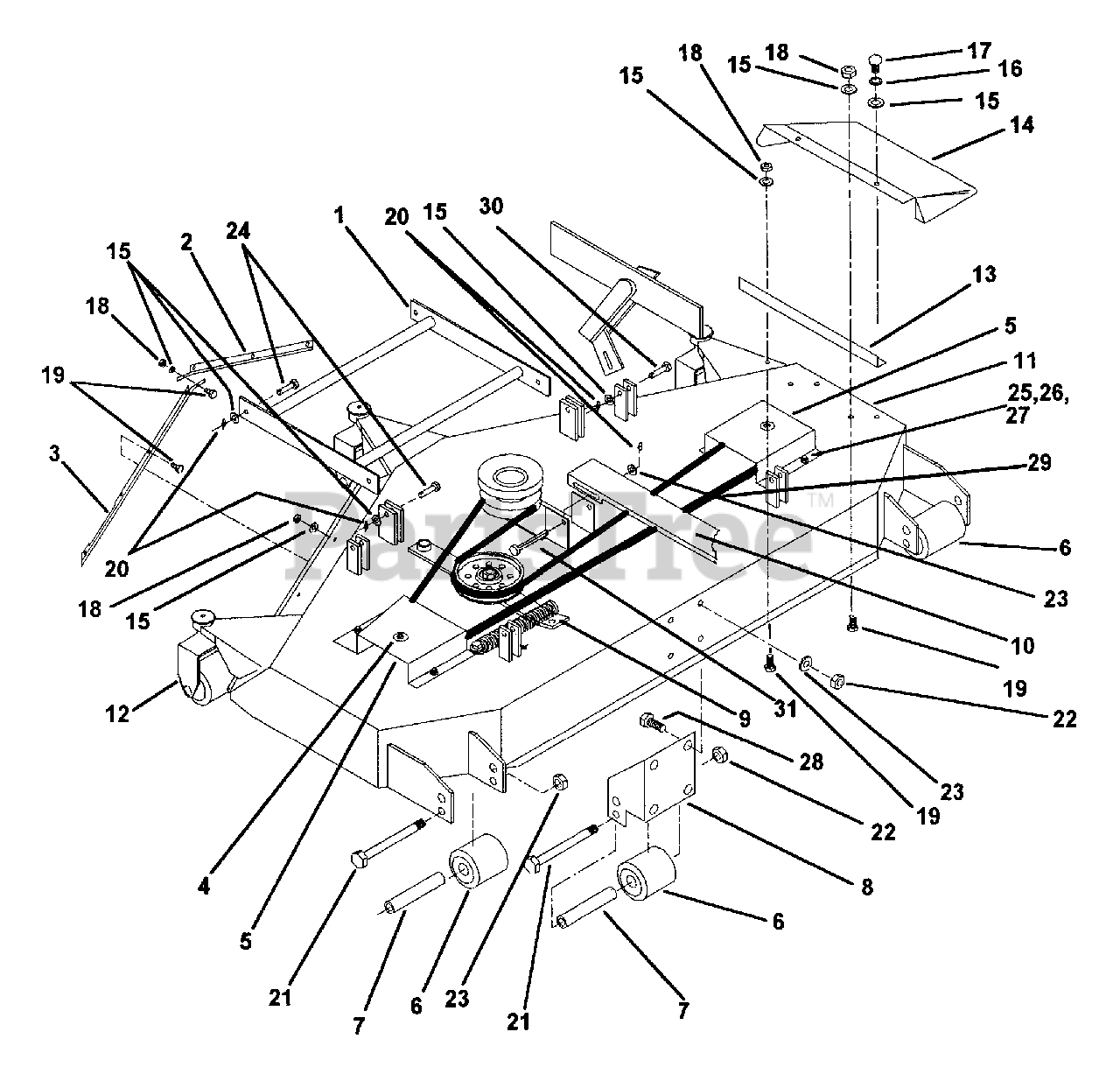

60" Deck Assembly Parts Diagram

  • Title

1

Snapper 7079655

DRAG BAR WELDMENT
(Superseded to 7079655YP)

$128.99

$

Usually ships in 2-12 days

0

2

Snapper 7062221

LIP BAFFLE R.H.

$

$

Not available

3

Snapper 7062222

LIP BAFFLE L.H.

$

$

Not available

4

SPINDLE ASSEMBLY

Note: See "Deck Spindle Assembly"

$

$

Not available

5

Snapper 7062217

BELT GUARD
(Superseded to 7062217YP)

$31.99

$

Usually ships in 2-12 days

0

6

Snapper 7079868

ROLLER, 3-3/4 X 4-13/16" LONG
(Superseded to 7079868YP)

$67.99

$

In Stock, only 3 left!

0

7

Snapper 7079882

BUSHING
(Superseded to 7079882YP)

$33.99

$

Usually ships in 2-12 days

0

8

Snapper 7062219

BRACKET, REAR CENTER

$

$

Currently unavailable

9

SINGLE IDLER PARTS

Note: See "Single Idler Assembly"

$

$

Not available

10

DOUBLE IDLER CHANNEL ASSEMBLY

Note: See "Double Idler Channel Assembly"

$

$

Not available

11

Snapper 7062393

60" DECK WELDMENT
(Superseded to 7062393YP)

$1652.99

$

Usually ships in 2-12 days

0

12

60" DECK CASTER WHEEL

Note: See "60" Deck Caster Wheel Assembly"

$

$

Not available

13

Snapper 7062218

OUTLET STIFFENER

$

$

Currently unavailable

14

Snapper 7062220

CHUTE ASSEMBLY
(Superseded to 7062220YP)

$210.99

$

Usually ships in 2-12 days

0

Snapper 7079234

DECAL "BLOODY STUMP"

$

$

Currently unavailable

15

Snapper 7090188

WASHER, FLAT STD. 5/16"
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

16

Snapper 7090391

LOCK WASHER, INT. STAR 5/16"
(Superseded to 703587)

Note: Was 79851

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7079850

THUMBSCREW, 5/16-18 X 3/4" LONG

$

$

Currently unavailable

18

Snapper 7091298

NUT, 5/16-18 NYLOC
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7090316

BOLT, 5/16-18 X 3/4" CARRIAGE
(Superseded to 703225)

Note: Was 79438

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7091593

COTTER RUE RING, 5/16 - 3/8 PIN
(Superseded to 703355)

Note: Was 79291

$3.99

$

In Stock, only 4 left!

0

21

Snapper 7079845

BOLT, 3/8-16 X 6" GR. 5
(Superseded to 7091617YP)

$6.99

$

Usually ships in 2-12 days

0

22

Snapper 7091299

NUT, 3/8-16 NYLOC
(Superseded to 703117)

Note: Was 79273

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7090517

WASHER, FLAT STD. 3/8"
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

24

Snapper 7079831

CLEVIS PIN, 5/16 X 1-1/4" LONG
(Superseded to 7079831YP)

Note: Was 79284

$3.99

$

Usually ships in 2-12 days

0

25

Snapper 7091495

BOLT, 1/4-20 X 3/4" GR. 5
(Superseded to 703925)

Note: Was 90073

$4.49

$

Usually ships in 2-12 days

0

26

Snapper 7090052

LOCK WASHER, 1/4" SPLIT SPRING
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

27

Snapper 7091294

WASHER, FLAT STD. 1/4"
(Superseded to 703332)

Note: Was 79410

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7090603

BOLT, 3/8-16 X 7/8" GR. 5

$2.99

$

In Stock, only 1 left!

0

29

Snapper 7079186

DECK CROSS BELT A-112, KEVLAR
(Superseded to 7079186YP)

$60.99

$

In Stock, only 4 left!

0

30

Snapper 7013996

CLEVIS PIN, 3/8 X 2" LONG
(Superseded to 7013996SM)

Note: Was 79318

$3.49

$

In Stock, only 1 left!

0

31

Snapper 7090071

CLEVIS PIN, 3/8 X 2-3/4 O.A.L.
(Superseded to 703818)

Note: Was 62163

$3.49

$

In Stock, only 1 left!

0

Snapper 7062199

DECAL, "GREASE SPINDLES"
(Superseded to 7062199YP)

$10.99

$

Usually ships in 2-12 days

0

Snapper 7079240

DECAL, "WARNING- ROTATING BLADES"
(Superseded to 7079240YP)

$

$

Not available

Snapper 7079242

DECAL, "MISSING CHUTE"

$

$

Currently unavailable

Snapper 7062390

DECAL, "MODEL #ZU6004M"

$

$

Currently unavailable

Snapper 7062065

ENGINE TO DECK BELT, BP-87
(Superseded to 7062065YP)

$42.99

$

Usually ships in 2-12 days

0
