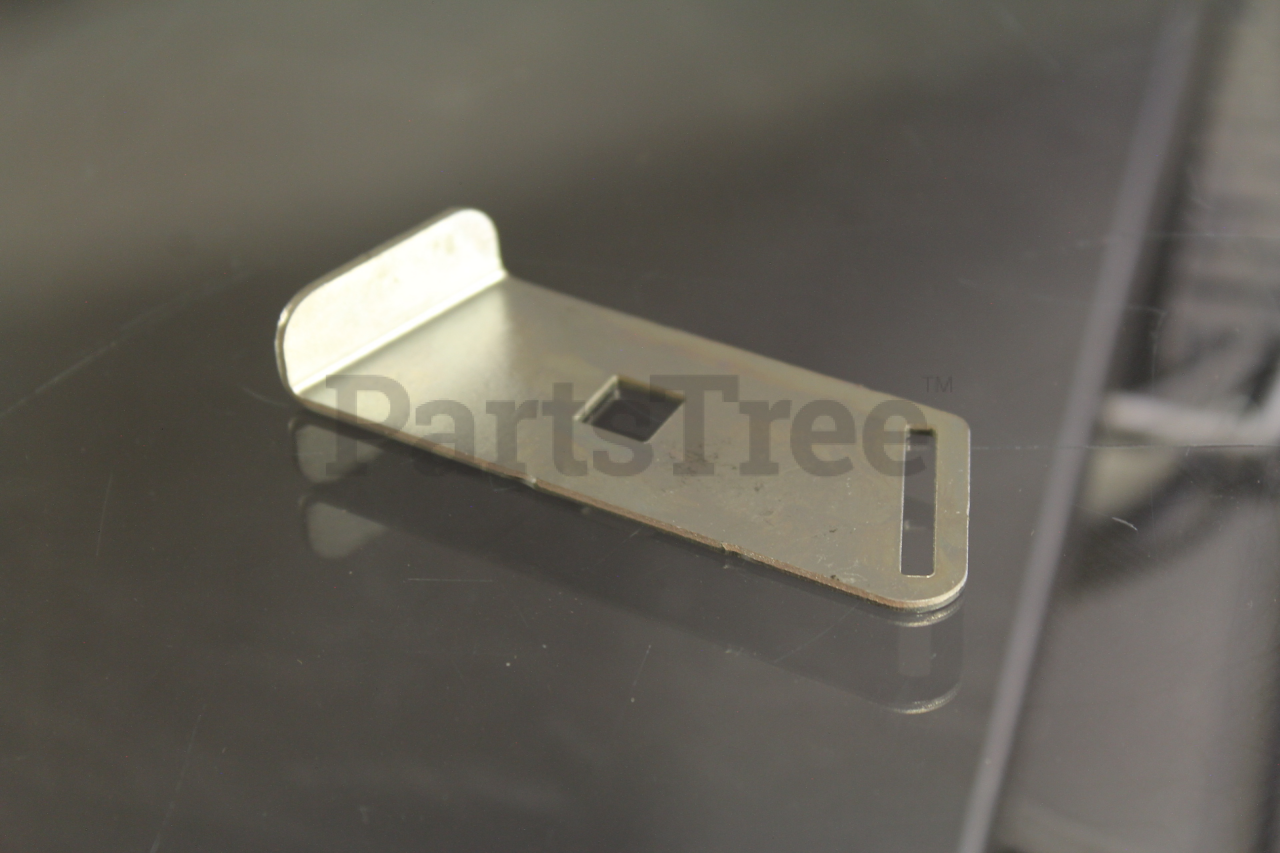

Lawn-Boy 107-7471 Guide Plate
5.15 in.
2.25 in.
0.65 in.
0.09 lbs.
Description...
Hide
Plates typically refer to metal sheets of varying thickness for several different purposes within your equipment. They can support and hold parts as well as segment different functions within components of your equipment. A fan mounting plate, for example, distributes the weight of the fan among the fasteners. Plates include shave plates on snow throwers, muffler plates, cylinder head plates, or a fan mounting plate. Plates can wear over time from abrasion and friction and may need to be replaced.
$3.49
$
In Stock, only 1 left!
Often Bought with this Part
Models that Use this Part
Your part was not found on any models.
- If you feel this is in error or desire further assistance, please call us!
10605 - Lawn-Boy 20" Walk-Behind Mower (SN: 311000001 - 311999999) (2011)
Engine and Blade Assembly
10605 - Lawn-Boy 20" Walk-Behind Mower (SN: 312000001 - 312999999) (2012)
Engine and Blade Assembly
10625 - Lawn-Boy 20" Walk-Behind Mower (SN: 311000001 - 311999999) (2011)
Engine and Blade Assembly
10658 - Lawn-Boy 20" Walk-Behind Mower (SN: 310000001 - 310999999) (2010)
ENGINE AND BLADE ASSEMBLY
10687 - Lawn-Boy Insight Walk-Behind Mower (SN: 260000001 - 260999999) (2006)
BLADE BRAKE CLUTCH ASSEMBLY
10697 - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 250000001 - 250999999) (2005)
BRAKE ASSEMBLY
10697 - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 260000001 - 260999999) (2006)
BBC BLADE ASSEMBLY
