Toro Commercial 117-0427-01  Guard Mounting Bracket

  • TLB 119-7303-01 - Primary (Slide 1 of 1)

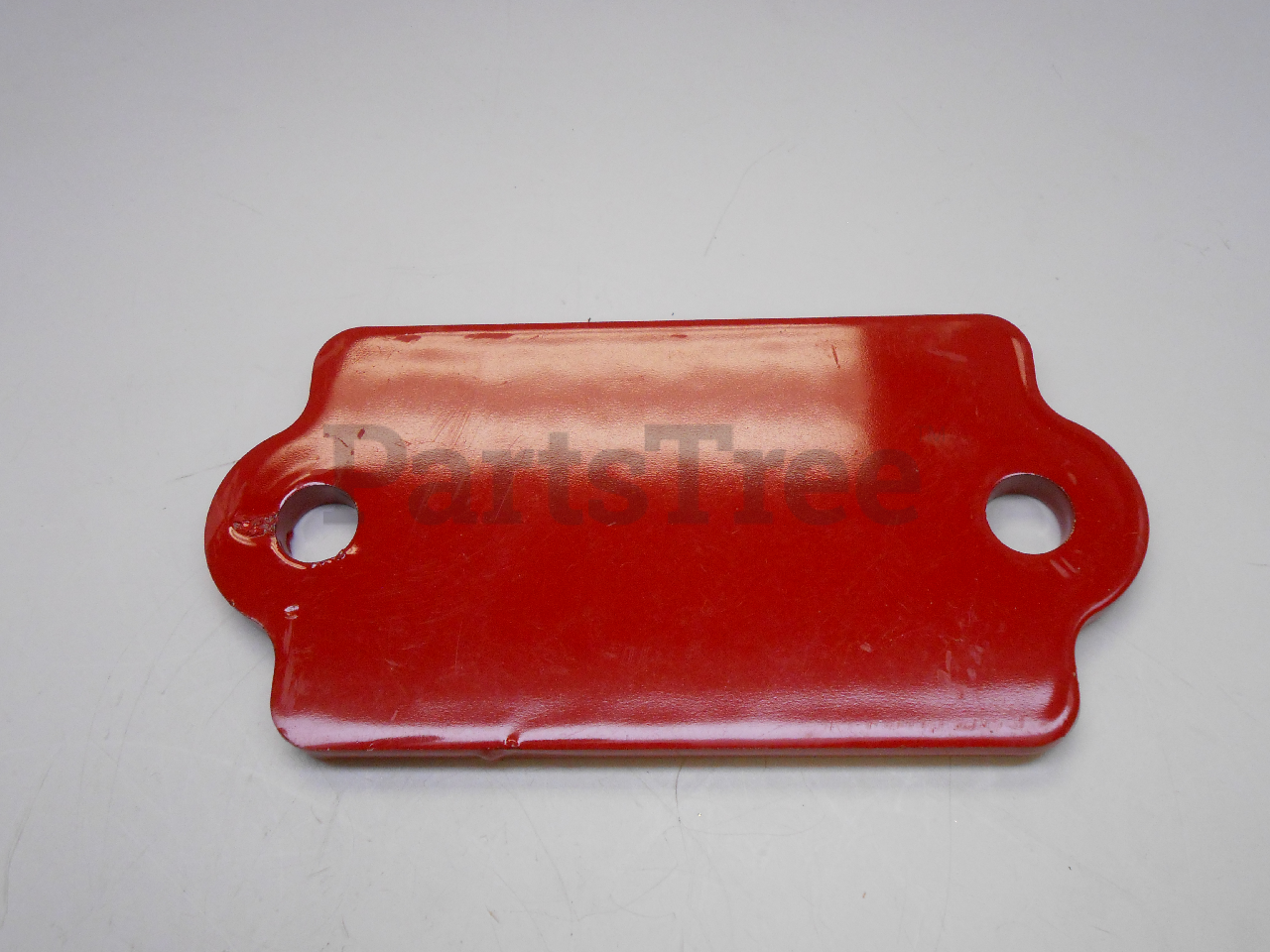

Toro 117-0427-01

Guard Mounting Bracket
(Superseded to 119-7303-01)

0.62 lbs.

Description... Hide
The Bracket, sometimes referred to as a brace or mount, is often critical to supporting the weight of another component or strengthening an attachment point. Common uses are the handle bracket, idler bracket, or anti-scalp roller bracket. If subjected to substantial torque, many brackets are designed to break in order to protect other components. When replacing a bracket, confirm if you need the Left-Hand (LH) or Right-Hand (RH) bracket as they often differ. Left or right is based on the operator position.

$13.99

$

Usually ships in 3-6 days

0

Models that Use this Part

Your part was not found on any models.

  • If you feel this is in error or desire further assistance, please call us!

74534 - Toro 36" GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010)

MAIN FRAME ASSEMBLY

74536 - Toro 40" GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010)

MAIN FRAME ASSEMBLY

74538 - Toro 48" GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010)

FRAME ASSEMBLY

74539 - Toro 52" GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010)

FRAME ASSEMBLY

74548 - Toro 48" GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010)

FRAME ASSEMBLY

74549 - Toro 52" GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010)

FRAME ASSEMBLY

74558 - Toro 48" GrandStand Stand-On Mower (SN: 290000001 - 290000209) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY

74558 - Toro 48" GrandStand Stand-On Mower (SN: 290000210 - 290003000) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY

74558 - Toro 48" GrandStand Stand-On Mower (SN: 290003001 - 290999999) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY

74559 - Toro 52" GrandStand Stand-On Mower (SN: 290000001 - 290000156) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY

74559 - Toro 52" GrandStand Stand-On Mower (SN: 290000157 - 290003000) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY

74559 - Toro 52" GrandStand Stand-On Mower (SN: 290003001 - 290999999) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY

74567 TE - Toro 122cm GrandStand Stand-On Mower (SN: 290000001 - 290999999) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY

74567 TE - Toro 122cm GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010)

FRAME AND MUFFLER GUARD ASSEMBLY

74568 TE - Toro 122cm GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010)

FRAME ASSEMBLY

74568 - Toro 48" GrandStand Stand-On Mower (SN: 290000001 - 290000205) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY

74568 - Toro 48" GrandStand Stand-On Mower (SN: 290000206 - 290003000) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY

74568 - Toro 48" GrandStand Stand-On Mower (SN: 290003001 - 290999999) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY

74569 - Toro 52" GrandStand Stand-On Mower (SN: 290000001 - 290000206) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY

74569 - Toro 52" GrandStand Stand-On Mower (SN: 290000207 - 290003000) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY

74569 - Toro 52" GrandStand Stand-On Mower (SN: 290003001 - 290999999) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY

79558 - Toro 48" GrandStand Stand-On Mower (SN: 290000001 - 290003000) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY

79558 - Toro 48" GrandStand Stand-On Mower (SN: 290003001 - 290999999) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY

79559 - Toro 52" GrandStand Stand-On Mower (SN: 290005001 - 290999999) (2009)

FRAME AND MUFFLER GUARD ASSEMBLY
