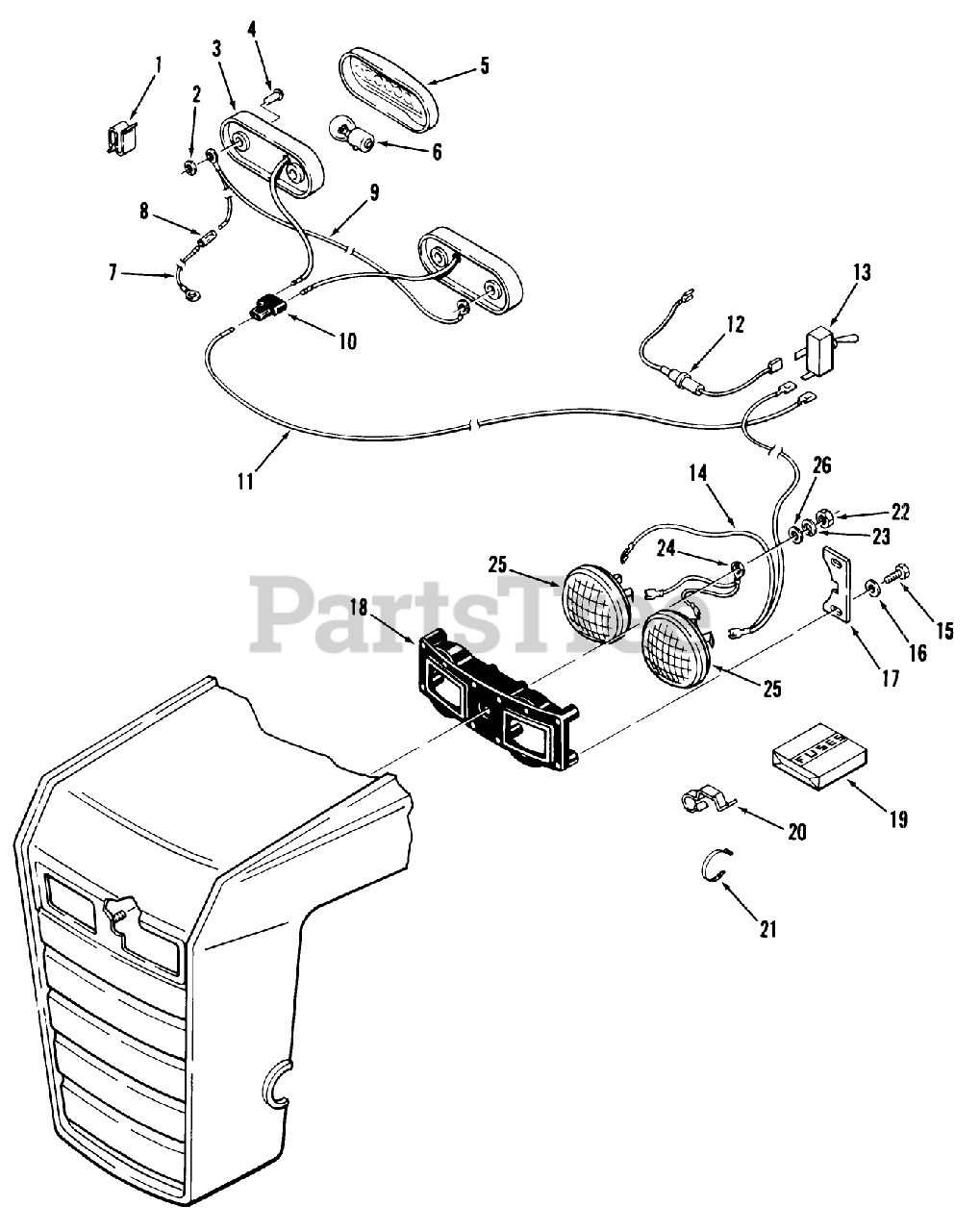

01-14KS01 (C-145) - Toro Garden Tractor (1980) Head And Tail Lights Parts Diagram

Garden Tractor

Head And Tail Lights Parts Diagram

  • Title

1

Toro 3023

DISCONTINUED

$

$

Not available

2

Toro 920005

WASHER

$

$

Not available

3

Toro 105202

DISCONTINUED

$

$

Not available

4

Toro 923797

See Supercession: 3250-25
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

5

Toro 102884

See Supercession: 112564
(Superseded to 112564)

$10.99

$

In Stock, only 2 left!

0

6

Toro 8043

Bulb

Note: CHECK AUTOMOTIVE NUMBER ON BULB BEFORE ORDERING. IF NUMBER IS 194, OBTAIN REPLACEMENT BULB LOCALLY.

$

$

Currently unavailable

7

Toro 107399

DISCONTINUED

$

$

Not available

8

Toro 6922

DISCONTINUED

$

$

Not available

9

Toro 108218

DISCONTINUED

$

$

Not available

10

Toro 7618

DISCONTINUED

$

$

Not available

11

Toro 108132

DISCONTINUED

$

$

Not available

12

Toro 101846

DISCONTINUED

$

$

Not available

13

Toro 102138

SWITCH-LIGHTS

$42.99

$

In Stock, only 1 left!

0

14

Toro 108131

WIRE-HEADLIGHTS

$10.99

$

Usually ships in 3-6 days

0

15

Toro 926585

DISCONTINUED

$

$

Not available

16

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

17

Toro 108054

See Supercession: 108911
(Superseded to 108911)

$4.99

$

In Stock, Qty 7

0

18

Toro 108036

DISCONTINUED

$

$

Not available

19

Toro 101639

FUSE

$

$

Not available

20

Toro 8519

DISCONTINUED

$

$

Not available

21

Toro 100571

DISCONTINUED

$

$

Not available

22

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

23

Toro 920155

DISCONTINUED
(Superseded to 3254-23)

$

$

Not available

24

Toro 108130

DISCONTINUED

$

$

Not available

25

Toro 102881

HEADLAMP

$

$

Not available

26

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0
