01-19KE02 (C-195) - Toro Garden Tractor (1984) 3-POINT HITCH Parts Diagram

Garden Tractor

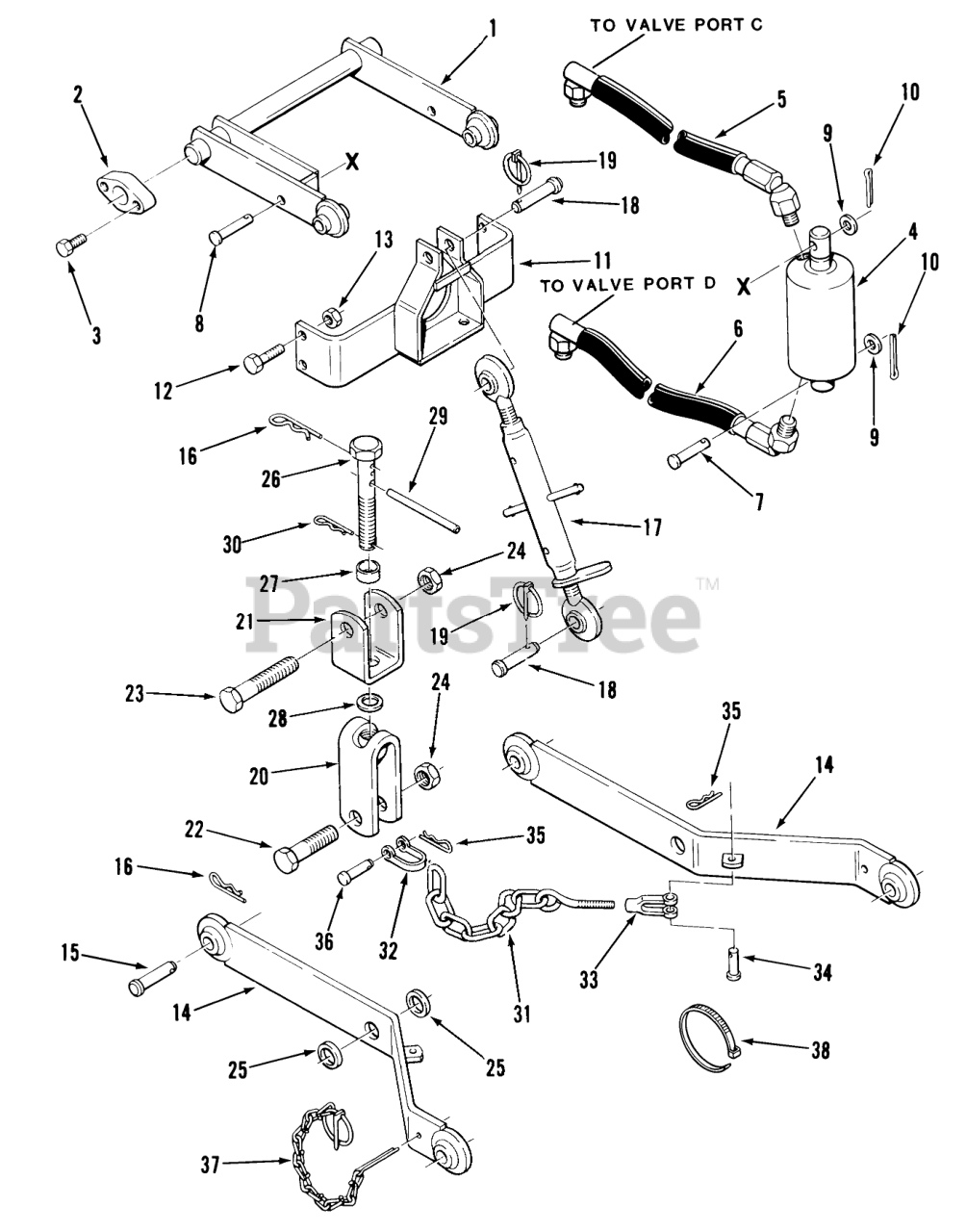

3-POINT HITCH Parts Diagram

  • Title

1

Toro 109787

LIFT BAR ASSEMBLY R

$

$

Not available

2

Toro 109786

BLOCK

$

$

Not available

3

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

4

Toro 8365

Cylinder

$

$

Not available

5

Toro 110490

Hydraulic Hose 26.5 in. Long ( 59.7 cm)-w/973310 O-rings-Top of Cylinder Port C

$

$

Not available

6

Toro 110491

Hydraulic Hose 28.75 in. Long (73 cm)-w/973310 O-rings-Bottom of Cylinder Port D

$

$

Not available

7

Toro 933000

Pin

$

$

Not available

8

Toro 933003

Clevis Pin 1/2 x 2 3/4

$

$

Currently unavailable

9

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

10

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

11

Toro 109791

ASSY UPPER LINK PIVO

$

$

Not available

12

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

13

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

14

Toro 104673

ASSY LOWER HITCH LNK B

$

$

Not available

15

Toro 8784

PIN 5/8 DIA LINK ATT

$

$

Not available

16

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 12

0

17

Toro 8752

Link-Upper

$

$

Not available

18

Toro 8820

PIN HITCH UPPER LINK

$

$

Not available

19

Toro 8796

HITCH PIN ASSY

$

$

Not available

20

Toro 102109

Adjuster

$

$

Not available

21

Toro 102091

LIFT BAR

$

$

Not available

22

Toro 908105

Bolt 3/-10 x 3

$

$

Not available

23

Toro 908106

Bolt 3/-10 X 3 1/2

$

$

Not available

24

Toro 915610

E.S. Nut 3/4-10

$

$

Not available

25

Toro 8244

SPACER

$13.99

$

Usually ships in 3-6 days

0

26

Toro 105795

Adjusting Bolt

$

$

Not available

27

Toro 100676

Spacer

$

$

Not available

28

Toro 920232

WASHER
(Superseded to 9202324)

$1.49

$

In Stock, only 3 left!

0

29

Toro 933240

PIN

$

$

Not available

30

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

31

Toro 102112

Sway Chain

$

$

Not available

32

Toro 105820

Clevis
(Superseded to 79-2280)

$19.99

$

Usually ships in 3-6 days

0

33

Toro 8812

CLEVIS

$43.99

$

Usually ships in 3-6 days

0

34

Toro 932121

PIN

$

$

Not available

35

Toro 933503

USE 933503P PIN

$5.99

$

Usually ships in 3-6 days

0

36

Toro 105821

Clevis Pin
(Superseded to 9329584)

$

$

Not available

37

Toro 8795

Klik Pin
(Superseded to 283-76)

$8.99

$

Usually ships in 3-6 days

0

38

Toro 100571

PLASTIC TIE

$

$

Not available
