01-19KE02 (C-195) - Toro Garden Tractor (1984) Seat Parts Diagram

Garden Tractor

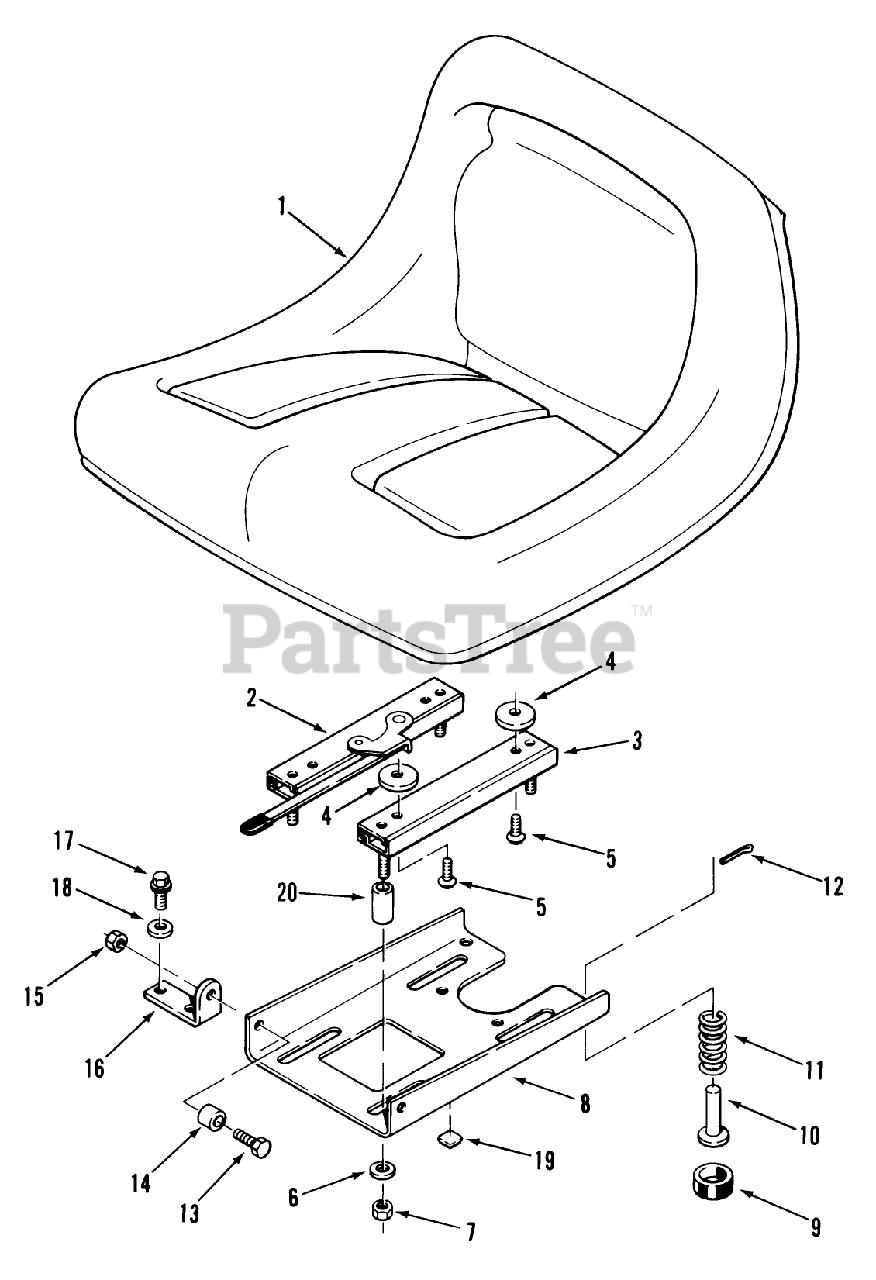

Seat Parts Diagram

  • Title

1

Toro 109986

See Supercession: 112292
(Superseded to 112292)

$

$

Not available

2

Toro 109987

DISCONTINUED

$

$

Not available

3

Toro 109988

DISCONTINUED

$

$

Not available

4

Toro 109989

SPACER-NYLON

$5.99

$

In Stock, only 2 left!

0

5

Toro 109990

See Supercession: 32144-14
(Superseded to 32144-14)

$4.99

$

Usually ships in 3-6 days

0

6

Toro 920038

See Supercession: 3256-3
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 15

0

7

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

8

Toro 108681

DISCONTINUED
(Superseded to 111714)

$

$

Not available

9

Toro 106331

DISCONTINUED

$

$

Not available

10

Toro 106449

PIN

$8.49

$

Usually ships in 3-6 days

0

11

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

12

Toro 932008

See Supercession: 3272-6
(Superseded to 3-2726)

$

$

Not available

13

Toro 908018

See Supercession: 322-4
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

14

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

15

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

16

Toro 105524

DISCONTINUED

$

$

Not available

17

Toro 926699

DISCONTINUED

$

$

Not available

18

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

19

Toro 518211

BUMPER

$4.49

$

In Stock, only 2 left!

0

20

Toro 8077

DISCONTINUED

$

$

Not available
