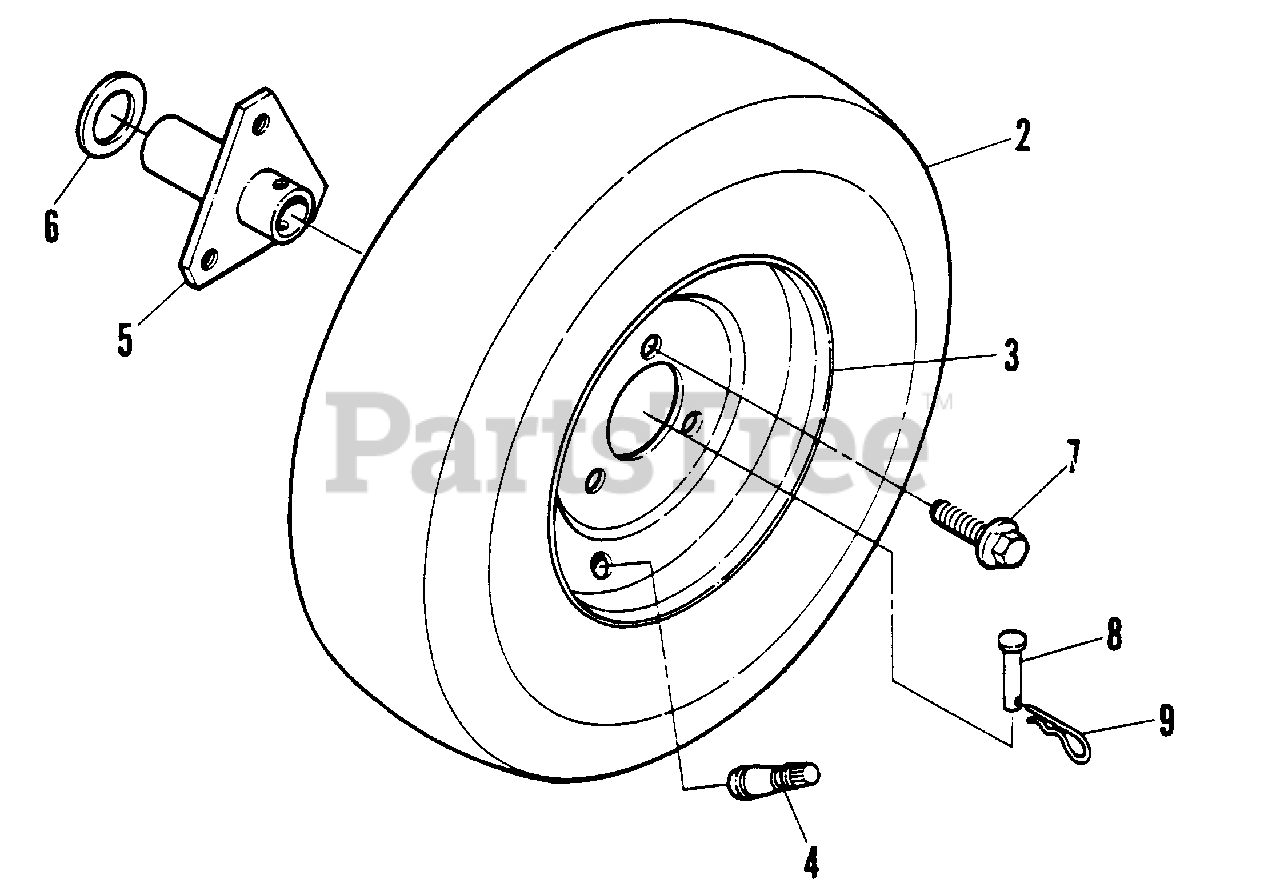

10303 (80163) - Snapper 30" Snow Thrower, 10hp Wheels, Hub Parts Diagram

30" Snow Thrower, 10hp

Wheels, Hub Parts Diagram

  • Title

?1

Snapper 7052269

ASSEMBLY, Wheel & Tire
(Superseded to 7052269YP)

Note: Was 50714 (24" & 26" Models) (Includes Items 2, 3, & 4) (Series 1 & 2)

$152.99

$

In Stock, only 2 left!

0

Snapper 7051803

ASSEMBLY, Wheel & Tire (Snow Hog)

Note: (24" & 26" Models) (Includes Items 2, 3, & 4) (Series 3 & 4)

$

$

Not available

Snapper 57270

ASSEMBLY, Wheel & Tire

Note: Was 50713 (30" Models) (Includes Items 2, 3, & 4) (Series 1 & 2)

$

$

Currently unavailable

Snapper 7051871

ASSEMBLY, Wheel & Tire (Snow Hog)
(Superseded to 7051871YP)

Note: (30" Models) (Includes Items 2, 3, & 4) (Series 3 & 4)

$110.99

$

Usually ships in 2-12 days

0

2

Snapper 7010524

TIRE, 16 x 4.80 - 8
(Superseded to 7023889YP)

Note: (24" & 26" Models) (Series 1 & 2)

$67.99

$

Usually ships in 2-12 days

0

Snapper 7023495

TIRE, 16 x 4.80 x 8 (Snow Hog)

Note: (24" & 26" Models) (Series 3 & 4)

$

$

Not available

Snapper 7046245

TIRE, 16 x 6.50 x 8
(Superseded to 7073584YP)

Note: Was 11097 (30" Models) (Series 1 & 2)

$170.99

$

Usually ships in 2-12 days

0

Snapper 7023672

TIRE, 16 x 6.50 x 8 (Snow Hog)

Note: (30" Models) (Series 3 & 4)

$

$

Currently unavailable

3

Snapper 7017145

RIM,
(Superseded to 7017145YP)

Note: Was 12162 (24" & 26" Models)

$134.99

$

Usually ships in 2-12 days

0

Snapper 7012163

RIM,
(Superseded to 7012163YP)

Note: (30" Models)

$121.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Snap-In
(Superseded to 7012234SM)

$6.49

$

In Stock, only 2 left!

0

5

Snapper 7040464

HUB, Wheel

$

$

Not available

6

Snapper 7010935

WASHER, 3/4 x 1-1/8" Thrust
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7091502

BOLT, 1/2-20 x 3/4" Hex Head Lug
(Superseded to 703431)

Note: Was 90367

$4.99

$

In Stock, Qty 13

0

8

Snapper 7029841

PIN, 5/16 x 1-11/16 Clevis
(Superseded to 704029)

Note: Was 12407

$4.49

$

In Stock, Qty 6

0

9

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0
