11-12K802 (C-125) - Toro Lawn Tractor (1984) Electrical System-Single Cylinder Models Parts Diagram

Lawn Tractor

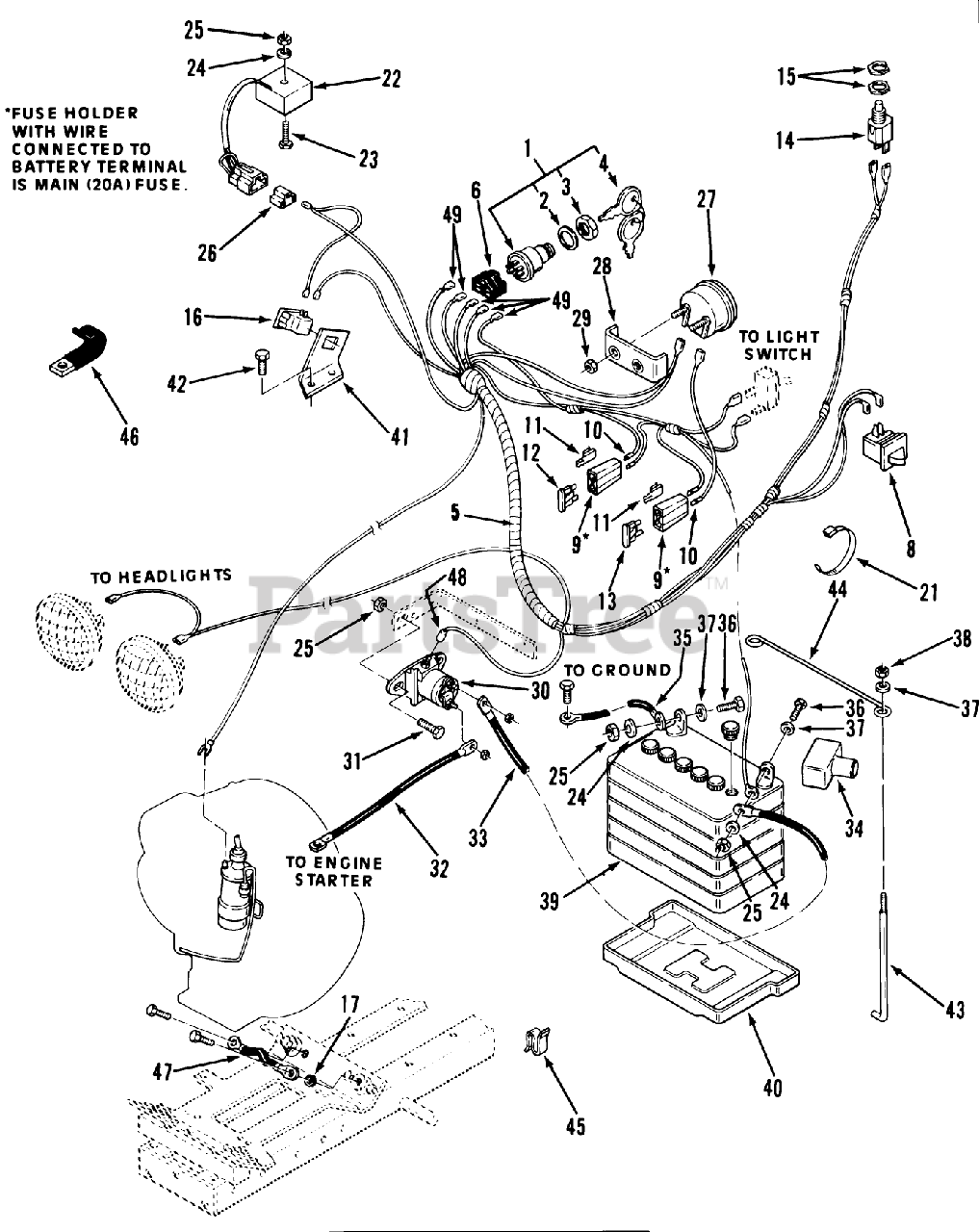

Electrical System-Single Cylinder Models Parts Diagram

  • Title

1

Toro 103990

SWITCH-IGNITION

$29.99

$

In Stock, only 3 left!

0

2

Toro 920160

See Supercession: 9201604
(Superseded to 9201604)

$0.99

$

In Stock, only 2 left!

0

3

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

4

Toro 7262

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

5

Toro 110204

DISCONTINUED

$

$

Not available

6

Toro 105302

See Supercession: 32160-014
(Superseded to 32160-014)

$6.49

$

In Stock, Qty 15

0

8

Toro 103480

DISCONTINUED

$

$

Not available

9

Toro 109117

DISCONTINUED

$

$

Not available

10

Toro 108995

DISCONTINUED

$

$

Not available

11

Toro 109445

CLIP

$8.99

$

Usually ships in 3-6 days

0

12

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

In Stock, only 2 left!

0

13

Toro 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, only 2 left!

0

14

Toro 106268

SWITCH

$36.99

$

Usually ships in 3-6 days

0

15

Toro 8786

NUT-HEX

$

$

Not available

16

Toro 103480

DISCONTINUED

$

$

Not available

17

Toro 920122

DISCONTINUED

$

$

Not available

21

Toro 100571

DISCONTINUED

$

$

Not available

22

Toro 109313

RECTIFIER

$294.99

$

Usually ships in 3-6 days

0

23

Toro 908007

See Supercession: 321-9
(Superseded to 321-9)

$5.49

$

In Stock, Qty 20+

0

24

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

25

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

26

Toro 105306

TERMINAL-TAB RCPT

$4.49

$

Usually ships in 3-6 days

0

27

Toro 102046

DISCONTINUED

$

$

Not available

28

Toro 102047

DISCONTINUED
(Superseded to 109604)

$

$

Not available

29

Toro 5924

HEX NUT 10-32 E.S. + + USE 3296-21 + +

$

$

Not available

30

Toro 109605

See Supercession: 110979
(Superseded to 110979)

$

$

Not available

31

Toro 960152

See Supercession: 3234-33
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 6

0

32

Toro 100335

WIRE-GROUND

$26.99

$

Usually ships in 3-6 days

0

33

Toro 4432

See Supercession: 111074
(Superseded to 111074)

$28.99

$

Usually ships in 3-6 days

0

34

Toro 109553

See Supercession: 28-8080
(Superseded to 28-8080)

$26.99

$

Usually ships in 3-6 days

0

35

Toro 3660

See Supercession: 704057
(Superseded to 704057)

$

$

Not available

36

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

37

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

38

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

39

Toro 105842

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

40

Toro 110298

TRAY BATTERY

$33.99

$

In Stock, only 1 left!

0

41

Toro 109508

BRACKET-SWITCH (NS)

$

$

Not available

42

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

43

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

44

Toro 105504

ROD-HOLD DOWN

$25.99

$

In Stock, only 4 left!

0

45

Toro 3023

DISCONTINUED

$

$

Not available

46

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

47

Toro 100335

WIRE-GROUND

$26.99

$

Usually ships in 3-6 days

0

48

Toro 518246

DISCONTINUED

$

$

Not available

49

Toro 102651

DUP PART SEE $BOOK

$

$

Not available
