12-16BP01 (B-165) - Toro Lawn Tractor (1983) Attachment Lift Parts Diagram

Lawn Tractor

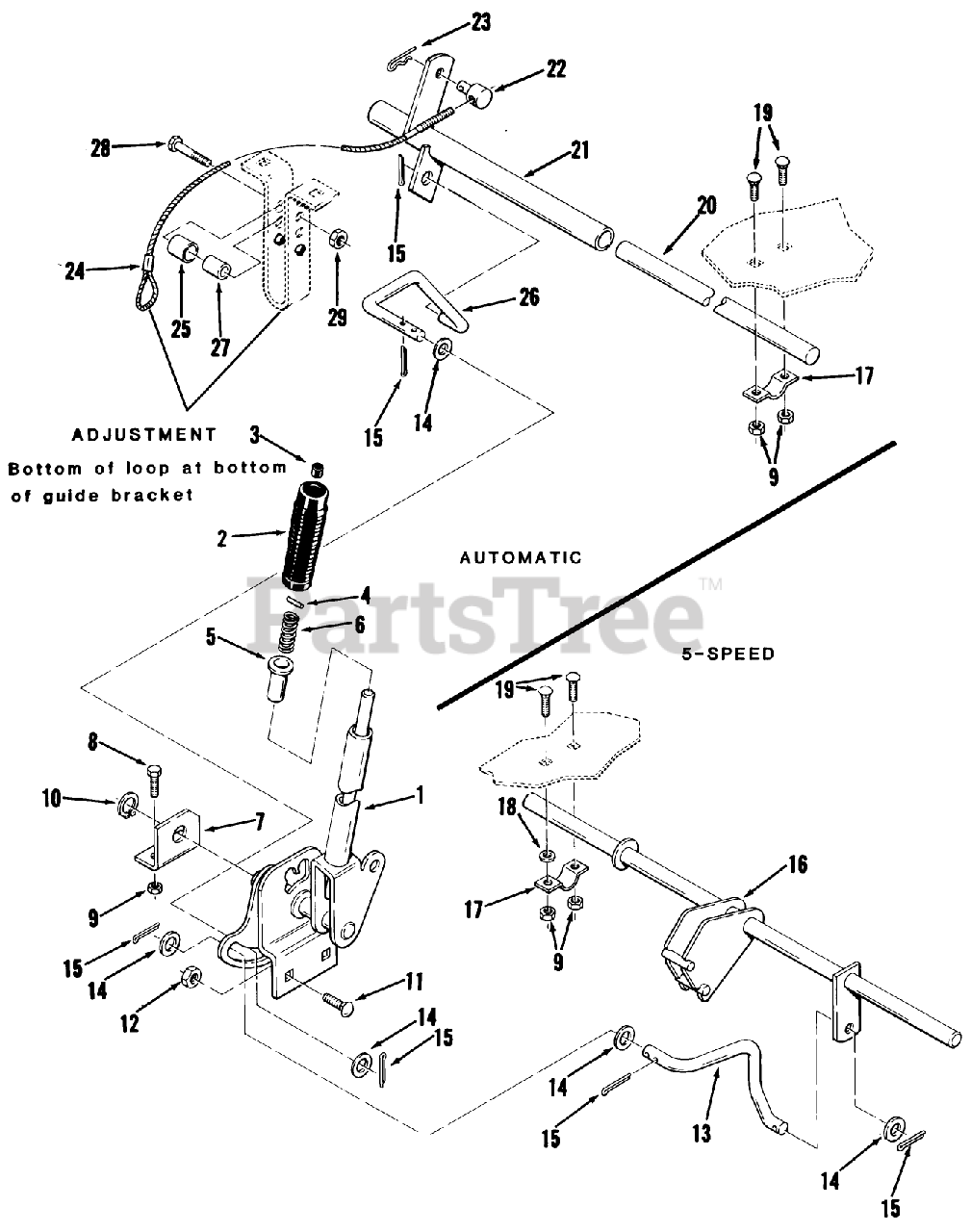

Attachment Lift Parts Diagram

  • Title

1

Toro 109170

DISCONTINUED

$

$

Not available

2

Toro 6542

HANDGRIP

$

$

Not available

3

Toro 105316

CAP-ROD, PLUNGER

$1.99

$

In Stock, Qty 20+

0

4

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 2 left!

0

5

Toro 8130

RETAINER-SPRING

$

$

Not available

6

Toro 3624

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

7

Toro 109177

DISCONTINUED

$

$

Not available

8

Toro 908017

See Supercession: 322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

9

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

10

Toro 104822

See Supercession: 32120-93
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

11

Toro 900062

See Supercession: 3231-1
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

12

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

13

Toro 109336

DISCONTINUED

$

$

Not available

14

Toro 920011

See Supercession: 3256-26
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 19

0

15

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 109333

See Supercession: 109333-01
(Superseded to 109333-01)

$

$

Not available

17

Toro 106288

CLAMP

$

$

Not available

18

Toro 920039

See Supercession: 3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

19

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

20

Toro 109337

Lift Shaft

$

$

Currently unavailable

21

Toro 109416

DISCONTINUED

$

$

Not available

22

Toro 104524

TRUNNION-CLUTCH ROD

$49.99

$

Usually ships in 3-6 days

0

23

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

24

Toro 109609

CABLE ASSY

$

$

Not available

25

Toro 108391

DISCONTINUED

$

$

Not available

26

Toro 109598

DISCONTINUED

$

$

Not available

27

Toro 106615

DISCONTINUED

$

$

Not available

28

Toro 908036

See Supercession: 323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

29

Toro 109779

NUT-HEX, JAM

$

$

Not available
