1305-0 - Generac 4,200 Watt Portable Generator Main Unit Parts Diagram

4,200 Watt Portable Generator

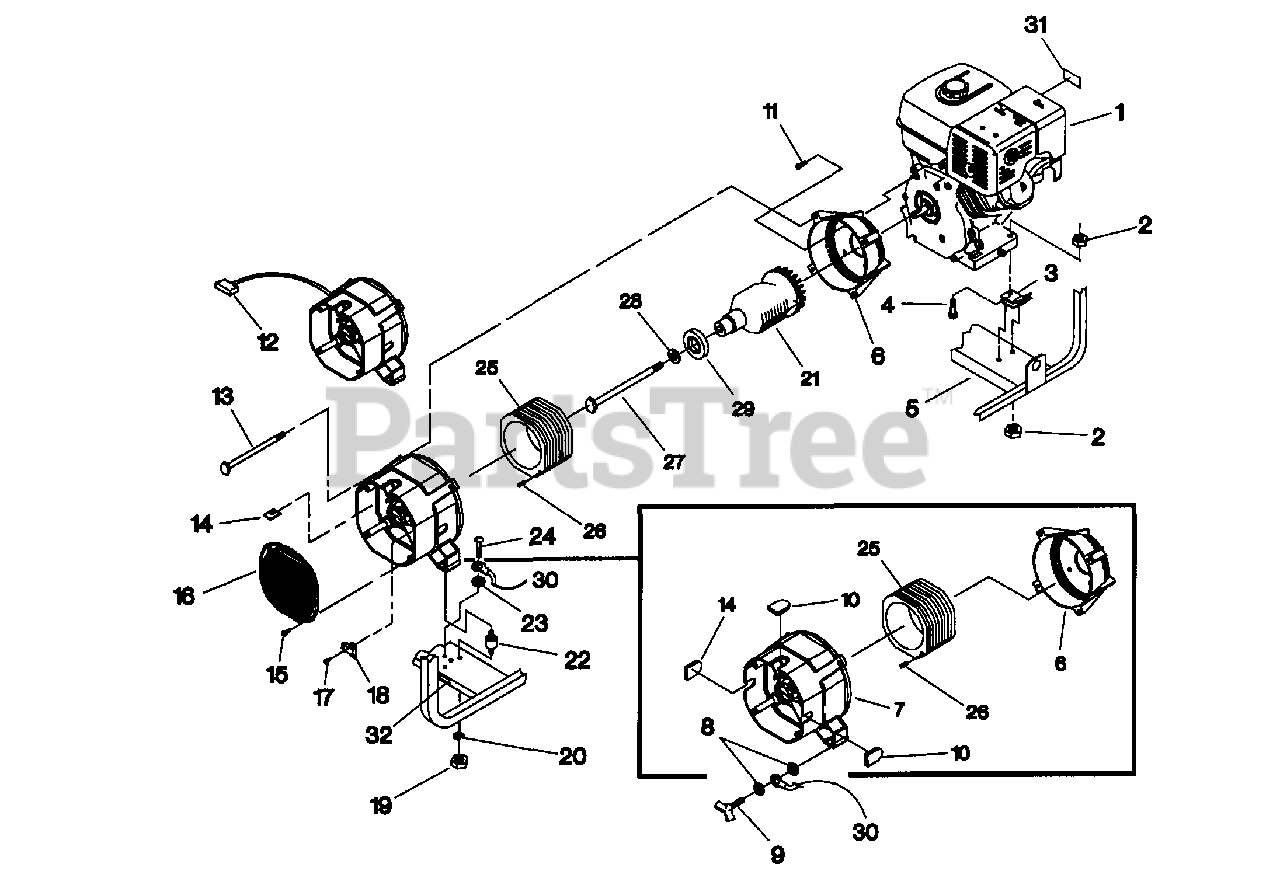

Main Unit Parts Diagram

  • Title
1

NSP

ENGINE, Honda 8 hp

$

$

Not available

2

Briggs & Stratton 52858

NUT, M8-1.25 Flange Lock
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 70642

MOUNT, 45° Vibration
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

4

Briggs & Stratton 76222

SCREW, M8-1.25 x 40mm
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

$

$

Not available

6

Briggs & Stratton 66365G

HOUSING, Adapter
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 66825C

CARRIER, Rear Bearing
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 26850

WASHER, 1/4" Shakeproof

$

$

Not available

9

Briggs & Stratton 86494

SCREW, M6 x 16mm Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 84242

GROMMET, Plastic
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 86307

SCREW, 5/16"-24 x 3/4" SEMS
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22695

CONNECTOR, 6-pin Male
(Superseded to 22695GS)

$6.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 86308C

BOLT, Stator
(Superseded to 86308CGS)

$5.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 67022

GROMMET, Rubber
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 74908

SCREW, M5-0.8 x 10mm
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B4871

COVER, Bearing Carrier
(Superseded to B4871GS)

$9.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 66849

SCREW, M5-0.8 x 15mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 91825

ASSEMBLY, Brush & Bridge Rectifier

$

$

Not available

19

Briggs & Stratton 25244

NUT, 5/16 - 18 Hex
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22129

WASHER, M8 - 5/16 Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 91844J

ASSEMBLY, Rotor
(Superseded to 91844JGS)

$

$

Not available

22

Briggs & Stratton 82857

MOUNT, Rubber
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 22769

WASHER, #10 Shakeproof
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 86292

SCREW, #10 Self-Drilling
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 91859J

ASSEMBLY, Stator
(Superseded to 91859AGS)

$

$

Not available

26

Briggs & Stratton 81917

PIN, M4 x 10mm Roll
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 47480

BOLT, Rotor
(Superseded to 5047480B)

$205.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 96796

WASHER, Special
(Superseded to 96796GS)

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

30

14353621

WIRE, Ground

$

$

Not available

31

Briggs & Stratton B4702

DECAL, Engine Throttle
(Superseded to B4702GS)

$14.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton B4986

DECAL, Ground
(Superseded to B4986GS)

$2.99

$

In Stock, only 1 left!

0
