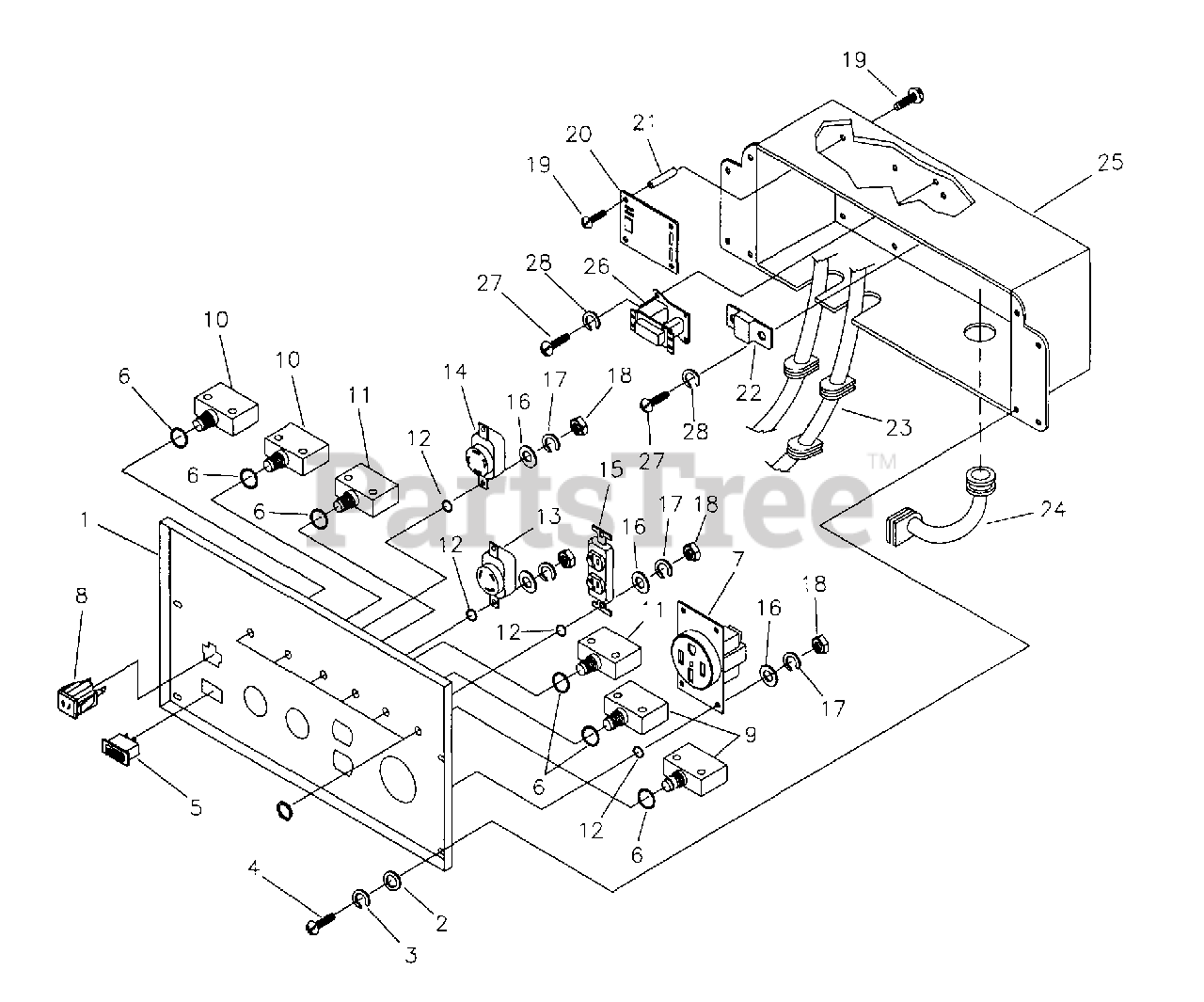

1315-0 - Generac EXL 7,500 Watt Portable Generator Control Panel Parts Diagram

EXL 7,500 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton BB4461

PANEL, Control
(Superseded to BB4461GS)

$102.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 23897

WASHER, #10 M5 Flat
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 49226

WASHER, M5 Lock
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 91526

SCREW, M5-0.8 x 12 mm

$

$

Not available

5

Briggs & Stratton 82538

SWITCH, Idle Control
(Superseded to 82538GS)

$6.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 82881

WASHER, 7/16" Int. Lock
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B4262

OUTLET, 50A, 240V
(Superseded to B4262GS)

$142.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 90418

OUTLET, 10A, 12VDC
(Superseded to 90418GS)

$

$

Not available

9

Briggs & Stratton 75207N

CIRCUIT BREAKER, 35 AMP
(Superseded to 75207NGS)

$10.99

$

Usually ships in 2-12 days

0

10

75207A

CIRCUIT BREAKER, 30 AMP

$

$

Not available

11

Briggs & Stratton 75207

CIRCUIT BREAKER, 20 AMP
(Superseded to 209872GS)

$9.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 23365

WASHER, #8 Shakeproof
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 68868

OUTLET, 30A, 120V Locking
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 43437

OUTLET, 30A, 120V/240V Locking

$

$

Not available

15

Briggs & Stratton 68759

OUTLET, 20A, 120V
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

16

Briggs & Stratton 43180

WASHER, M4 Flat
(Superseded to 5043180B)

$54.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 22264

WASHER, #8 M4 Lock

$

$

Not available

18

Briggs & Stratton 51715

NUT, M4 - 0.7 Hex
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 64526

SCREW, #6-32 x 3/8"

$

$

Not available

20

Briggs & Stratton 83970

BOARD, System Control
(Superseded to 83970GS)

$

$

Not available

21

Briggs & Stratton 64525

3/4" Hex Standoff

$

$

Currently unavailable

22

Briggs & Stratton 87962

CIRCUIT BREAKER, 10A (automatic), 12V
(Superseded to 87962GS)

$29.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84335

ASSEMBLY, Wire Harness
(Superseded to 84335GS)

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84134

GROMMET, Rubber Connector
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B92069

BOX, Control Panel

$

$

Currently unavailable

26

Briggs & Stratton 84028

TRANSFORMER, Idle Control
(Superseded to 84028GS)

$47.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 43181

SCREW, M3 - 0.5 x 10 mm
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 43182

WASHER, M3 Lock
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0
