135O765N013 - MTD Lawn Tractor (1995) (Costco) Hood & Fender Assembly Parts Diagram

Lawn Tractor

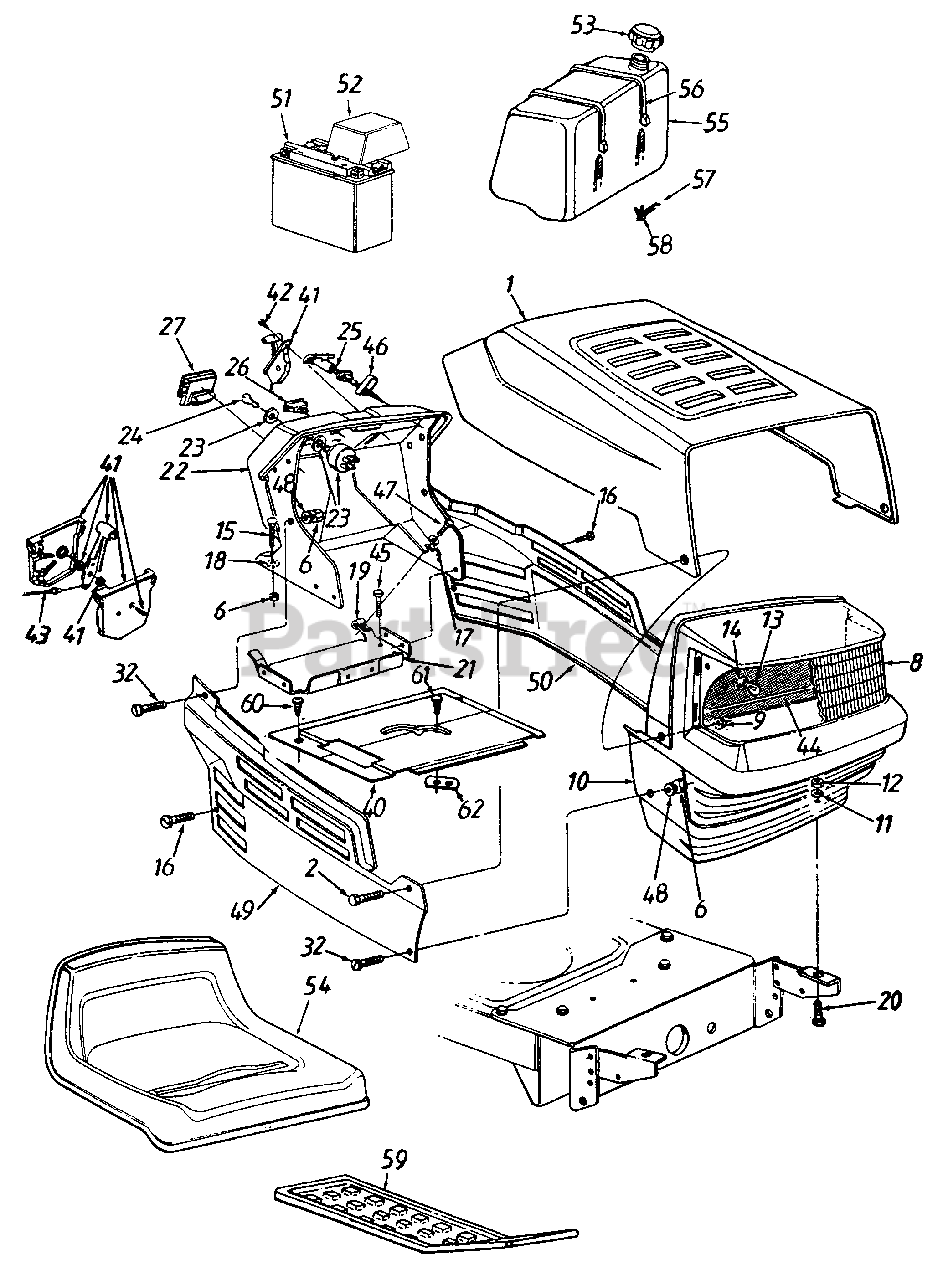

Hood & Fender Assembly Parts Diagram

  • Title

1

MTD 783-0250

Hood

Variations

783-0250-0480

MTD 783-0250-0480

HOOD-O STY LOUVER - BRILLIANT GREEN (0480)

$

$

Not available

783-0250-0667

MTD 783-0250-0667

HOOD-STY O W/LOUVE - MIDNIGHT BLUE (0667)

$

$

Not available

783-0250-0709

MTD 783-0250-0709

HOOD-O STY LOUVER - MASTERCRAFT GREEN (0709)

$

$

Not available

783-0250-0692

MTD 783-0250-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

783-0250-0691

MTD 783-0250-0691

HOOD-STY O W/LOUVE - BLACK JACK (0691)

$

$

Not available

783-0250-0688

MTD 783-0250-0688

No Longer Available HOOD-STY O - SPRING GREEN (0688)

$

$

Not available

783-0250-0687

MTD 783-0250-0687

No Longer Available USE 783-0250A-0687 HOOD-O STY - PINE GREEN (0687)

$

$

Not available

783-0250-0686

MTD 783-0250-0686

No Longer Available HOOD-STY O - SIMPLICITY ORANGE (0686)

$

$

Not available

783-0250-0677

MTD 783-0250-0677

No Longer Available HOOD-O STY - GRASS GREEN (0677)

$

$

Not available

783-0250-0674

MTD 783-0250-0674

HOOD-STY O W/LOUVE - YARDMAN YELLOW (0674)

$

$

Not available

783-0250-0668

MTD 783-0250-0668

No Longer Available HOOD-STY O - MOSS GREEN (0668)

$

$

Not available

783-0250-0665

MTD 783-0250-0665

HOOD-O STY LOUVER - YARDMAN GREEN (0665)

$

$

Not available

783-0250-0483

MTD 783-0250-0483

HOOD-O STY LOUVER - CHARCOAL GRAY (0483)

$

$

Not available

783-0250-0663

MTD 783-0250-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

783-0250-0662

MTD 783-0250-0662

HOOD-O STY LOUVER - OYSTER GRAY (0662)

$

$

Not available

783-0250-0660

MTD 783-0250-0660

No Longer Available HOOD-STY O - TEAL (0660)

$

$

Not available

783-0250-0650

MTD 783-0250-0650

HOOD-O STY LOUVER - RED METALLIC (0650)

$

$

Not available

783-0250-0648

MTD 783-0250-0648

HOOD-S - TECH GRAY (0648)

$

$

Not available

783-0250-0640

MTD 783-0250-0640

HOOD-O STY LOUVER - CO-OP GREEN (0640)

$

$

Not available

783-0250-0638

MTD 783-0250-0638

HOOD-O STY LOUVER - MTD/TROY-BILT RED (0638)

$

$

Not available

783-0250-0629

MTD 783-0250-0629

HOOD-O STY LOUVER - SILVER FLAKE (0629)

$

$

Not available

783-0250-0499

MTD 783-0250-0499

No Longer Available HOOD-STY O - CUB BEIGE (0499)

$

$

Not available

783-0250-0498

MTD 783-0250-0498

HOOD-STY O W/LOUVE - OLD CUB YELLOW (0498)

$

$

Not available

783-0250-0717

MTD 783-0250-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

2

MTD 738-0724

Shld. Bolt .375" Dia. x .125" Lg.
(Superseded to 938-0952A)

$7.49

$

In Stock, only 2 left!

0

?3

MTD 736-0342

Fl-Wash. .28" I.D. x .75" O.D.

$7.99

$

Usually ships in 3-6 days

0

6

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

8

MTD 731-1099A

Headlight Lens
(Superseded to 931-1099A)

$98.99

$

Usually ships in 3-6 days

0

9

MTD 712-0380

Flange L-Nut 1/4-28 Thd.

$3.99

$

Usually ships in 3-6 days

0

10

MTD 731-1097C

Grille
(Superseded to 931-1097G)

Note: New Part

$

$

Not available

11

MTD 736-3078

Fl-Wash. .344" I.D. x 1" O.D.

$4.99

$

In Stock, Qty 5

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

13

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.99

$

In Stock, Qty 20+

0

14

MTD 725-1649

Socket
(Superseded to 925-1649A)

$12.99

$

In Stock, Qty 20+

0

15

MTD 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 12

0

16

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

18

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 17632A

Gas Tank Support Brkt.

Variations

17632A-0637

MTD 17632A-0637

Gas Tank Support Brkt. - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 731-1096B

Dash
(Superseded to 753-04861)

$

$

Not available

23

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$37.99

$

In Stock, Qty 20+

0

24

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.99

$

In Stock, Qty 8

0

25

MTD 746-0616A

Choke Control
(Superseded to 946-0616A)

$28.99

$

In Stock, only 2 left!

0

MTD 746-0614A

Choke Control

$26.99

$

In Stock, Qty 10

0

MTD 746-3021

Choke Control (Vanguard)

$26.99

$

Usually ships in 3-6 days

0

MTD 746-0720

Choke Control 16 H.P. Tec.

$

$

Not available

26

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$18.99

$

In Stock, only 3 left!

0

27

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, only 4 left!

0

32

UNKNOWN

$

$

Not available

40

MTD 783-0212

Shift Cover

Variations

783-0212-0637

MTD 783-0212-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

783-0212-0638

MTD 783-0212-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

41

MTD 831-0823A

Throttle Box Ass'y.

$34.99

$

In Stock, Qty 12

0

42

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.99

$

In Stock, Qty 8

0

43

MTD 746-0501

Throttle Control Wire

$18.99

$

In Stock, Qty 5

0

MTD 746-0634

Throttle Control Wire
(Superseded to 946-0634)

$12.99

$

In Stock, Qty 7

0

44

MTD 777-9206

Grille Reflector Label
(Superseded to 777X40318)

$

$

Not available

45

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$5.49

$

Usually ships in 3-6 days

0

46

MTD 17782

Choke Retainer

$

$

Not available

47

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.99

$

In Stock, Qty 20+

0

48

MTD 736-0270

Bell-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

49

MTD 783-0150A

Side Panel-R.H.

Variations

783-0150A-0480

MTD 783-0150A-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

783-0150A-0665

MTD 783-0150A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

783-0150A-0709

MTD 783-0150A-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

783-0150A-0692

MTD 783-0150A-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

783-0150A-0691

MTD 783-0150A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

783-0150A-0687

MTD 783-0150A-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

783-0150A-0677

MTD 783-0150A-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

783-0150A-0674

MTD 783-0150A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

783-0150A-0667

MTD 783-0150A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

783-0150A-0663

MTD 783-0150A-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

783-0150A-0483

MTD 783-0150A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

783-0150A-0662

MTD 783-0150A-0662

Side Panel - R.H. - OYSTER GRAY (0662)

$

$

Not available

783-0150A-0660

MTD 783-0150A-0660

No Longer Available - TEAL (0660)

$

$

Not available

783-0150A-0650

MTD 783-0150A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

783-0150A-0648

MTD 783-0150A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

783-0150A-0638

MTD 783-0150A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

783-0150A-0637

MTD 783-0150A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

783-0150A-0629

MTD 783-0150A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

783-0150A-0499

MTD 783-0150A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

783-0150A-0717

MTD 783-0150A-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

50

MTD 783-0151

Side Panel-L.H.

Variations

783-0151-0483

MTD 783-0151-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

783-0151-0499

MTD 783-0151-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

783-0151-0629

MTD 783-0151-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

783-0151-0638

MTD 783-0151-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

783-0151-0650

MTD 783-0151-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

783-0151-0662

MTD 783-0151-0662

Side Panel - L.H. - OYSTER GRAY (0662)

$

$

Not available

783-0151-0663

MTD 783-0151-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

783-0151-0665

MTD 783-0151-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

783-0151-0667

MTD 783-0151-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

783-0151-0674

MTD 783-0151-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

783-0151-0677

MTD 783-0151-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

783-0151-0687

MTD 783-0151-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

783-0151-0691

MTD 783-0151-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

783-0151-0692

MTD 783-0151-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

51

MTD 725-1635

Battery
(Superseded to 753-0608)

$

$

Not available

52

MTD 731-1200

Battery Cover

$

$

Not available

53

MTD 751-0603

Fuel Cap
(Superseded to 751-0603B)

$24.99

$

In Stock, Qty 5

0

54

MTD 757-0363

Seat 8-7/8" High
(Superseded to 957-0378)

$

$

Not available

MTD 757-0364

Seat 8-7/8" High (Yellow)
(Superseded to 957-0378)

$

$

Not available

MTD 757-0360

Seat 10-5/8" High
(Superseded to 957-0360A)

$

$

Not available

MTD 757-0365

Seat 10-5/8" High (Yellow)
(Superseded to 957-04011)

$

$

Not available

MTD 757-0350

Seat 14-1/4" High
(Superseded to 957-0350)

$588.99

$

Usually ships in 3-6 days

0

MTD 757-0372

Seat 14-1/4" High (Yellow)
(Superseded to 957-0350)

$588.99

$

Usually ships in 3-6 days

0

55

MTD 751-0553

Fuel Tank (1-1/4 Gal.)
(Superseded to 751-0555B)

$

$

Not available

MTD 751-0555

Fuel Tank (1-1/2 Gal.)
(Superseded to 751-0555D)

$94.99

$

In Stock, only 1 left!

0

MTD 751-0574

Fuel Tank (3 Gal.)

$

$

Not available

56

MTD 726-0209

Tie Strap
(Superseded to 726-0230)

$28.99

$

In Stock, only 1 left!

0

57

MTD 751-0535-15

Fuel Line
(Superseded to 751-10349-16)

$33.99

$

In Stock, Qty 10

0

58

MTD 726-0205

Hose Clamp

$4.49

$

In Stock, Qty 20+

0

59

MTD 731-0909

Rubber Foot Pat - L.H.

Note: Optional Part

$

$

Not available

MTD 731-0910

Rubber Foot Pad - R.H.
(Superseded to 735-0689A)

Note: Optional Part

$

$

Not available

MTD 723-0422

Abrasive Foot Pad
(Superseded to 723-0422C)

Note: Optional Part

$

$

Not available

60

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.99

$

In Stock, Qty 20+

0

61

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

62

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$7.49

$

In Stock, Qty 9

0
