13A-145F063 - Troy-Bilt LTX Lawn Tractor (1998) 14 & 15.5 HP Engine Assembly Parts Diagram

LTX Lawn Tractor

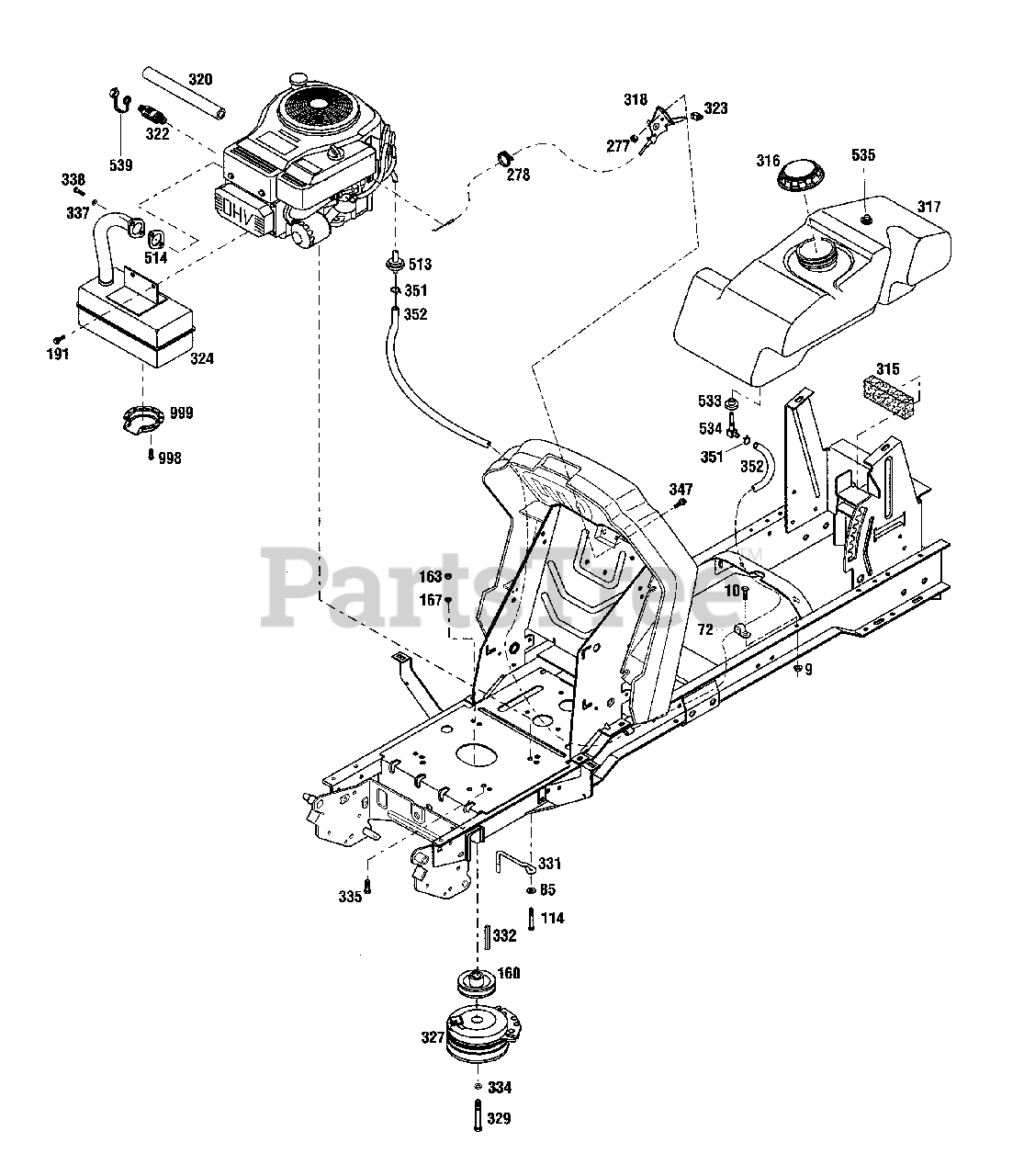

14 & 15.5 HP Engine Assembly Parts Diagram

  • Title

9

Troy-Bilt 1186391

Flange Nut, 5/16-18
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100044

Hex Head Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

72

MTD 1807450

Clip

$

$

Not available

85

Troy-Bilt 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

114

Troy-Bilt 1768194

Hex Head Screw, 3/8-16 x 1-1/2
(Superseded to 710-1007)

$5.99

$

In Stock, Qty 7

0

160

MTD 1772330

Engine Sheave

$

$

Not available

163

Troy-Bilt 1186231

Hex Nut, 3/8-16
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

167

Troy-Bilt 1100243

Lockwasher 3/8
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

191

Troy-Bilt 1754128

Flange Screw, 1/4-20 x 3/4

$3.49

$

In Stock, only 2 left!

0

277

Troy-Bilt 1185985

Keps Locknut, 10-24
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

278

Troy-Bilt 1735531

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

315

MTD 1766341

Fuel Tank Pad

$

$

Not available

316

MTD 1766188

Fuel Cap

$

$

Not available

317

MTD 1772814

Fuel Tank (Incl. Refs. 533, 534 & 535)

$

$

Not available

318

Troy-Bilt 1772884

Throttle Choke Control (NLA)

$

$

Currently unavailable

320

Troy-Bilt 1769006

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 20+

0

322

Troy-Bilt 1768865

Oil Valve Assembly (Incl. Ref. 539)
(Superseded to 951-10517A)

$22.99

$

In Stock, Qty 20+

0

323

MTD 1766121

Control Knob

$

$

Not available

324

MTD 1772810

Muffler (Single Inlet)

$

$

Not available

327

Troy-Bilt 1772388

Electric Clutch
(Superseded to 917-1459)

$508.99

$

Usually ships in 3-6 days

0

329

Troy-Bilt 1744454

Hex Head Screw, 7/16-20 x 3-1/4
(Superseded to 710-0510)

$10.99

$

In Stock, only 1 left!

0

331

MTD 1772385

Clutch Retainer

$

$

Not available

332

Troy-Bilt 1104337

Square Key, 1/4 x 1-1/2
(Superseded to 714-0118)

$6.49

$

Usually ships in 3-6 days

0

334

Troy-Bilt 1100244

Spring Lock Washer, 7/16
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 20+

0

335

MTD 1762042

Hex Head Screw, 3/8-16 x 1

$

$

Not available

337

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

338

Troy-Bilt 710-1314

Socket Cap Screw, 5/16-18 x 5/8
(Superseded to 710-1314A)

$4.49

$

In Stock, Qty 20+

0

347

MTD 1773576

Machine Screw, 10-24 x 3/4

$

$

Not available

351

Troy-Bilt 1750687

Hose Clamp
(Superseded to 726-0205)

$3.99

$

In Stock, Qty 20+

0

352

MTD 1767879

Fuel Line

$

$

Not available

513

Troy-Bilt 1727491

Fuel Filter
(Superseded to BS-298090S)

$5.49

$

In Stock, Qty 20+

0

514

Troy-Bilt 721-0208

Exhaust Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

533

Troy-Bilt 1738433

Bushing
(Superseded to 935-0149)

$7.99

$

In Stock, Qty 20+

0

534

Troy-Bilt 1751477

Fuel Tank Elbow
(Superseded to 951-0171)

$19.99

$

In Stock, only 2 left!

0

535

Troy-Bilt 1768804

Fuel Tank Vent
(Superseded to 737-0296)

$11.99

$

Usually ships in 3-6 days

0

539

MTD 1766326

Oil Drain Cap

$

$

Not available

998

Troy-Bilt 710-0148

Self Tapping Screw, #8-32 x 3/8

$3.99

$

In Stock, Qty 16

0

999

Troy-Bilt 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$12.99

$

In Stock, Qty 20+

0
