140 (31B-140-000) - White Outdoor Snow Thrower (2002)

Snow Thrower

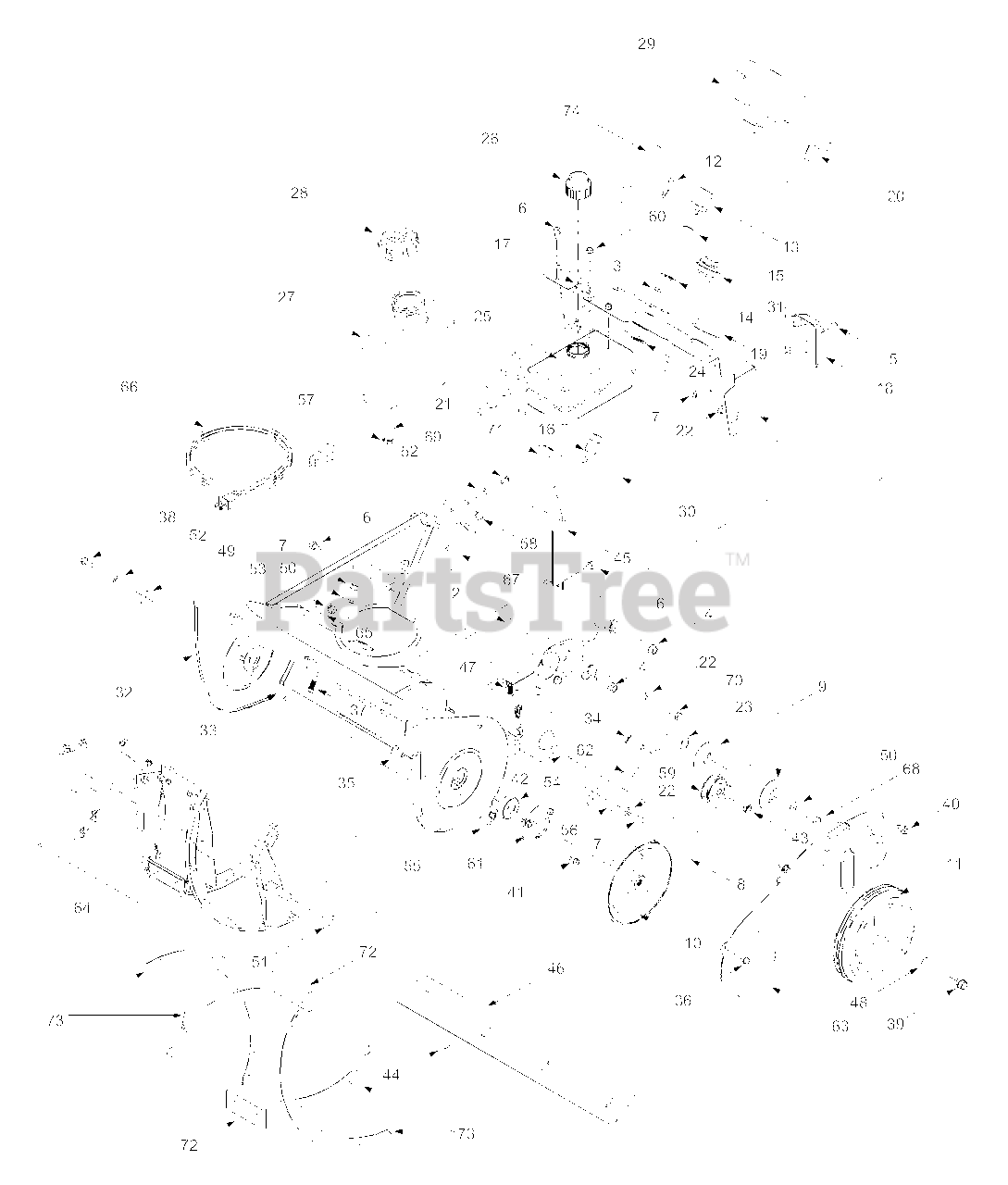

140 (31B-140-000) - White Outdoor Snow Thrower (2002) > Parts Diagrams (2) > Handle Assembly (Part 2)

  • Title
684-0056

1

Dash Assembly

Part# 684-0056

Note: *CHOOSE COLOR WHEN ORDERING*

OEM Warranty Repair Part for MTD

Variations

OLD CUB YELLOW (0498)

No Longer Available PANEL-DASH

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

SILVER FLAKE (0629)

PANEL-DASH

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for MTD

Not available

POWDER BLACK (0637)

PANEL-DASH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

No Longer Available PANEL-DASH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

Dash-21"

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

950-0589

2

Spacer, .325 x .625 x .88

Part# 950-0589

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

710-04669

3

Screw, #10-16 x .625

Part# 710-04669

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.39

710-1090

4

Hex Flange Screw, 5/16-18 x 1.25

Part# 710-1090

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.53

710-1268

5

Screw, #10-16 x .375

Part# 710-1268

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

710-1652

6

Self-tapping Screw, 1/4-20 x .625

Part# 710-1652

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

912-3010

7

Hex Nut, 5/16-18

Part# 912-3010

OEM Warranty Repair Part for MTD

Not available

954-0367

8

Drive Belt

Part# 954-0367

Note: Model 140

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $26.82

956-0416B

9

Pulley Half-.625 x 2.25

Part# 956-0416B

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.66

756-0475

10

Auger Drive Pulley

Part# 756-0475

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $56.29

734-1176

11

Wheel Assembly, 7 x 1.5

Part# 734-1176

Note: NLA

OEM Warranty Repair Part for MTD

Not available

925-0201

12

Ignition Key

Part# 925-0201

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.91

725-1341B

13

Ignition Key w/ Plastic Cover

Part# 725-1341B

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.40

712-0252

14

Jam Nut, 5/8-32

Part# 712-0252

Note: Model 140, 150, E150

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.13

725-1347

15

Ignition Switch Cap

Part# 725-1347

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.36

925-1425

16

Ignition Switch

Part# 925-1425

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $25.27

784-5178A

17

Chute Crank Bracket

Part# 784-5178A

Note: Model 140

OEM Warranty Repair Part for MTD

Not available

731-1089A

18

Choke Cover

Part# 731-1089A

OEM Warranty Repair Part for MTD

Not available

731-1133C

19

Spark Plug Cap

Part# 731-1133C

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.31

7510009630

20

Recoil Handle

Part# 7510009630

Note: NLA - (Standard)

OEM Warranty Repair Part for MTD

Not available

751-10349

21

Fuel Line Hose

Part# 751-10349

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.13

936-0119

22

Lock Washer, 5/16

Part# 936-0119

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.41

750-0716

23

Spacer, .630 x .88 x .680

Part# 750-0716 (Superseded to 750-0716A)

OEM Warranty Repair Part for MTD

Not available

736-0225

24

Internal Lock Washer, 5/8 x 1.058 x .046

Part# 736-0225

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

751-0352

25

Gas Tank, 1 qt

Part# 751-0352 (Superseded to TC-32660A)

Note: Model 140

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $56.18

TC-410240

26

Fuel Cap

Part# TC-410240

Note: For 751-0352

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 8 to 14 business days

Your price: $7.32

27

Gas Tank, 2 qt.

Part#

Note: Model 150, E150, E162, E172; Not used

Not available

28

Fuel Cap

Part#

Note: For 751-0540A (50:1 Red Print); Not used

Not available

7510009636

29

Recoil Handle (Mitten Grip)

Part# 7510009636

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $13.57

TC-32180C

30

Primer Tube

Part# TC-32180C

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.33

TC-570682A

31

Primer Bulb

Part# TC-570682A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $11.88

684-0114B

32

Auger Housing Assembly

Part# 684-0114B

Note: *CHOOSE COLOR WHEN ORDERING*

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

No Longer Available HSG ASM-AU

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

OLD CUB YELLOW (0498)

No Longer Available HOUSING AS

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

SILVER FLAKE (0629)

No Longer Available HSG ASM-AU

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

No Longer Available HSG ASM-AU

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

RED METALLIC (0650)

No Longer Available HSG ASM-AU

Part# RED METALLIC (0650)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

No Longer Available HSG ASM-AU

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

No Longer Available HSG ASM-AU

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

ZINC YELLOW (0684)

No Longer Available HSG ASM-AU

Part# ZINC YELLOW (0684)

OEM Warranty Repair Part for MTD

Not available

PINE GREEN (0687)

No Longer Available HSG ASM-AU

Part# PINE GREEN (0687)

OEM Warranty Repair Part for MTD

Not available

BLACK JACK (0691)

No Longer Available HSG ASM-AU

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Not available

MASTERCRAFT GREEN (0709)

No Longer Available HSG ASM-AU

Part# MASTERCRAFT GREEN (0709)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

No Longer Available

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Not available

710-0167

33

Screw, 1/4-20 x .50

Part# 710-0167

OEM Warranty Repair Part for MTD

Not available

710-0191

34

Cap Screw, 3/8-24 x 1.25

Part# 710-0191

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.23

710-0323

35

Trus Machine Screw, 5/16-18 x .75

Part# 710-0323

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.23

710-0352

36

Hex Index Washer Screw, 1/4-14 x .375

Part# 710-0352

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.24

710-0451

37

Carriage Bolt, 5/16-18 x .75

Part# 710-0451

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.84

710-0642

38

Self-tapping Screw 1/4-20 x .75

Part# 710-0642

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.21

710-0773

39

Self-tapping Screw 3/8-16 x .50

Part# 710-0773

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.00

710-0896

40

Self-tapping Screw, 1/4-14 x .625

Part# 710-0896

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-0599

41

Self-tapping Screw, 1/4-14 x .50

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

753-05480

42

Axle, .35 x .5 x 20.75

Part# 753-05480

OEM Warranty Repair Part for MTD

Not available

912-0116

43

Jam Lock Nut, 3/8-24

Part# 912-0116

OEM Warranty Repair Part for MTD

Not available

912-3027

44

Hex Flange Lock Nut, 1/4-20

Part# 912-3027

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.05

784-5177

45

Engine Support Bracket

Part# 784-5177

Note: NLA - Model 140

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available BRACKET-EN

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

731-1033

46

Shave Plate, 2.66 x 19.88

Part# 731-1033

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $34.76

932-0357A

47

Extension Spring, .33 x 1.12

Part# 932-0357A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.16

936-0108

48

Flat Washer, .51 x .75 x .033

Part# 936-0108

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.87

936-0176

49

Flat Washer, .265 x .938 x .120

Part# 936-0176

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0242

50

Belleville Washer, .340 x .872

Part# 736-0242

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

936-0326

51

Flat Washer, .51 x 1.0 x .125

Part# 936-0326

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

936-0329

52

Lock Washer, 1/4

Part# 936-0329

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

941-0475

53

Plastic Bushing

Part# 941-0475

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.96

941-0600

54

Ball Bearing, 17mm x 40mm x 12mm

Part# 941-0600

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $18.53

946-0910A

55

Cable, 41.78"

Part# 946-0910A

Note: (Includes end spring)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $20.77

748-0234

56

Shoulder Spacer

Part# 748-0234

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.10

726-0205

57

Hose Clamp, .49

Part# 726-0205

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.95

941-0475

58

Plastic Bushing, .38

Part# 941-0475

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.96

756-0313

59

Flat Idler Pulley, 1.88 x .50 x 2.12

Part# 756-0313

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $19.43

710-0895

60

Hi-Lo Self-tapping Screw, 1/4-15 x .75

Part# 710-0895

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.63

784-5174-0637

61

Bearing Cup

Part# 784-5174-0637

OEM Warranty Repair Part for MTD

Not available

753-05156

62

Brake Idler Bracket

Part# 753-05156

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $40.69

784-5176

63

Belt Cover

Part# 784-5176

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $40.87

Variations

CHARCOAL GRAY (0483)

Belt Cover, Black

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $40.87

OLD CUB YELLOW (0498)

USE 790-00045A COVER-BELT

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

SILVER FLAKE (0629)

Belt Cover, Black

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $40.87

POWDER BLACK (0637)

Belt Cover, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $40.87

MTD/TROY-BILT RED (0638)

Belt Cover, Red

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

RED METALLIC (0650)

COVER-BELT

Part# RED METALLIC (0650)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

COVER-BELT

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

COVER-BELT SINGLE

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

YARDMAN YELLOW (0674)

COVER-BELT

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for MTD

Not available

BLACK JACK (0691)

COVER-BELT SINGLE

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

Belt Cover, Black

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $40.87

984-04027A

64

Solid Shaft Auger Assembly

Part# 984-04027A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $141.11

784-5720-0637

65

Chute Crank Bracket

Part# 784-5720-0637

OEM Warranty Repair Part for MTD

Not available

629-0236

66

110V Extension Cord, 2-prong

Part# 629-0236

OEM Warranty Repair Part for MTD

Not available

67

Fuel Tank Support Bracket

Part#

Note: Model 150, E150, E162 & E172; Not used

Not available

710-0157

68

Hex Cap Screw, 5/16-24 x .75

Part# 710-0157

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

710-3013

69

Hex Cap Screw, 1/4-20 x .50

Part# 710-3013

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.23

70

Hex Cap Screw, 5/16-24 x .625

Part#

Note: Model 150, E150, E162, E172; Not used

Not available

710-0805

70

Hex Cap Screw, 5/16-18 x 1.50

Part# 710-0805 (Superseded to 710-0805A)

Note: Model 140

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

726-0152

71

Self-adhesive Clamp, .5

Part# 726-0152

Note: NLA - (For starter cable)

OEM Warranty Repair Part for MTD

Not available

931-0782A

72

Rubber Paddle

Part# 931-0782A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.87

931-0780A

73

Rubber Paddle/Spiral

Part# 931-0780A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $19.50

784-5344

74

Chute Crank Assembly

Part# 784-5344

Note: Model 140

OEM Warranty Repair Part for MTD

Not available

OEM-390-697

Electric Start Kit

Part# OEM-390-697

Note: NLA

OEM Warranty Repair Part for MTD

Currently unavailable

OEM-737-0325S

MTD Two-Cycle Snow Thrower Oil

Part# OEM-737-0325S (Superseded to OL-250)

Note: (Contains six 2.6 oz. bottles); Accessories & Kits; Not Shown

OEM Warranty Repair Part for MTD

Not available

753-0451

Shave Plate

Part# 753-0451

Note: (Includes replacement shave plate and hardware); Accessories & Kits; Not Shown

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $48.53

753-0613

Auger Rubber Paddle Kit

Part# 753-0613

Note: (Includes replacement rubber paddles and hardware); Accessories & Kits; Not Shown

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $95.89
