150Z (ESC 20420) (2690716) - Snapper 42" Zero-Turn Mower, 20hp Wheel & Tire Group Parts Diagram

42" Zero-Turn Mower, 20hp

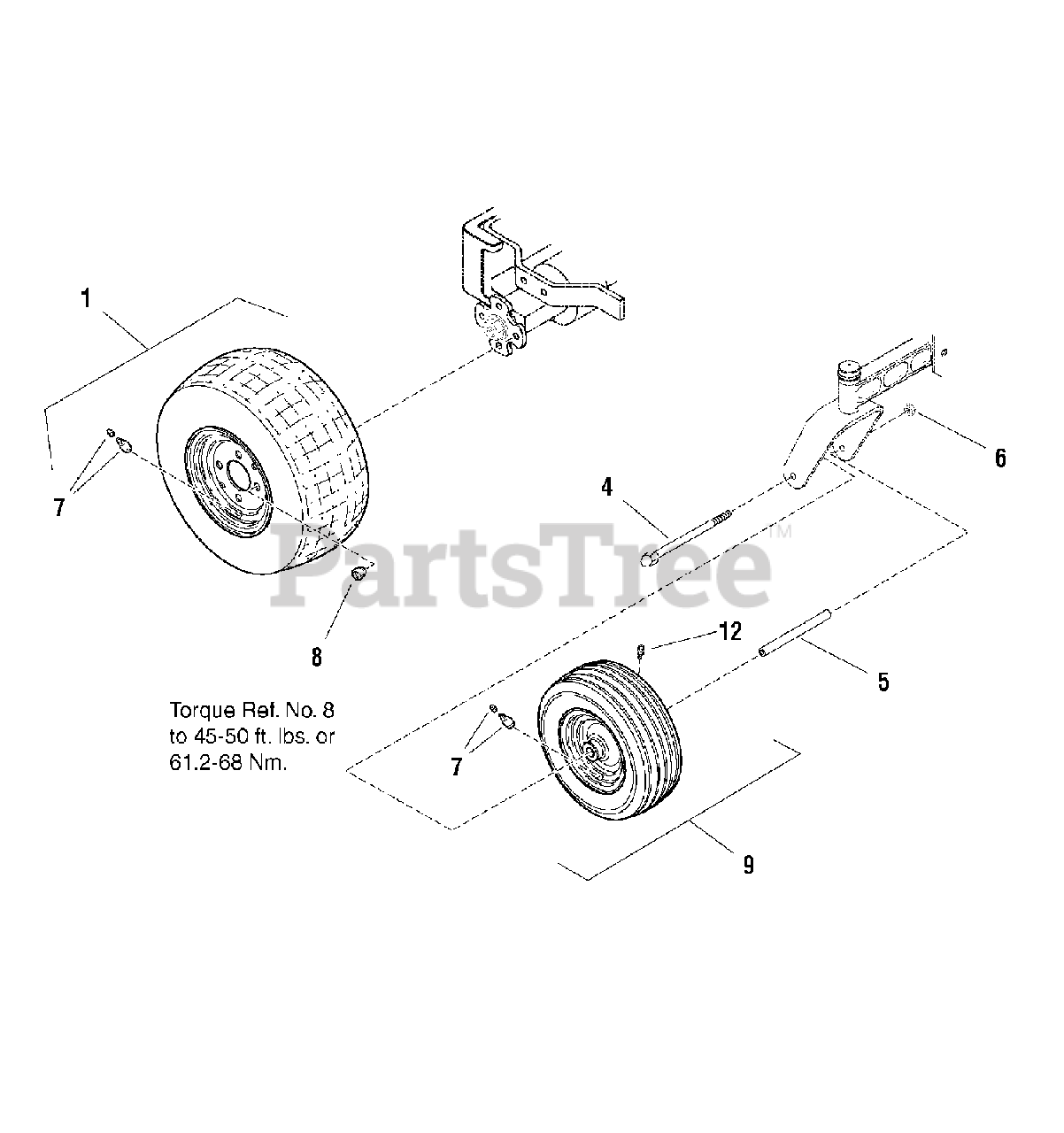

Wheel & Tire Group Parts Diagram

  • Title

1

Snapper 1726383SM

WHEEL & TIRE ASSEMBLY, 18 x 8.50 - 8, Turf 4 Ply, K500

Note: (Includes Ref. Nos. 2, 3 & 7)

$256.99

$

Usually ships in 2-12 days

0

2

Snapper 1734878SM

WHEEL, 5.375 W, 7.968 DIA, 2.510 ID SILVER (Not Shown Separatly)
(Superseded to 1726383SM)

$256.99

$

Usually ships in 2-12 days

0

3

Snapper 1734877SM

TIRE, 18 x 8.50 - 8 (Not Shown Separatly)

$107.99

$

Usually ships in 2-12 days

0

4

Snapper 7091772SM

CAPSCREW, 7/16C X 6, GR5, Hex Head, YZ

$8.49

$

In Stock, Qty 10

0

5

Snapper 7035359SM

TUBE, .625 OD, 4.53 LG, .625 OD, Caster Wheel Spacer
(Superseded to 1734841SM)

$12.99

$

In Stock, Qty 13

0

6

Snapper 7090839SM

NUT, 7/16C GR5 Hex Center Lock ZP

$4.99

$

In Stock, Qty 10

0

7

Snapper 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

8

Snapper 2177725SM

NUT, 7/16-20, Hex Lug

$6.49

$

In Stock, only 3 left!

0

9

Snapper 1734013SM

WHEEL & TIRE ASSEMBLY, 11 x 4.0 - 5

Note: (Includes Ref. Nos. 7, 12 & Two Bushings #1739281)

$110.99

$

In Stock, Qty 13

0

10

Snapper 1734876SM

WHEEL, 11 x 4.0 - 5 (Not Shown Separatly)

$73.99

$

In Stock, only 1 left!

0

11

Snapper 1734875SM

TIRE, 11 x 4.0 - 5 (Not Shown Separatly)

$76.99

$

Usually ships in 2-12 days

0

12

Snapper 2812808

FITTING, .250-28, Lube, Taper Thread, Straight, Ball Check
(Superseded to 2812808SM)

Note: (Was 7104428)

$4.49

$

In Stock, only 2 left!

0
