150Z (EZT 18542 BVE) (2690621) - Snapper 42" Zero-Turn Mower, 18.5hp Frame, Body & Seat Group Parts Diagram

42" Zero-Turn Mower, 18.5hp

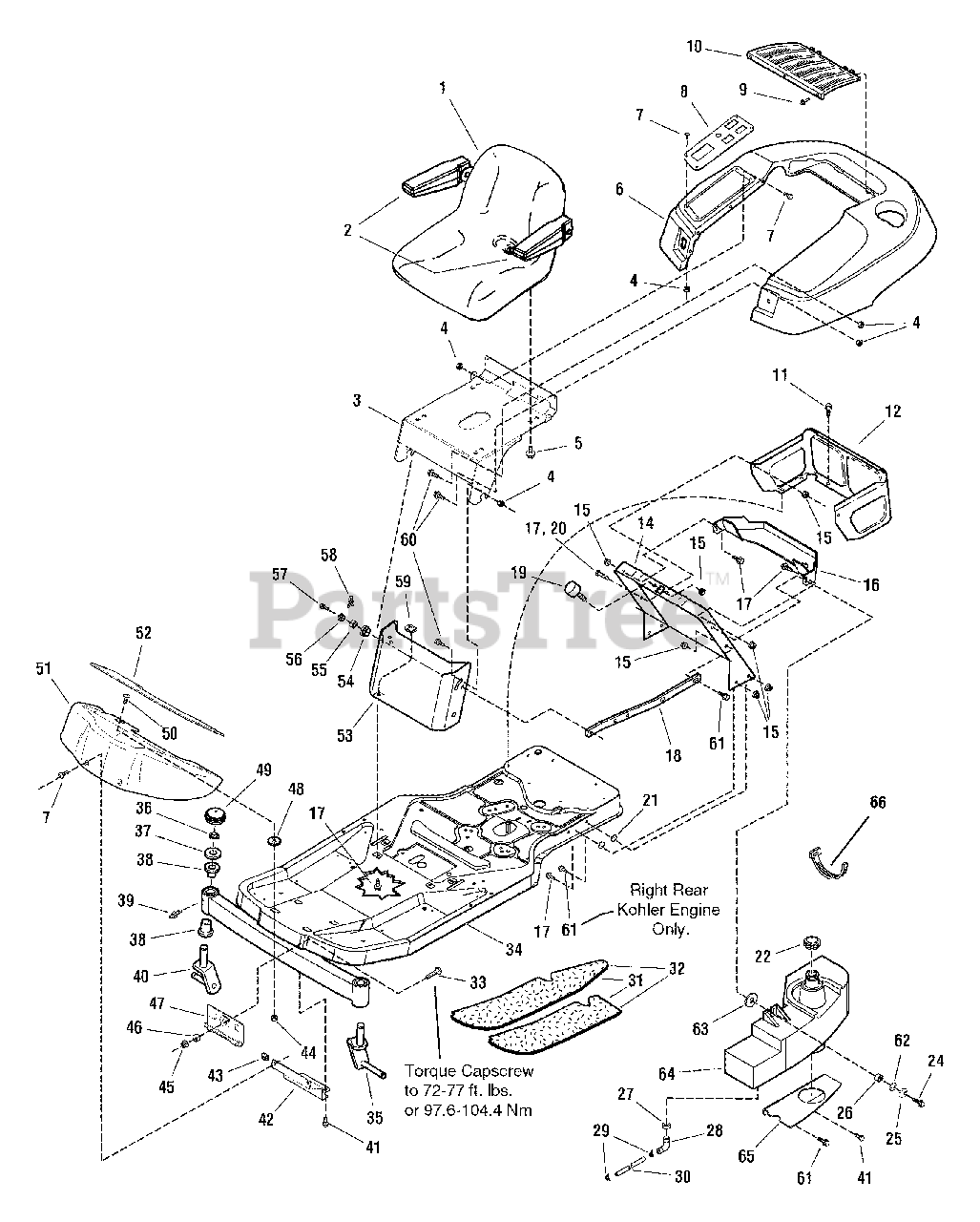

Frame, Body & Seat Group Parts Diagram

  • Title

1

Snapper 1726018SM

SEAT ASSEMBLY, with Arm Rests

Note: (Includes Ref. No. 2)

$744.99

$

In Stock, only 1 left!

0

2

Snapper 1687021SM

ARM REST KIT, (L.H. & R.H.)

$240.99

$

Usually ships in 2-12 days

0

3

Snapper 1727332ASM

SUPPORT, Seat

$99.99

$

Usually ships in 2-12 days

0

4

Snapper 1960694SM

NUT, Hex Flange ESNA, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 5

0

5

Snapper 1960738SM

CAPSCREW, Hex Head Whiz Lock Dog Point, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 20+

0

6

Snapper 1726648SM

DECK, Seat
(Superseded to 1734143SM)

$

$

Not available

7

Snapper 1960715SM

SCREW, Truss Head Torx Drive, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 14

0

8

Snapper 1727699ASM

PLATE, Pod Control

$21.99

$

Usually ships in 2-12 days

0

9

Snapper 1673320SM

RIVET, Pop

$4.49

$

In Stock, Qty 8

0

10

Snapper 1708504SM

SCREEN, Seat Deck
(Superseded to 7102141SM)

$42.99

$

In Stock, only 1 left!

0

11

Snapper 1925003SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

12

Snapper 1715962ASM

SHROUD, Rear
(Superseded to 7301146AYP)

$68.99

$

Usually ships in 2-12 days

0

14

Snapper 1732974ASM

SUPPORT, Seat Deck

$168.99

$

Usually ships in 2-12 days

0

15

Snapper 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

16

Snapper 1734180A

DUCT, Air Inlet
(Superseded to 1734180ASM)

$69.99

$

Usually ships in 2-12 days

0

17

Snapper 1930591SM

CAPSCREW, Hex Head Whix Lock, 5/16-18 x 3/4, G5
(Superseded to 703354)

$5.49

$

In Stock, Qty 20+

0

18

Snapper 1727810ASM

BRACE, Tank

$17.99

$

Usually ships in 2-12 days

0

19

Snapper 1726390SM

BUMPER, Rubber

$9.99

$

Usually ships in 2-12 days

0

20

Snapper 1933689SM

CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 1-1/2, G5

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 1933988SM

NUT, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 1714020SM

CAP, Fuel Tank

$31.99

$

In Stock, Qty 5

0

24

Snapper 1930600SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 20+

0

25

Snapper 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, Qty 13

0

26

Snapper 1710437SM

SPACER

$18.99

$

Usually ships in 2-12 days

0

27

Snapper 1726400SM

BUSHING, Fuel Tank
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

28

Snapper 1674792SM

ELBOW, with Screen, Gas Tank to Fuel Line

$15.99

$

In Stock, only 3 left!

0

29

Snapper 2860112SM

CLAMP, Hose, Wire Type E

$3.99

$

Usually ships in 2-12 days

0

30

Snapper 1733008SM

HOSE, Fuel 8.5" Long

$

$

Not available

31

Snapper 1728986SM

PAD, Footrest, R.H.

$10.99

$

Usually ships in 2-12 days

0

32

Snapper 1728987SM

PAD, Footrest, L.H.

$10.99

$

In Stock, only 1 left!

0

33

Snapper 1920328SM

CAPSCREW, Hex, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 1 left!

0

34

Snapper 1734006A

FRAME & SPINDLES ASSEMBLY
(Superseded to 1734006ASM)

Note: (Includes Ref. Nos. 35, 36, 37, 38, 39 & 40)

$1481.99

$

Usually ships in 2-12 days

0

35

Snapper 1716065SM

ARM, Caster, L.H.
(Superseded to 1726377ASM)

$114.99

$

Usually ships in 2-12 days

0

36

Snapper 2834712SM

RING, E-Retaining

$4.99

$

In Stock, Qty 11

0

37

Snapper 1919394SM

WASHER
(Superseded to 703149)

$3.49

$

In Stock, only 4 left!

0

38

Snapper 1721682SM

BUSHING

$5.49

$

In Stock, Qty 20+

0

39

Snapper 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

40

Snapper 1716066SM

ARM, Caster, R.H.
(Superseded to 1726378ASM)

$119.99

$

Usually ships in 2-12 days

0

41

Snapper 1664847SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

42

Snapper 1726024ASM

BRACKET, Footrest Support

$28.99

$

Usually ships in 2-12 days

0

43

Snapper 1960368SM

NUT, Speed Lug Type, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, only 4 left!

0

44

Snapper 1930641SM

NUT, Hex Flange Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

45

Snapper 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, only 1 left!

0

46

Snapper 1709235SM

SPACER

$9.99

$

In Stock, only 1 left!

0

47

Snapper 1716064ASM

HOOK & WASHER ASSEMBLY

$21.99

$

Usually ships in 2-12 days

0

48

Snapper 1960518SM

NUT, Push, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 16

0

49

Snapper 1726504SM

CAP, Hub

$4.99

$

Usually ships in 2-12 days

0

50

Snapper 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, Qty 5

0

51

Snapper 1726025CSM

PANEL, Footrest

$159.99

$

Usually ships in 2-12 days

0

52

Snapper 1726306SM

PAD, Footrest, Front

$119.99

$

Usually ships in 2-12 days

0

53

Snapper 1727685ASM

PANEL, Front

$42.99

$

Usually ships in 2-12 days

0

54

Snapper 1704626SM

SPACER

$6.99

$

In Stock, Qty 11

0

55

Snapper 1705249SM

SPACER

$2.99

$

Usually ships in 2-12 days

0

56

Snapper 1705248SM

PIVOT, Hood

$26.99

$

In Stock, only 3 left!

0

57

Snapper 1704628SM

PIN, Quick

$4.49

$

In Stock, Qty 7

0

58

Snapper 1960373SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

59

Snapper 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, Qty 7

0

60

Snapper 1960295SM

SCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 3 left!

0

61

Snapper 1930595SM

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 1-1/4, G5

$3.99

$

In Stock, Qty 8

0

62

Snapper 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

63

Snapper 1960071SM

WASHER, 3/8 x 1-1/4 x 1/4

$8.49

$

In Stock, only 2 left!

0

64

Snapper 1726635SM

TANK, Fuel

$112.99

$

Usually ships in 2-12 days

0

65

Snapper 1732975ASM

BRACKET, Fuel Tank

$21.99

$

Usually ships in 2-12 days

0

66

Snapper 1701011SM

TIE, Self-Locking

$5.49

$

In Stock, only 2 left!

0
