1690271 - Simplicity 42" Mower Deck 42" Cover, Drive & Bail Group Parts Diagram

42" Mower Deck

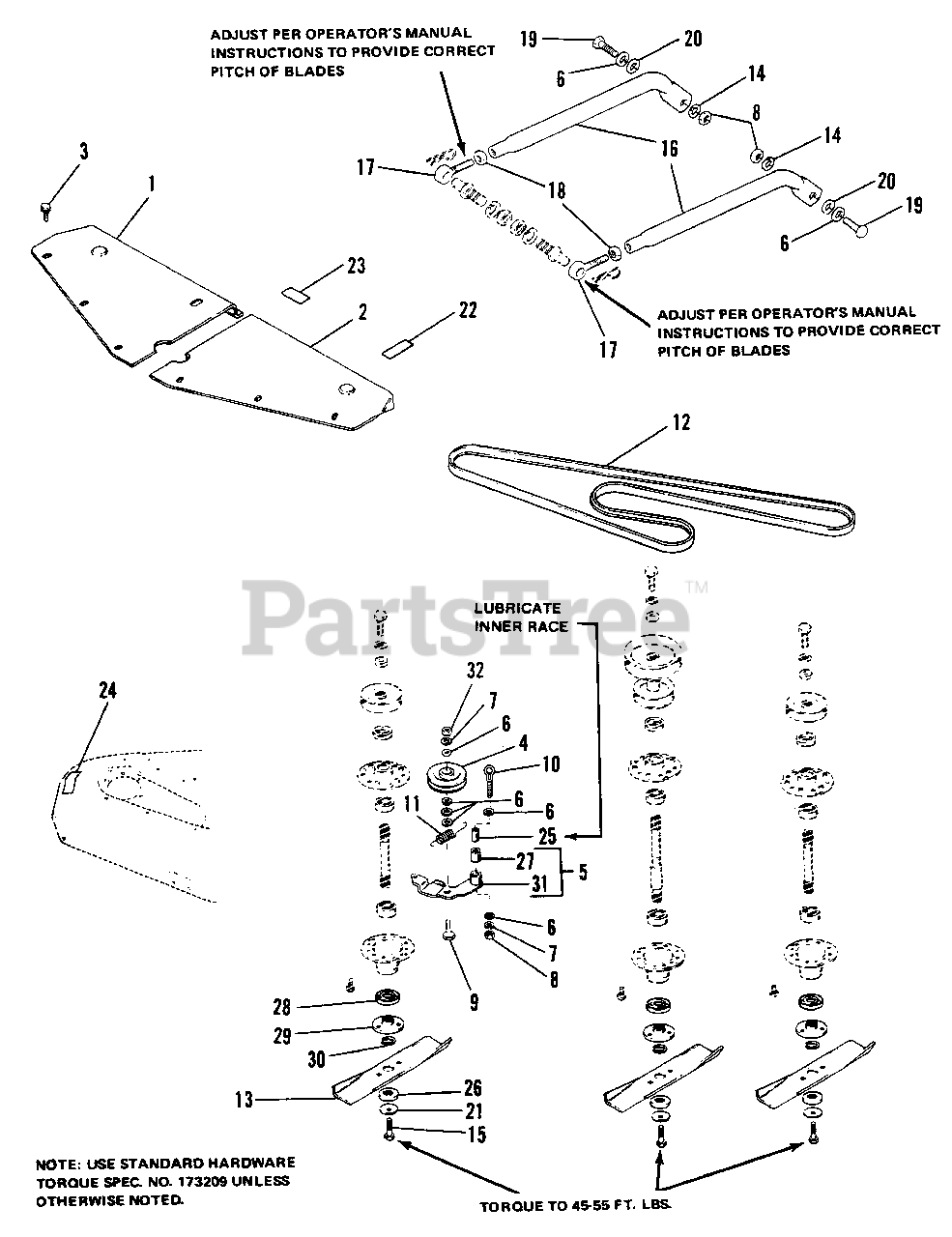

42" Cover, Drive & Bail Group Parts Diagram

  • Title

1

Simplicity 1676096SM

COVER, R.H.
(Superseded to 1676096CSM)

$92.99

$

Usually ships in 2-12 days

0

2

Simplicity 1676095

COVER, L.H.
(Superseded to 1676095CSM)

$

$

Not available

3

Simplicity 2829000

SCREW, Hex, Taptite, 1/4-20 x 3/8

$

$

Not available

4

Simplicity 2164268

PULLEY, Idler

$

$

Not available

5

Simplicity 1685415SM

LEVER ASSY, Idler (w/Bushings)
(Superseded to 1685415YP)

$70.99

$

Usually ships in 2-12 days

0

6

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

7

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

8

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, only 1 left!

0

9

Simplicity 2108418

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4

$

$

Not available

10

Simplicity 2171815SM

EYEBOLT

$76.99

$

In Stock, only 4 left!

0

11

Simplicity 1656936SM

SPRING

$10.99

$

In Stock, Qty 20+

0

12

Simplicity 1656960SM

BELT, V, Arbor Drive

$62.99

$

In Stock, Qty 7

0

13

Simplicity 1656144ASM

BLADE, 42" Mower

$33.99

$

In Stock, Qty 9

0

14

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

15

Simplicity 2820676SM

CAPSCREW, Hex Hd., 7/16-14 x 1
(Superseded to 1920676SM)

$5.49

$

In Stock, Qty 20+

0

16

Simplicity 1651520SM

ARM, Adjusting

$86.99

$

Usually ships in 2-12 days

0

17

Simplicity 2157215SM

EYEBOLT

$

$

Not available

18

Simplicity 2819262

NUT, Hex, Jam, 1/2-20

$

$

Not available

19

Simplicity 2807731

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

20

Simplicity 2108717SM

SPACER

$18.99

$

In Stock, only 2 left!

0

21

Simplicity 1656916SM

WASHER, Spring

$7.99

$

In Stock, Qty 20+

0

22

Simplicity 1704277SM

DECAL, Danger
(Superseded to 7101665YP)

$14.99

$

In Stock, only 2 left!

0

23

Simplicity 2174845

DECAL, Belt Installation

$

$

Not available

24

Simplicity 1704276SM

DECAL, Danger
(Superseded to 7101665YP)

$14.99

$

In Stock, only 2 left!

0

25

Simplicity 1729274SM

RACE, Inner

$

$

Not available

26

Simplicity 1656927SM

WASHER, Spline

$8.99

$

In Stock, Qty 20+

0

27

Simplicity 1657682SM

BUSHING

$12.99

$

Usually ships in 2-12 days

0

28

Simplicity 1700229SM

SHIELD, Grass

$11.99

$

In Stock, Qty 20+

0

29

Simplicity 1655777SM

ADAPTOR, Blade

$27.99

$

In Stock, Qty 20+

0

30

Simplicity 1657528SM

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1685415SM

LEVER ASSY, Idler
(Superseded to 1685415YP)

$70.99

$

Usually ships in 2-12 days

0

32

Simplicity 2817421

NUT, Hex, Jam, 3/8-16

$

$

Not available
