Compatibility
This part will fit the following 9 machines. Confirm this part works with your model, and view the detailed model diagrams and repair help we have to offer.
SimplicitySimplicity 7014 S (1690338) - Simplicity 42" Garden Tractor, 14hp42" Cover, Drive & Bail Group
AGCOAGCO 912 H (1691131) - AGCO 42" Garden Tractor, 12hp42" Mower Deck-Cover, Drive & Bail Group
SimplicitySimplicity 7112 (1690484) - Simplicity 42" Garden Tractor, 12hp42" Rotary Mower - Cover, Drive & Bail Group
AGCOAGCO 1816 H (1691509) - AGCO Garden Tractor, 16hpEngine Group (12.5 & 16HP)
SimplicitySimplicity 1691773 - Simplicity GTH 48" Garden Tractor, 16hpEngine Group (16HP)
Description

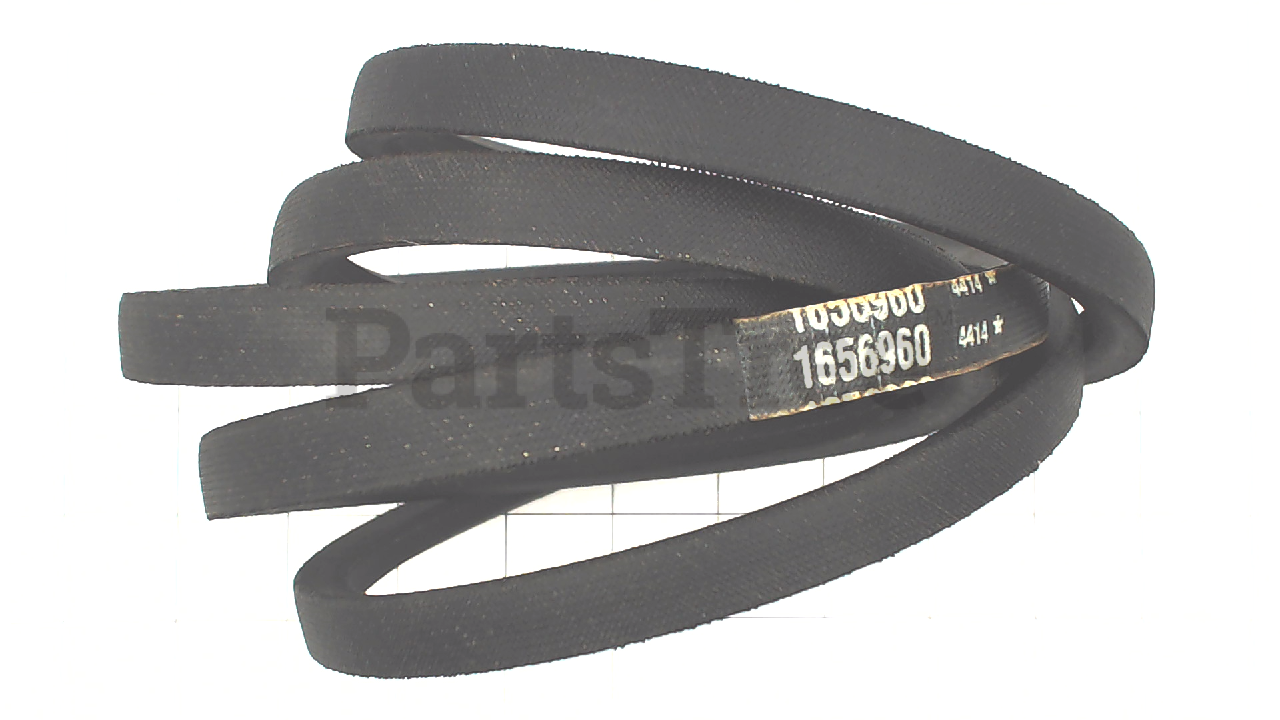

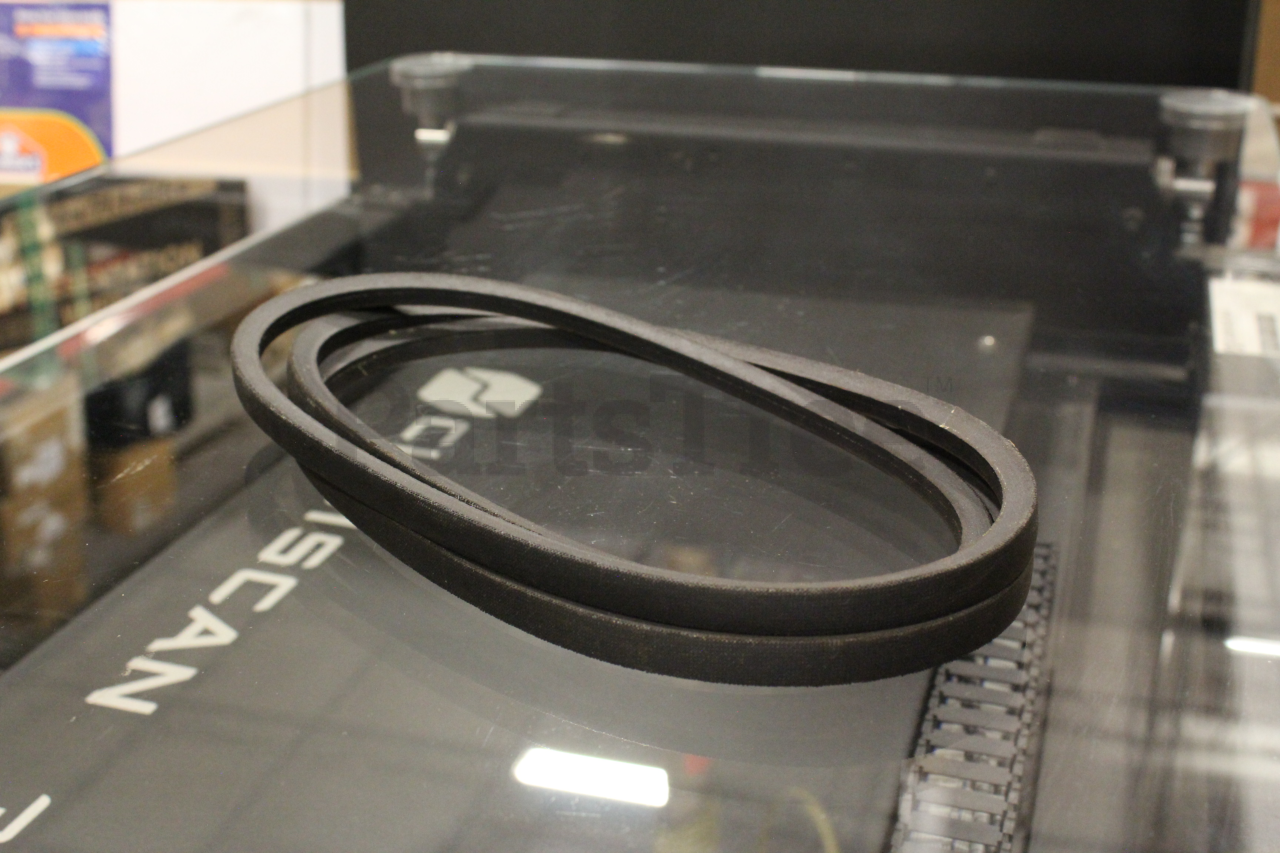

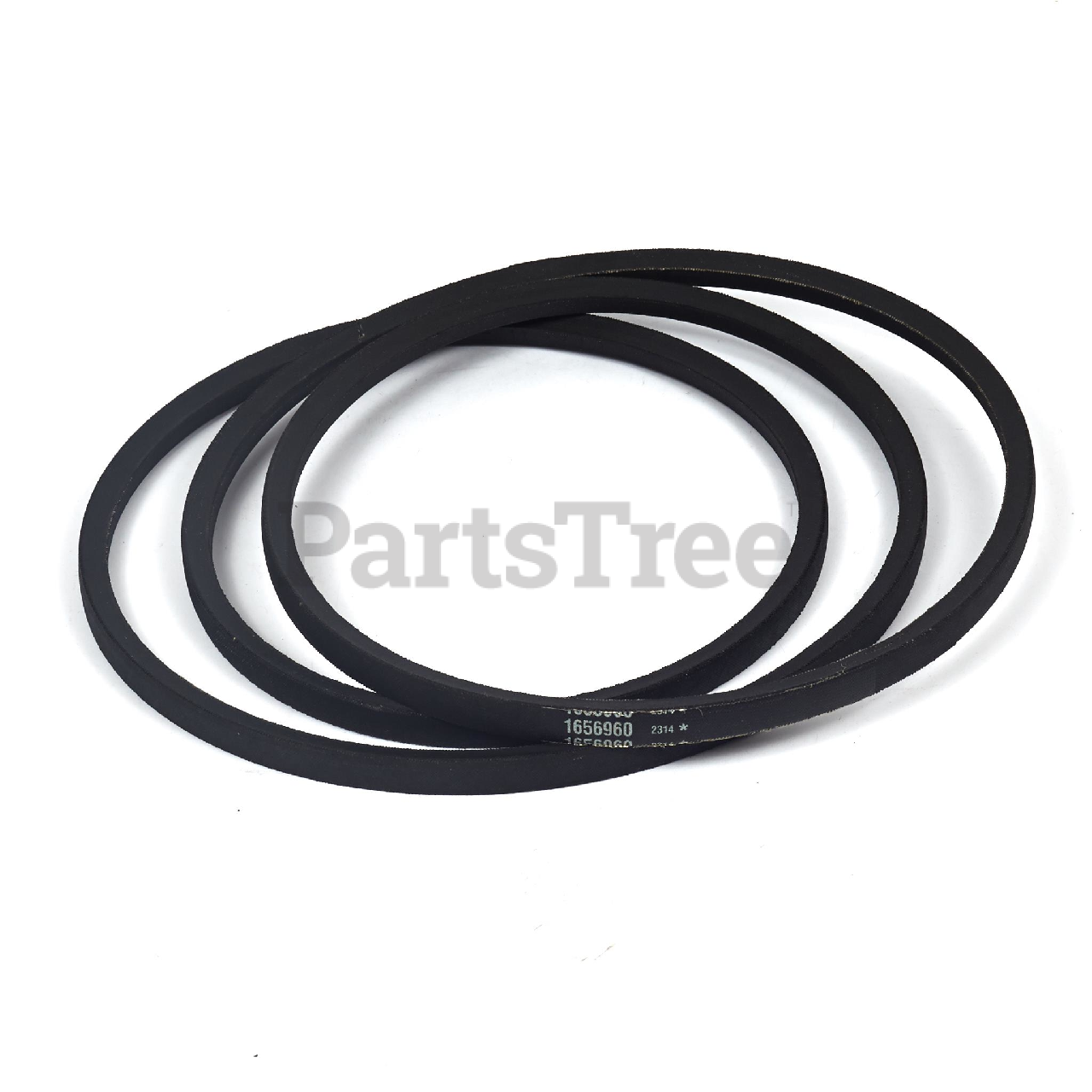

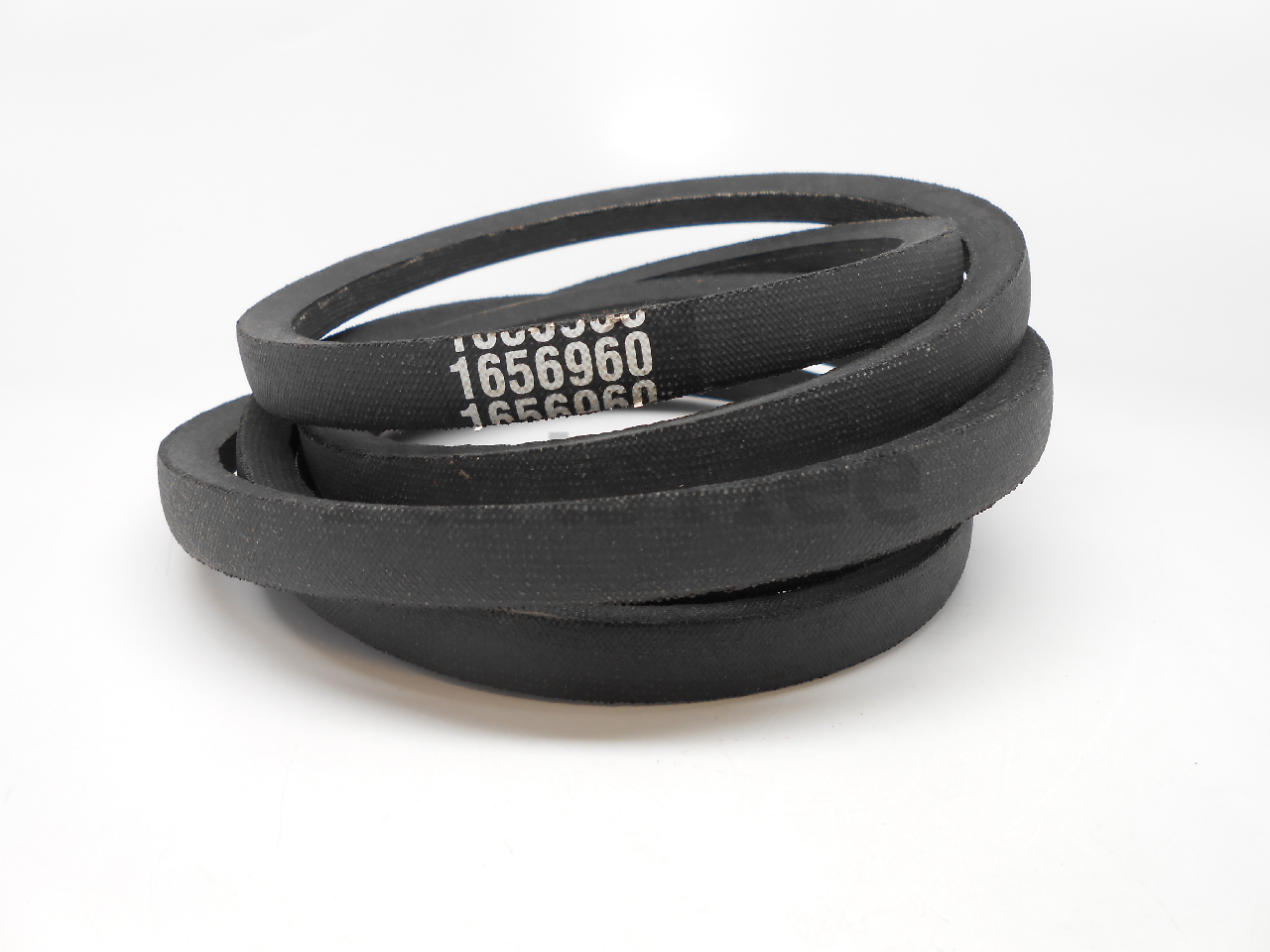

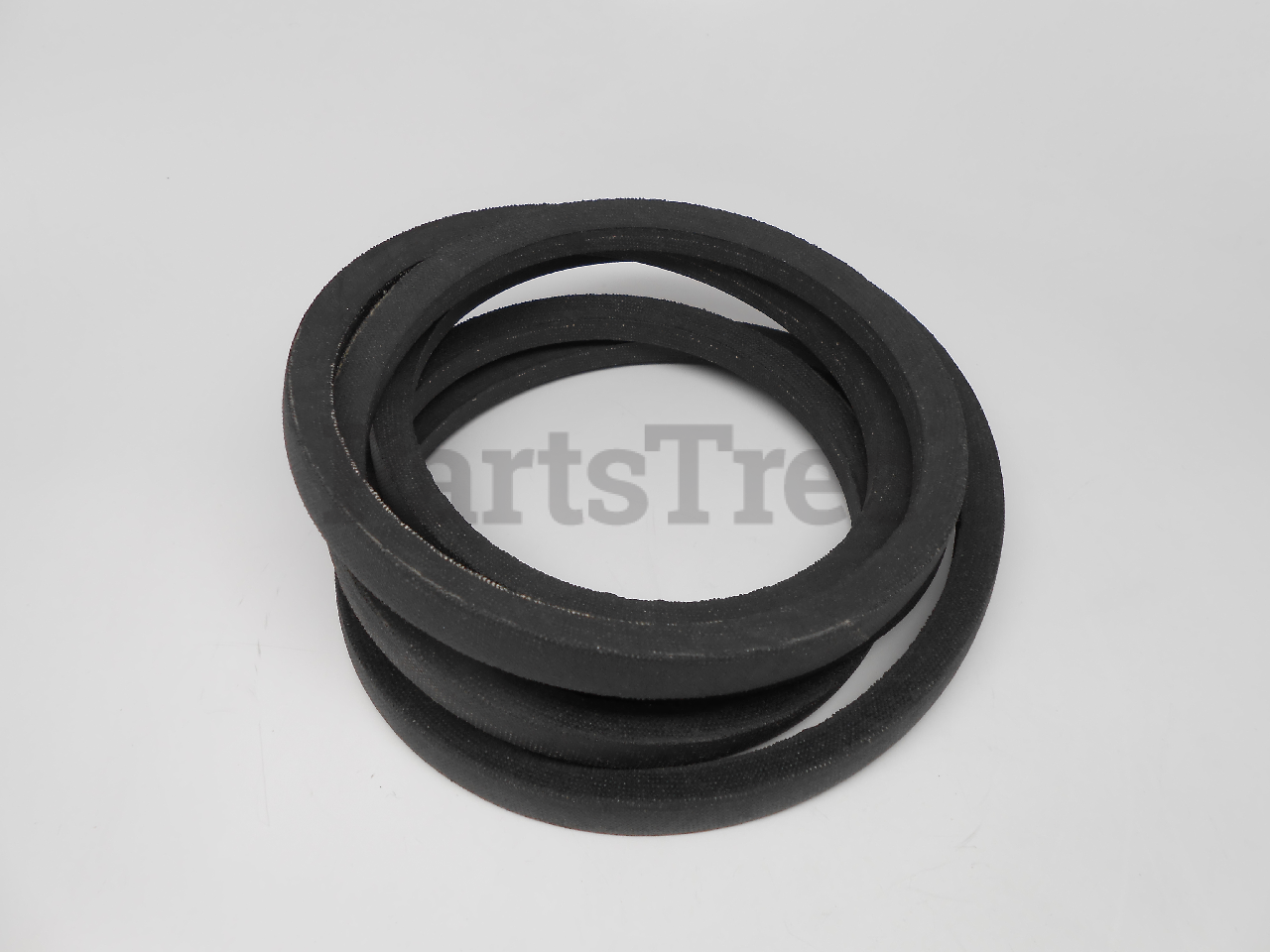

The purpose of the Belt is to drive smooth movement within your equipment. Belts are most often found within the engine and cutting deck. The belt length and shape varies based on the system, but most are V-shaped or Cogged. The most common signs that a belt needs to be replaced are the appearance of a shiny, glazed, or burned spot on the side wall or if the belt appears brittle or shows small cracks. Before removing a belt during your repair task, make note of its exact routing around the pulley system.
