1691360 - Simplicity 46" Snow Thrower Attachment 46" Snowthrower, Spout Group Parts Diagram

46" Snow Thrower Attachment

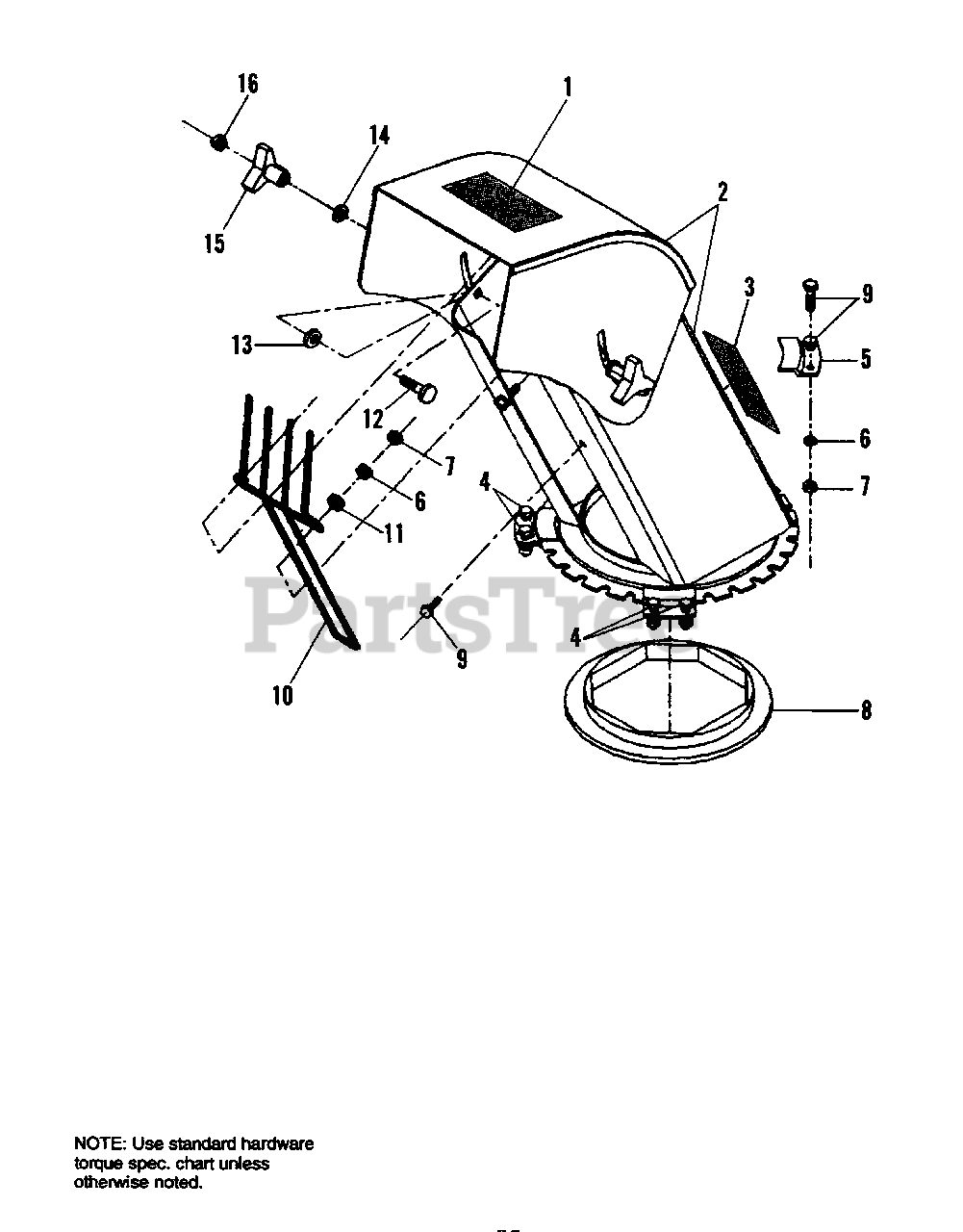

46" Snowthrower, Spout Group Parts Diagram

  • Title

1

Simplicity 1701102

DECAL, Danger

Note: (Discharge Chute)

$

$

Not available

2

Simplicity 1701068SM

CHUTE & DEFLECTOR ASSY. w/Knobs & Decals

Note: (Incl. Ref. Nos. 1, 3 & 12-16)

$

$

Not available

3

Simplicity 1701101

DECAL, Warning

Note: (Safe Operation)

$

$

Not available

4

Simplicity 1921958SM

CAPSCREW, Hex Hd., 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1701071SM

PLATE, Retaining

$7.99

$

Usually ships in 2-12 days

0

6

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

7

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

8

Simplicity 1713719SM

RING, Nylon

$24.99

$

Usually ships in 2-12 days

0

9

Simplicity 1923341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

10

Simplicity 1701070SM

GUARD, Stone

$45.99

$

Usually ships in 2-12 days

0

11

Simplicity 1918265SM

WASHER, Plain, S.A.E. 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1960223SM

BOLT, Carriage, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, only 1 left!

0

13

Simplicity 2818267

WASHER, Plain, S.A.E. 7/16

$

$

Not available

14

Simplicity 1918266SM

WASHER, Plain, S.A.E. 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 1670578SM

KNOB

$13.99

$

Usually ships in 2-12 days

0

16

Simplicity 1923362SM

NUT, Hex Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0
